Red Painting PLC Control By Touch Screen In Roll Welded Wire Mesh
Machine
Welded Wire Mesh Machine Introduction:
1. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and
integrated electric circuit, more intelligent and rational, once
pressing, and separate welding.
2. The line wire is fed from coils; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
4. At the same time, the machine is also equipped with automatic cutting mesh machine, when the machine
finishes the mesh length according to the setting parameters, the
mesh will be cut by the cutting mesh machine automatically.
5. The welding speed is fast and it is easy to learn and operate.
Only two operators are enough.
6. Finished products are both roll mesh and panel mesh ok.
Welded Wire Mesh Machine Technical Parameters:
| No. | Item | Specification |
| 1 | Welding Wire Diameter | Φ2.5-6.0(mm) |
| 2 | Cross Wire Space | 50-250mm |
| 3 | Line Wire Space | 50-250mm |
| 4 | Max Mesh Width | 2500mm or Customized |
| 5 | Max mesh length | panel mesh length:3000mm;roll mesh length:30m |
| 6 | Number of Electrodes | 24/48 or Customized |
| 7 | Line Wire Feeding Way | Coil |
| 8 | Cross Wire Feeding Way | Pre-cut Wire |
| 9 | Control Way | PLC+Touch Screen |
| 10 | Welding Speed | 0-80times/min |
| 11 | Rated Voltage | 380V,50HZ,Three phase or customerized |
| 12 | Rated Power | 125KWA*4/6(Water Cooling System)or Customized |
| 13 | Main Motor | 4.0KW (Electromagnetic Brake Motor) |
| 14 | Welding Time | 10ms-100ms |
| 15 | Welding Way | By Control Silicon Control Electric Resistance Weld |
| 16 | Pressure Mode | Adjustable Spring Pressure |
Welded Wire Mesh Machine composition of whole production line
| No. | Name of each part | Quantity/Set |
| 1 | Main Mesh Welding Machine | 1 |
| 2 | Line Wire Straightening Device | 1 |
| 3 | Cross Wire Automatic Falling Hopper | 1 |
| 4 | Operation Control Cabinet | 1 |

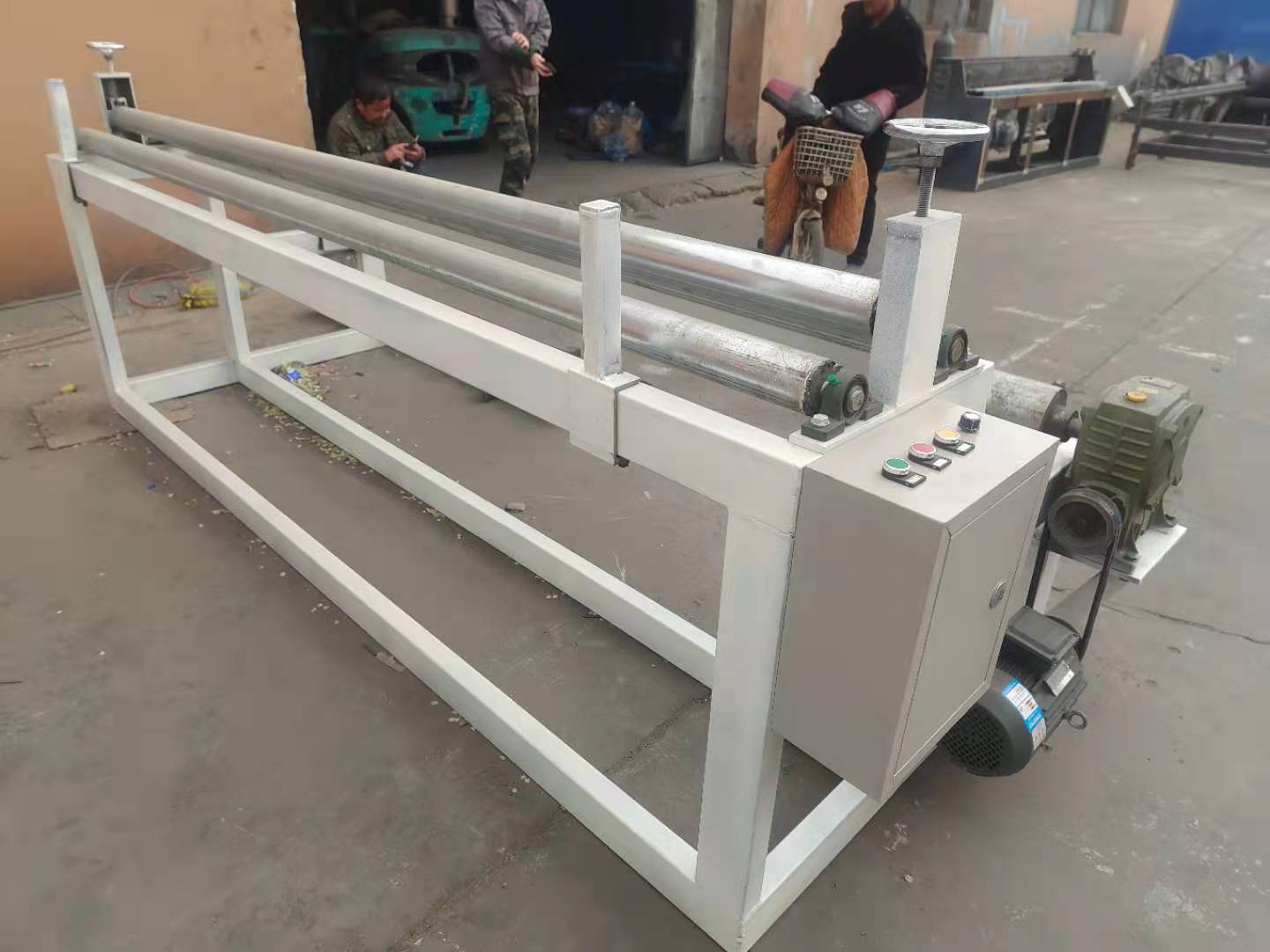

| 5 | Automatic rolling Mesh Machine(chosen according to your practical
needs) | 1 |
| 6 | Wire Straighteng and Cutting Machine | 2 |
| 7 | Level Spare Parts Box | 1 |
| 8 | Water Cooling System | 1 |
Welded Wire Mesh Machine Applications:
Construction mesh, road mesh, fence protection etc.
Welded Wire Mesh Machine Packing:
Welded Wire Mesh Machine Photos:
