5.5kw Cross Wire Hopper Load 100kg Wire PLC Mesh Panel Welding Machine

Mesh Panel Welding Machine Introduction:

The mesh panel welding machine is made of thick plate steel. Which is more strong and stable when machine is working. The mesh panel welding mahcine is used to make wire mesh panel. The range of wire diameter from 3.0mm to 6.0mm. The longitudinal wire is pre-straighten and pre-cut. Need manual to feed. And the cross wire is pre-straighten and pre-cut. The cross wire hopper is controlled by stepping motor. The cross wire hopper device can load 100kg material. The mesh panel welding machine is suitable for galvanized wire,low carbon steel wire.stainless steel wire.

Mesh Panel Welding Machine Features:

1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)

2. The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.

3. The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.

4. Pure red copper (upper) and chromised bronze (lower), durable.

5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

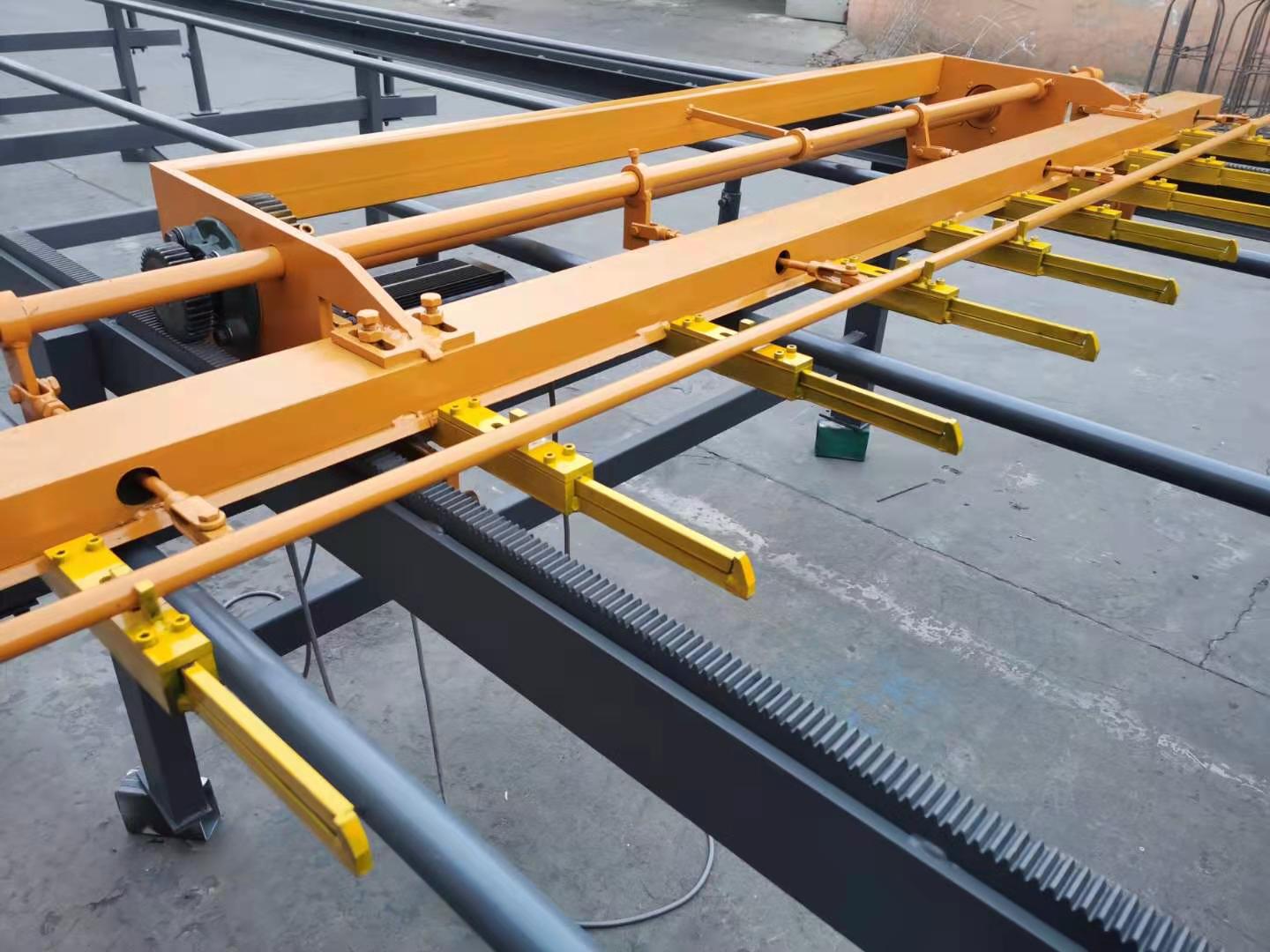

7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.

8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.

9. The longitude wires and cross wires should be pre-straightened and pre-cut.

10. The longitude wires are inserted into the slot tunnels manually.

11. The cross wire are put into the cross wire feeder, which is controlled by step motor and SMC (Japan) air cylinders, automatic falling.

Mesh Panel Welding Machine Technical Parameters:

Mesh Panel Welding Machine Application:

railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding

Mesh Panel Welding Machine Photos:
