Line Wire Coil Feeding Roll Length 100m Steel Wire Mesh Roll Welding Machine

Steel Wire Mesh Roll Welding Machine Introduction:

1. The Steel Wire Mesh Roll Welding Machine adopts imported PLC Programmable Control System and touch screen operation surface to achieve automatic longitudinal wire feeding from coil wire, automatic welding, automatic pulling mesh, automatic winding mesh.
2. The longitudinal wire is feed from coil wire automatic. The weight of coil wire max 300kg put into payoff wire stands. Save labor cost and labor strength. The longitudianl wire through the straighten device. make sure the steel wire straigth. The cross wire is pre-straighten and pre-cut by wire straightening and cutting machine. The cross wire is put into cross wire hopper device. The cross wire hopper device can load 150kg steel wires. The cross wire falling is controlled by stepping motor.
3. When the longitudianl wire is under the welding electrodes. You could set the parameters input by touch screen. Such as: input cross wire mesh size, width of mesh, welding speed per min and length of roll mesh. Very easy to operate and master. After input all the parameters. Press the button in the control cabinet. The welded roll mesh making machine start to work.

4. The speed of rolling mesh is adjustable. When finished one roll mesh. Workers to take out the roll mesh. The suitable material is for galvanized wire, black iron wire.

Steel Wire Mesh Roll Welding Machine Technical Parameters:

Steel Wire Mesh Roll Welding Machine Applications:

Used in garden fence, roof construction,road construction, wall building.

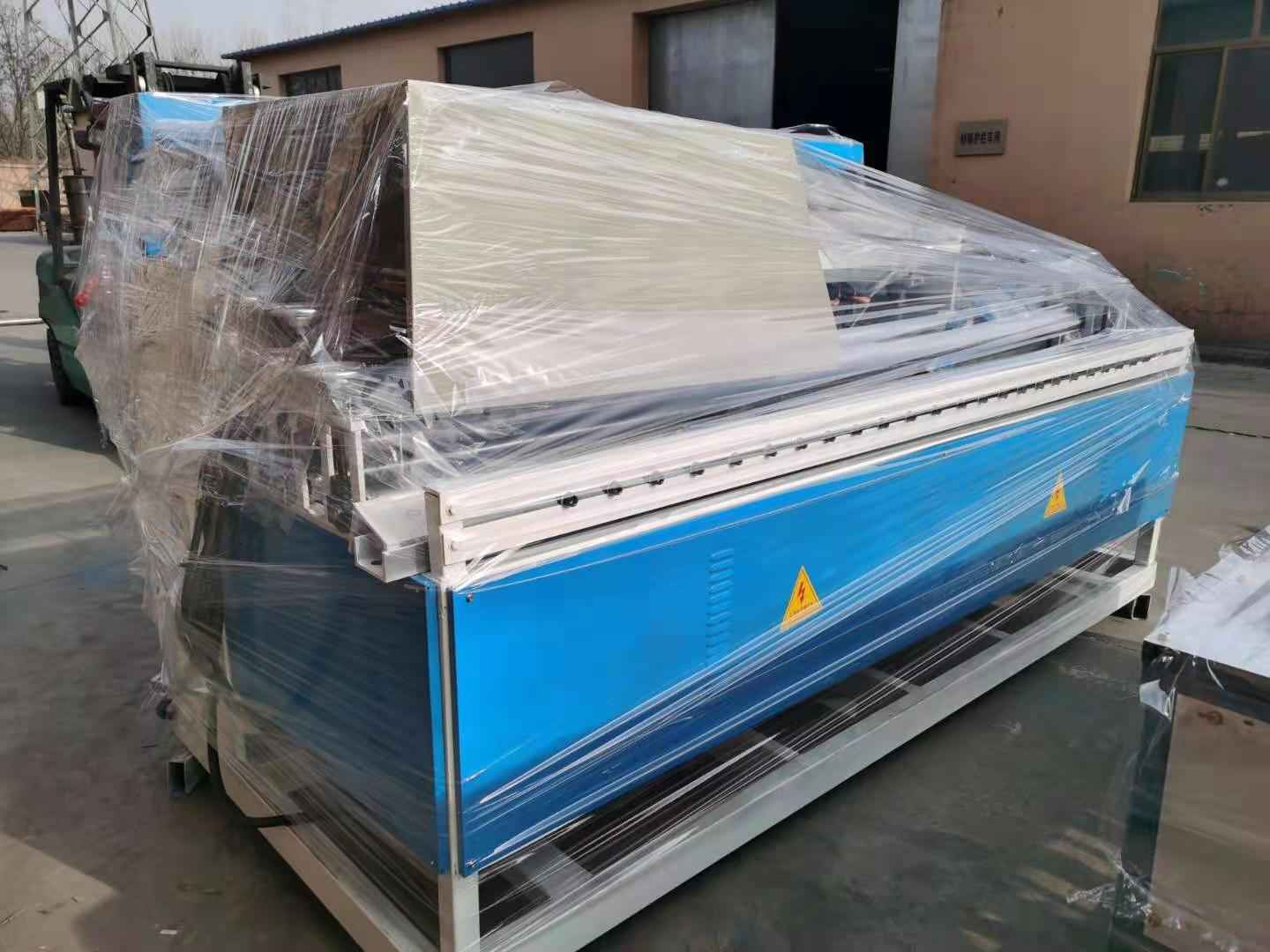

Steel Wire Mesh Roll Welding Machine Packing:

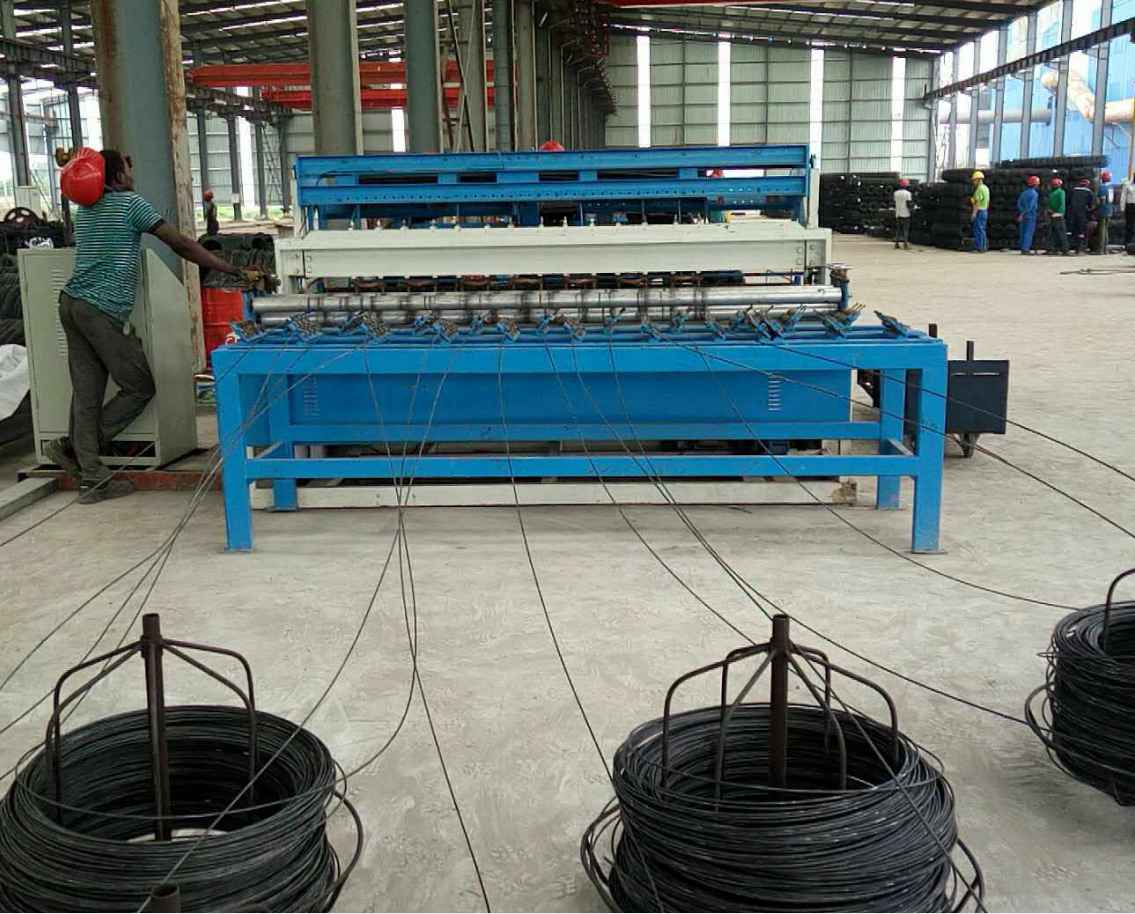

Steel Wire Mesh Roll Welding Machine Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
