Mesh Width 7 Feet Hole Size 1 Inch Full Automatic Welded Wire Mesh
Machine
Welded Wire Mesh Machine Introduction:
Welded wire mesh machine, also called, welded roll mesh machine,
electric welded mesh machine. Our roll welding wire mesh machine is
featured by wire coil feeding and invert speed control.It is used
to make wall mesh,construction mesh,animal cage, mining etc.
Welded Wire Mesh Machine Features:
| 1 | Both of the longitude wire and cross wire are fed from wire coils
automatically. |
| 2 | The raw material is suitable for low-carbon steel wire (black wire)
and galvanized wire. |
| 3 | The middle cutter and sider cutters can be adjusted randomly to
make two mesh rolls at same time. |
| 4 | The welding time and welding current can be adjusted on the control
panel to adjust the welding degree. |
| 5 | The welding transformers have 8 degrees and can be adjusted for
different wire diameters. |
| 6 | The mesh roll length can be set by counter switch on the control
panel. |
Welded Wire Mesh Machine Technical Parameters:
| Model | DP-DNW-2 | DP-DNW-3 | DP-DNW-4 |
| Wire diameter | 0.65-1.2mm,0.8-2mm | 1-2.5mm,1.3-2.8mm | 1-3.5mm |
| Line wire space | 1/2”, 1”, 2”
(12.5mm, 25mm, 50mm) | 1”,2”,3”,4”,5”,6” (25,50,75,100,125,150mm) | 1”-6” (25mm-150mm) |
| Cross wire space | 1/2”, 1”, 2”
(12.5mm, 25mm, 50mm) | 1/2”, 1”, 2”
(12.5,25,50,75,100,125mm) | 1”-6” (25mm-150mm) |
| Mesh width | 1.2m,1.5m,1.8m,2m
4ft,5ft,6ft,7ft | 1.5m,1.8m,2m,2.5m
5ft,6ft,7ft,8ft | 1.2m,1.5m,1.8m,2m
4ft,5ft,6ft,7ft |
| Main motor | 2.2kw, 4kw, 5.5kw | 5.5kw, 7.5kw | 5.5kw,7.5kw |
| Welding transformer | 60/70kva*4,5,6,7pcs | 85/100kva*5,6,7,8pcs | 125kva*4,5,6,7pcs |
| Welding speed | Max.120-180times/min | Max.60-100 times/min | Max.60-100times/min |
| Weight | 2T/2.5T/2.8T/3.2T | 2.8T/3.2T/3.5T/4T | 3T,3.5T,4T,4.2T |
Welded Wire Mesh Machine Applications:
1. construction industry, most of the small wire welding net is
used for wall insulation and crack prevention engineering, inside
(outside) wall plastering net, specifications of 0.3-0.9mm wire
diameter, mesh is 1/2, 3/4, 1, 2 inches. The wire of the inner wall
insulation welding mesh: 0.3-0.5mm, the wire diameter of the outer
wall insulation: 0.5-0.7mm.
2. breeding industry, fox, mink, chicken, duck, rabbit, pigeon and
other poultry breeding for enclosure, the use of 2mm wire diameter,
1 inch mesh, special specifications can be customized.
3. agriculture, crop enclosure, with a circle of welding mesh, corn
inside, commonly known as corn mesh, ventilation performance is
good, save an area. The wire diameter is thick.
4. industrial, used for filtering, isolation net bar.

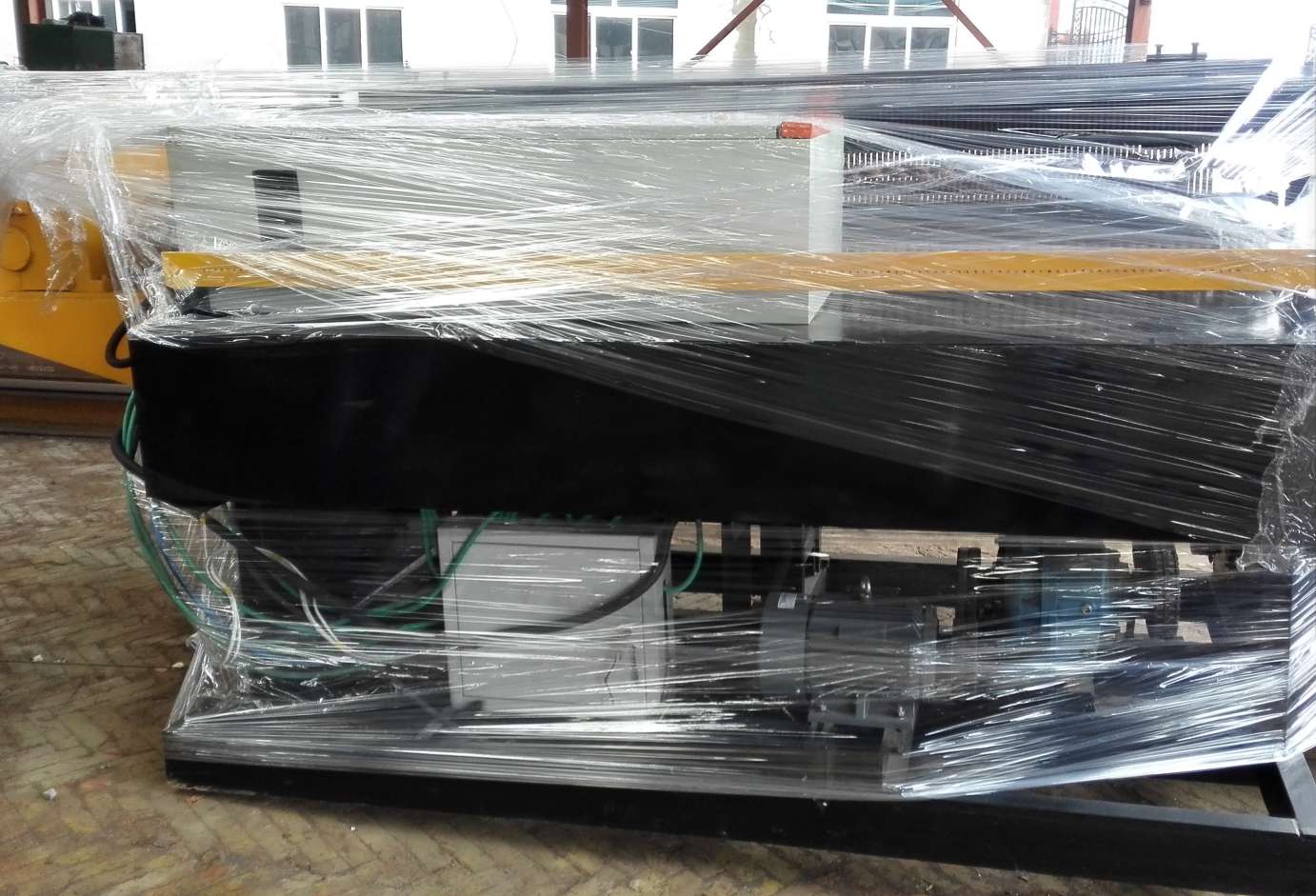

Welded Wire Mesh Machine Packing:
Welded Wire Mesh Machine Photos:
