    0.65mm Hot Dip Welded Wire Mesh Machine , DNW 1 Wire Cage Making Machine

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-DNW-1
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    0.65mm Hot Dip Welded Wire Mesh Machine , DNW 1 Wire Cage Making Machine

    Mesh Size 1/2 Inch Hot Dip Galvanized Wire Chicken Cage Welded Wire Mesh Machine


    Welded Wire Mesh Machine Introduction:


    Welded wire mesh machine, also called, welded roll mesh machine, electric welded mesh machine. Our roll welding wire mesh machine is featured by wire coil feeding and invert speed control.It is used to make wall mesh,construction mesh,animal cage, mining etc. To fulfill the ever-growing demands of our esteemed clients, we manufacture and supply welded wire mesh machine. These machines are used for making welded wire mesh rolls for meeting diverse requirements of market. Our machines are available in different models and sizes at most competitive prices with excellent quality.


    Welded Wire Mesh Machine Features:


    1. Both of line wire and cross wire are fed from wire coils automatically.

    2. Raw material can be black wire, galvanized wire or stainless steel wire.

    3. One time two or three mesh rolls can be produced.

    4. The mesh roll length can be set by counter switch on the control panel.

    5. The welding transformers can be adjusted for different wire diameters.

    6. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.

    7. Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.

    8. Water cooling transformer is used for hot area

    9. Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.

    10. Suitable material: hot dip galvanized wire.electric galvanized wire, black iron wire.


    Welded Wire Mesh Machine Technical Parameters:


    TypeDX-DNW-1DX-DNW-2DX-DNW-3
    Wire diameter0.4-0.65mm0.65-1.8/0.8-2mm1.2-2.5/1.2-2.8mm
    Aperture/pitch1/4", 1/2"1/2",1",2",3",4"1",2",3",4"
    Mesh widthMax.1.2m,1.5m,2mMax.1.2m,1.5m,2mMax.1.2m,1.5m,2m,2.5m
    Motor2.2kw,4kw2.2kw,4kw4kw,5.5kw,7.5kw
    Welding speedMax.75 rows/minMax.120-180 rows/minMax.80-120 rows/min
    Transformer50kva*360kva*4/5/785kva/100kva*5/6/7/8
    Weight1.5T2T;2.5T2T;2.5T;3T;3.5T

    Welded Wire Mesh Machine Applications:


    Welded wire mesh is widely used in industry, agriculture, aquaculture, construction, transportation, mining and other aspects.
    Such as machine protective cover, animal and livestock fence, flower and wood fence, window fence, passageway fence, poultry cage, egg basket and home office food basket, paper basket and decoration.


    Welded Wire Mesh Machine Packing:

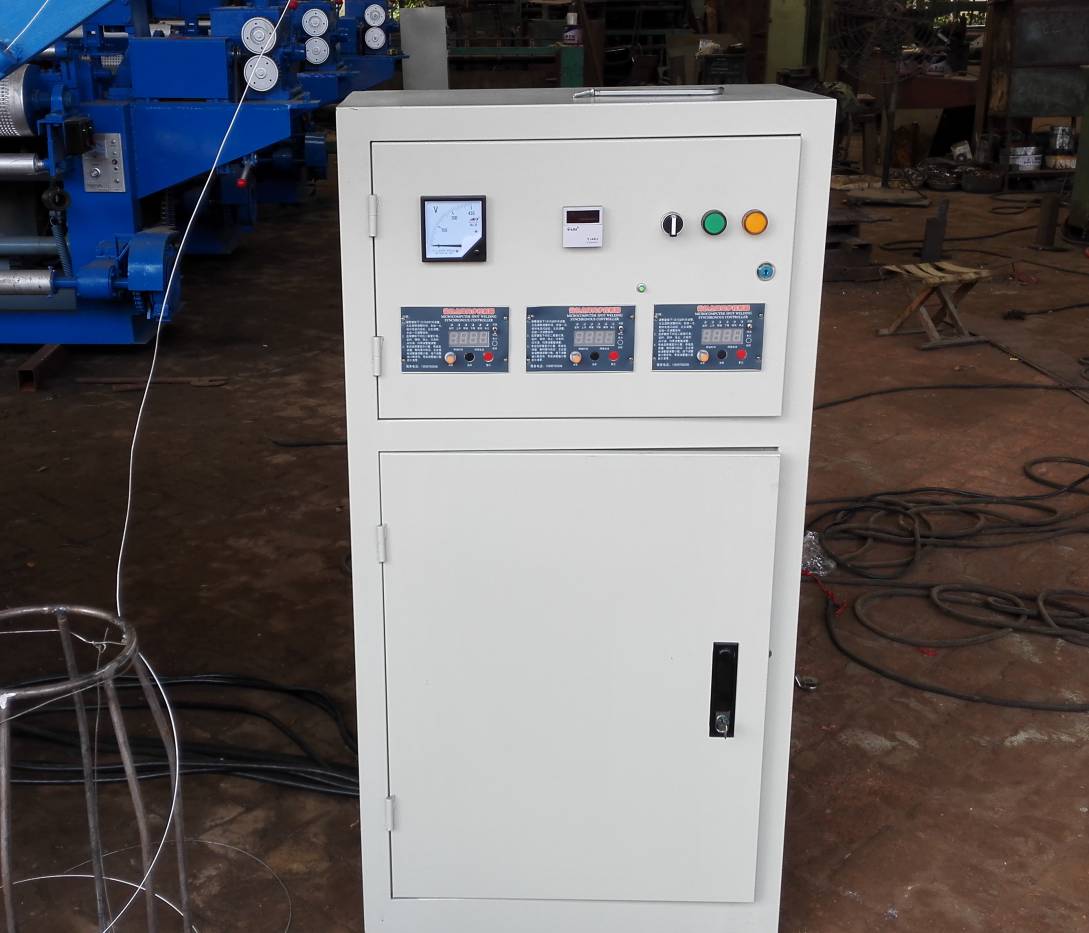

    Welded Wire Mesh Machine Photos:
