    75 Times Servo Motor High End 220V Fence Panel Machine

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-GWC-2500B
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    75 Times Servo Motor High End 220V Fence Panel Machine

    Servo Motor Automatic Drop Mesh High-End Wire Mesh Fence Panel Welding Machine


    Wire Mesh Fence Panel Welding Machine Introduction:


    The Wire Mesh Fence Panel Welding Machine is specially designed to make the fence mesh. The bending machine is connected with the mesh welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.Finally the pulling mesh car will drop the fence mesh panel automatically after finished bending.


    Wire Mesh Fence Panel Welding Machine Features:


    1. The wire mesh fence panel welding machine is made of thickness iron plate 30mm. The machine structure is very strong and stable.


    2. The wire Mesh fence Panel Welding Machine adopts cent-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.


    3. The wire mesh fence panel welding machine can make different mesh size according to your required mesh size. The line wire space from 50mm to 300mm, And the cross wire space from 50mm to 300mm. The line wire space is adjustable by measure the distance by ruler. The cross wire space is adjustable by set on the touch screen. input the cross wire mesh size and quantity of mesh size. Very easy and convenient to operate.


    4. The bending mahcine will bending the mesh automatically when the fence mesh is under the bending machine. After bending. The pullig mesh car will pull out the fence mesh automatically. Then drop the fence mesh automatically. This is fully automatic complete operation.


    5. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The mesh pulling car will pull out the fence mesh panel automatically.And lands on the collect mesh car automatically.


    6. The suitable material for the 3D welded fence mesh panel welding machine: low carbon wire, galvanized wire.


    Wire Mesh Fence Panel Welding Machine Technical Parameters:


    ModelDX-GWC-2000BDX-GWC-2500BDX-GWC-3000B
    Wire diameter3.0-6.0mm3.0-6.0mm3.0-6.0mm
    Width of mesh2000mm2500mm3000mm
    Mesh size50-300mm(adjustable)50-300mm(adjustable)50-300mm(adjustable)
    Length of meshMax 3000mmMax 3000mmMax 3000mm
    Welding spots40PCS50PCS60PCS
    Welding transformer160KVA*5pcs160KVA*8pcs160KVA*10pcs
    Welding speed50-75 times per min50-75 times per min50-75 times per min
    Control systemPanasonic PLCPanasonic PLCPanasonic PLC
    Production capacity60pcs per hour60 pcs per hour60 pcs per hour
    Motor power5.5KW7.5KW7.5KW
    Weight9.5T10.5T11T
    Dimension14*2.8*1.8m14*3.2*1.8m14*4.2*1.8m
    Labor requiredOne workerone workerOne worker
    Power consumption7-9kw/h7-10kw/h7-10kw/h

    Wire Mesh Fence Panel Welding Machine Application:


    Wire mesh fence is suitable for park, lawn, zoo, lake, road, and residential isolation. The wire mesh fence panel is also applicable to the safety protection, decoration and beautification of municipal engineering, roads, factories, development zones, garden squares and other places.

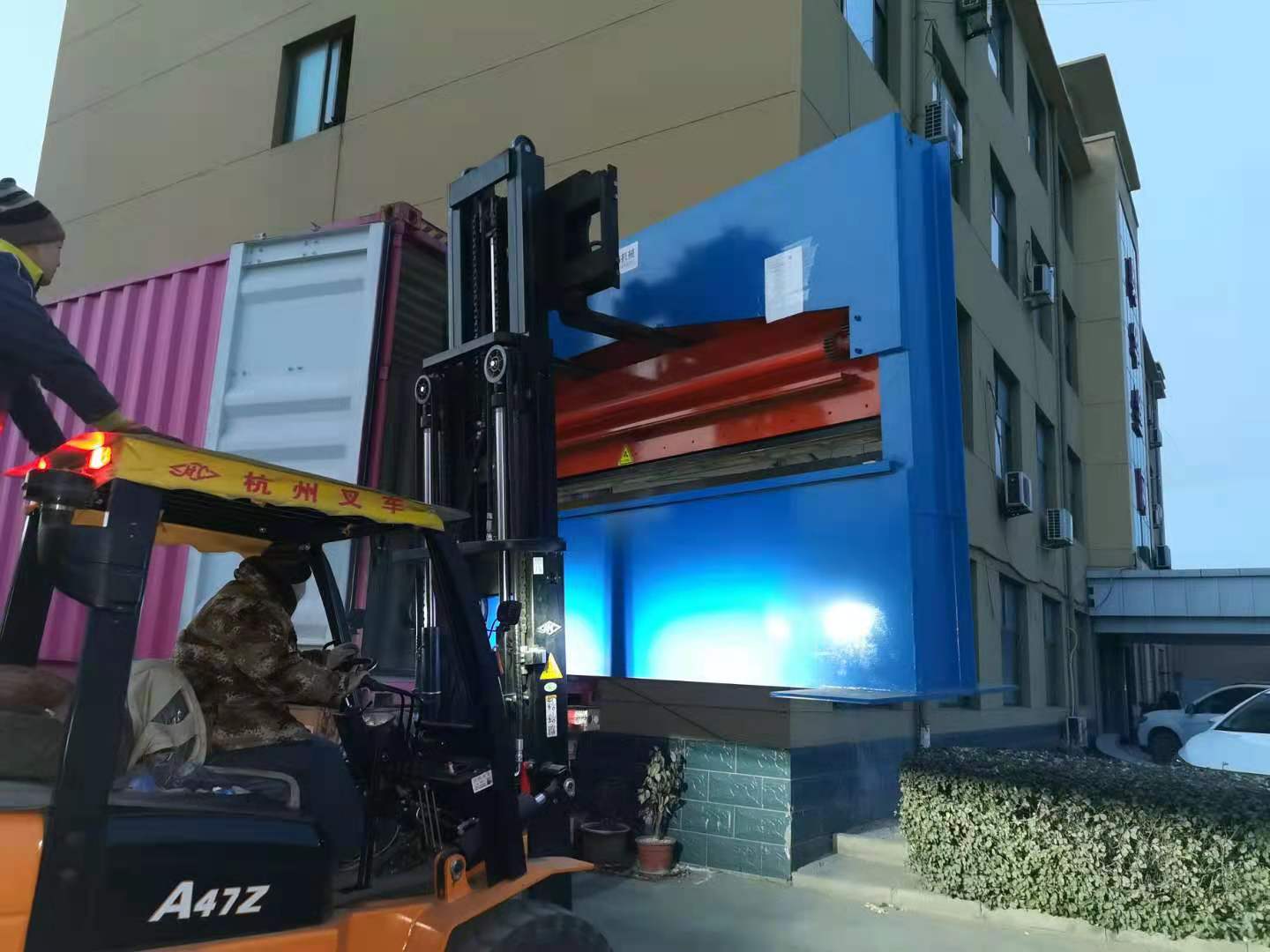

    Wire Mesh Fence Panel Welding Machine Packing:



    Wire Mesh Fence Panel Welding Machine photos:
