Fence Size 2.5*3m Railway Protection Welded Curved Fence Mesh Welding Machine

Welded Curved Fence Mesh Welding Machine Introduction:

The Welded Curved Fence Mesh Welding Machine is our latest machine to make curved welded fence mesh panel. The thickness of iron plate is 30mm, have strong machine body structure to make sure machine working stable and smooth. The biggest advantage is that the Welded Curved Fence Mesh Welding Machine is full-automatic.Only need one worker to operate. Save labor cost and increase production capacity.

Welded Curved Fence Mesh Welding Machine Features:

1. The welded curved fence mesh welding machine is also called 3D fence mesh panel welding machine. The machine is mainly used to make curved fence mesh panel. This is one full-automatic machine. We are the first one to make this machine to make curved fence mesh panel.

2. The welded curved fence mesh welding machine adopts cent-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.

3. The line wire and cross wire are pre-cut by the wire straightening cutting machine, Then put the line wire in the hopper device. The line wire drop into mould automatically. The uniform wire deivice will push the line wire to the welding electrodes.Pre-cut cross wires auto feeding, The hopper adopts the stepping motor control, brake motor wheels and the cross wire will fallen automatically from the hopper.

4. The welding transformer adopts big power at 160KVA every one, which can ensure the welding quality in good condition and adopt water cooling system.

5. The welded curved fence mesh welding machine can make different mesh size according to your requirement. The line wire space from 50mm to 300mm, And the cross wire space from 50mm to 300mm. The line wire space is adjustable by measure the distance by ruler. The cross wire space is adjustable by set on the touch screen. input the cross wire mesh size and quantity of mesh size. Very easy and convenient to operate.

6. The welded curved fence mesh welding machine is equipped with bending machine can produce 3D fence panel automatically.

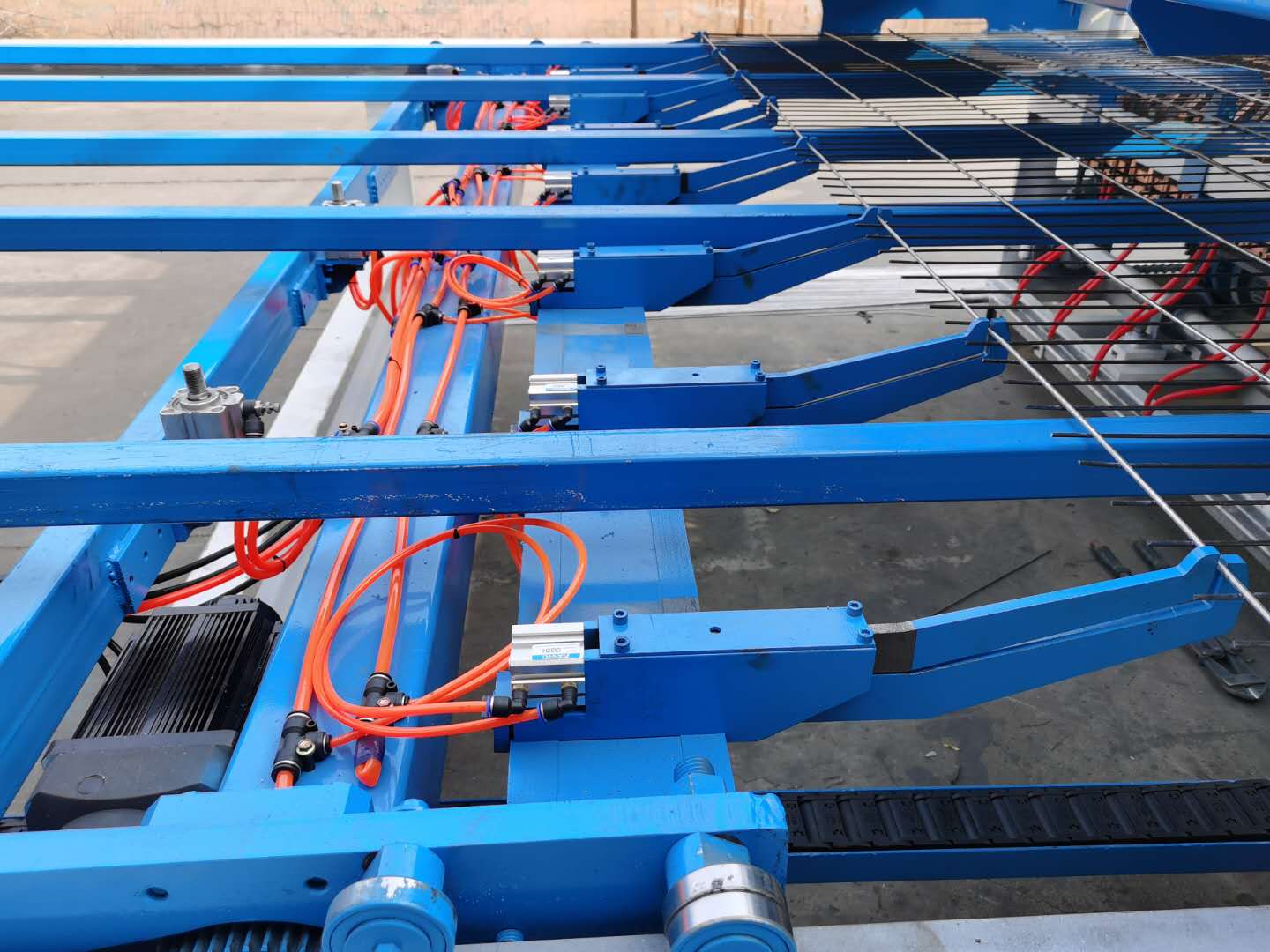

7. The bending mahcine will bending the mesh automatically when the fence mesh is under the bending machine. After bending. The pullig mesh car will pull out the fence mesh automatically. Then drop the fence mesh automatically. This is fully automatic complete operation.

8. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The mesh pulling car will pull out the fence mesh panel automatically.And lands on the collect mesh car automatically.

9. The welded curved fence mesh welding machine need power transformer at least 200KVA to supply machine running. And the distance from the power transformer to the welded curved fence mesh panel welding machine should be less than 100m.

10. The suitable material: galvanized wire, low carbon wire.

Welded Curved Fence Mesh Welding Machine Technical Parameters:

Welded Curved Fence Mesh Welding Machine Applications:

Curved fence mesh panel is widely used in municipal engineering, traffic, community, port, airport, expressway, highway, railway, test site, warehouse, site, zoo, stadium, industrial area, agricultural development zone and other places.

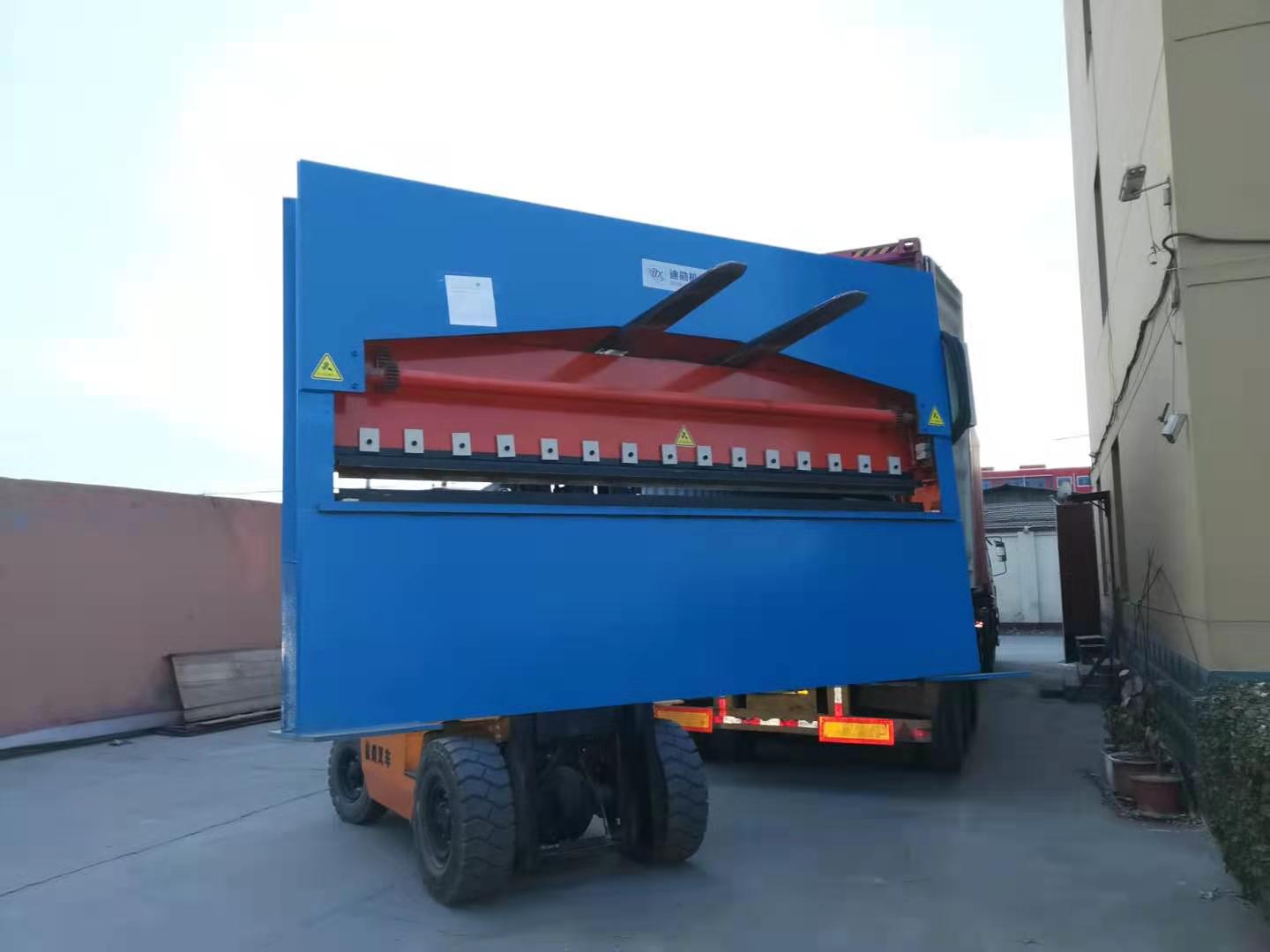

Welded Curved Fence Mesh Welding Machine Packing:

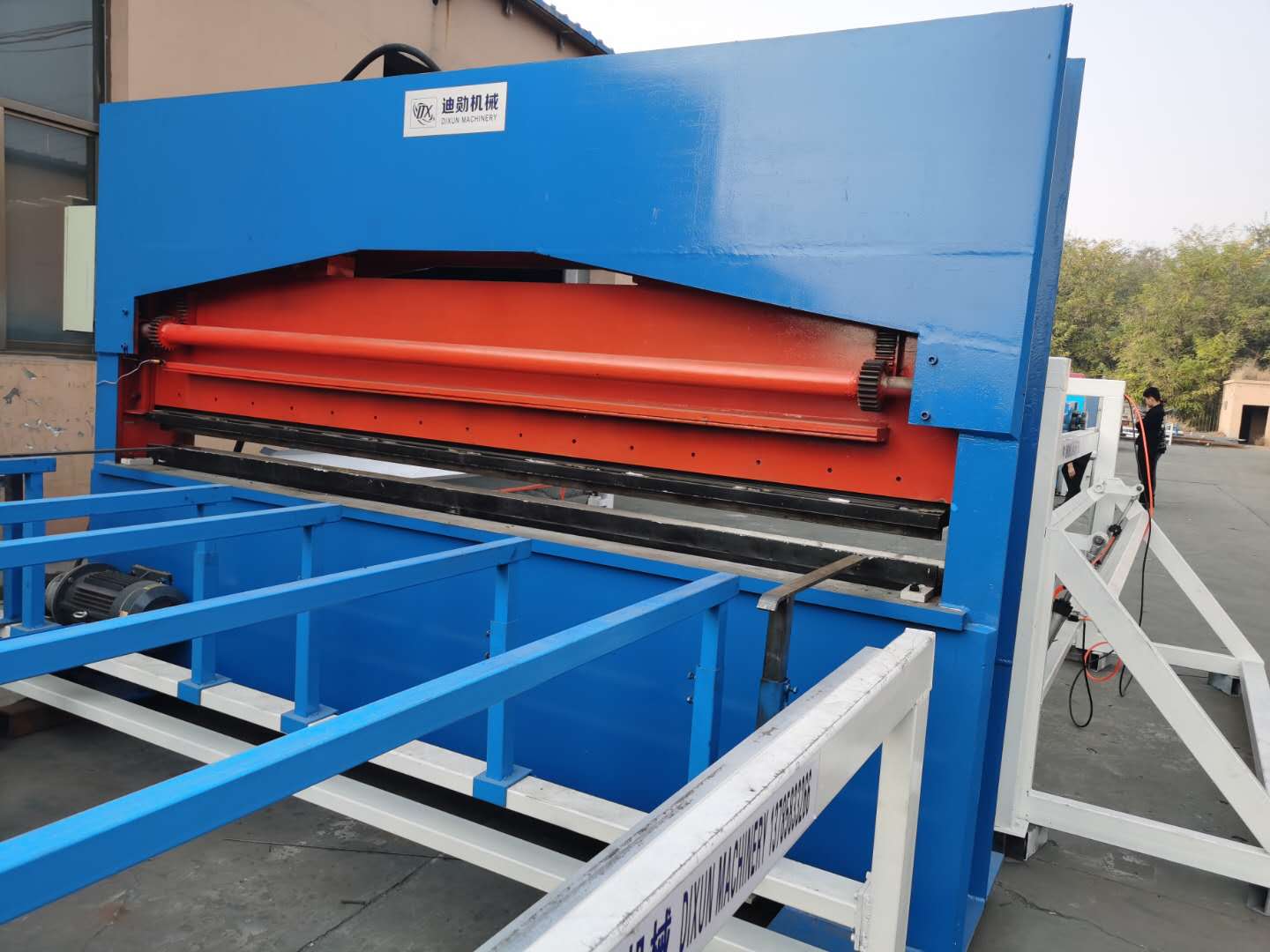

Welded Curved Fence Mesh Welding Machine Photos:
