Cross Wire Hopper Load 1.5T Mesh Width 3000mm Welded Mesh Panel Welding Equipment

Welded Mesh Panel Welding Equipment Introduction:

The welded mesh panel welding equipment is our latest research and delelopment equipment to make welded mesh panel. We are professional manufacturer in welded mesh panel welding equipment for many years since 2010. We export welded mesh panel welding equipment to 30 countries. Clients are very satisfied with our machine and after sales service.The welded mesh panel welding equipment adopts CNC synchronous control technology, welding time and divided control welding time are composed of PLC digital programming system, the input panel is touch screen or keyboard, the operation is more intelligent and reasonable.The welded mesh panel welding equipment adopts one-step compaction and sub-welding. The biggest advantage is that more than 30 mesh sizes between warp and weft can appear on the same mesh surface. A new type of high efficiency water-cooled welding transformer is used to expand the welding wire diameter. The welded mesh panel welding equipment need power transformer at least 200KVA to supply machine working.And the distance from the welded mesh panel welding equipment to the power transformer should be within 80m.

Welded Mesh Panel Welding Equipment Features:

1. The welded mesh panel welding equipment can weld wire diameter from 4mm to 9mm. The welding range is very big.

2. Each set of welding transformers is controlled by a separate microcomputer, which can be used for multiple welding under pressure at one time. The biggest advantage of this control is that more than 30 holes of different sizes can be found on the same mesh.
3. The welding electrode is made of high-quality Chromium Zirconium copper material, which has a long service life and reduces the production cost.
4. Line wire feeding mode: The line wire adopts manual feeding and automatic feeding function. Accurate position saves welding waiting time.
5. Cross wire feeding mode: cross wire hopper drop wire automatically blanking weft feeding, blanking position is accurate. The cross wire hopper can load max 1500KGS rebar. Save labor cost.The cross wire is controlled by the stepping motor. The stepping motor is also controlled by the control cabinet.
6. The drawing mode: servo motor reciprocating drawing, pneumatic tightening cross wire, to ensure the precise position of the drawing mesh.

7. Each of the welding transformer is 160KVA. And the welding transformer is water cooling. And the welding electrodes are also water cooling.

8. The suitable material: ribbed wire, round bar, galvanized wire.

Welded Mesh Panel Welding Equipment Technical Parameters:

Welded Mesh Panel Welding Equipment Applications:

The welded mesh panel is mainly used in coal mine roadway, concrete pavement, bridge deck, airport runway and construction

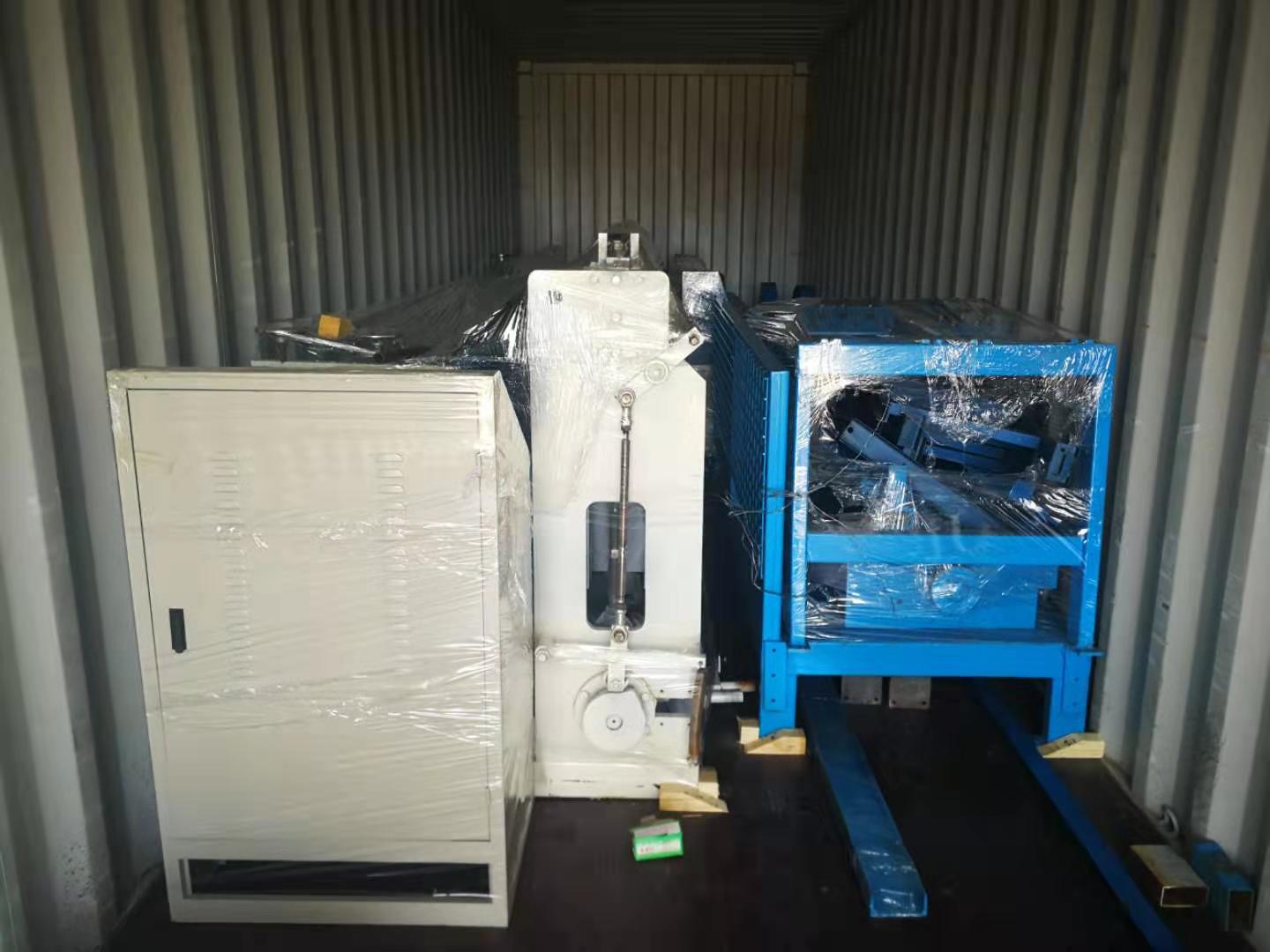

Welded Mesh Panel Welding Equipment Packing:

Welded Mesh Panel Welding Equipment Photos:
