Rolling Mesh Speed Adjust Black Iron Wire Roll Welded Wire Mesh Production Line

Roll Welded Wire Mesh Production Line Introduction:

The Roll Welded Wire Mesh Production Line is mainly used to make roll mesh, welded wire mesh, construction mesh, fence mesh.The Roll Welded Wire Mesh Production Line can make the length of mesh max up to 100m per roll. The Roll Welded Wire Mesh Production Line consist of below: payoff wire stands, line wire straighten deivce, main machine. control cabinet, pulling mesh device, rolling mesh machine. wire straightening cutting machine. This is one complete production line to make roll mesh. The Roll Welded Wire Mesh Welding Machine is very popular in many countries. Especially in Afirca countries.Clients are very satisfied with the machine quality and after-sale service.

Roll Welded Wire Mesh Production Line Features:

1. The Roll Welded Wire Mesh Production Line is made of thick steel plate and profile steel, high strength, high toughness. Main structure stable.

2. The line wire is feed from the coil wire automatic. the coil wire put into the payoff wire stands. One payoff wire stand can load max 300kg coil wires. The line wire through the line wire straighten deivce, to make the iron wire straighten.The cross wire is pre-straighten and pre-cut. The cross wire is feed by the stepping motor. The cross wire hopper can load 150kg wires.

3. The welding adopts separate-control technology, making the welding transformers working separately to reduce the capacity requirement of power transformer and reduce the impact current.

4. The circuit module is designed by our engineers and university professors, not be easily broken. The welding spark is less.

5. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

6. The mesh pulling system in cycle is automatically calculated, no need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling.

7. The automatic rolling mesh machine will rewind mesh automatically.The max up to 100m per roll. When the length of roll mesh reach the required mesh length, The rolling mesh machine will stop working.The worker take out the roll mesh.

8. The roll welded wire mesh production line need two workers to operate, save labor cost.

9. The roll welded wire mesh production line is equipped with water cooling tower to cool the welding transformer and welding electrode. To make sure the welding transformer and welding electrode work long time.

Roll Welded Wire Mesh Production Line Technical Parameters:

Roll Welded Wire Mesh Production Line Applications:

The roll welded wire mesh is widely used in highway, railway, highway and other guardrail mesh facilities; It is also used for interior decoration, raising chickens, ducks, geese, rabbits and zoo enclosures; Protective nets for mechanical equipment and conveying mesh for mechanical equipment; Sports place purse Seine, road green belt protection mesh.

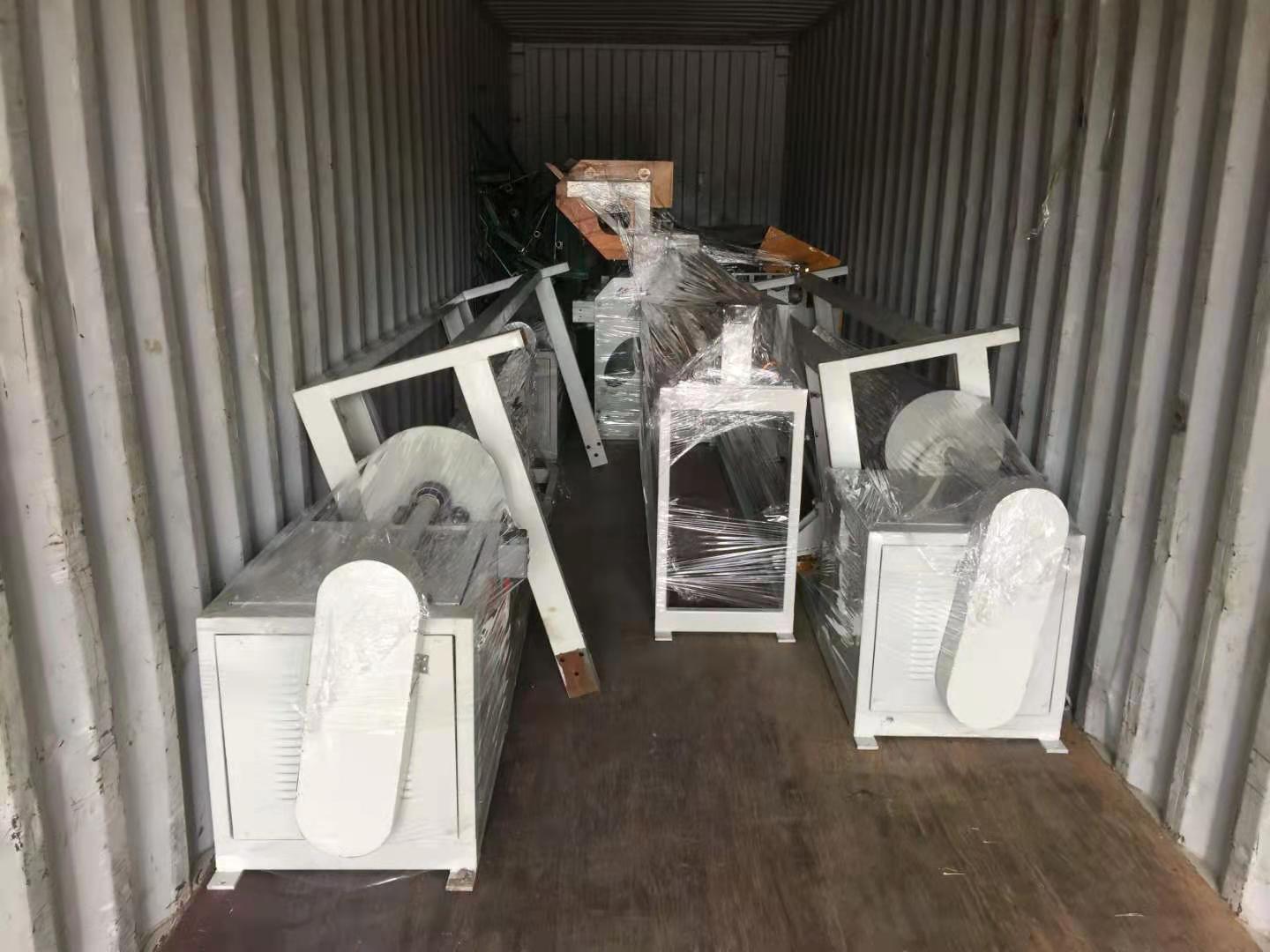

Roll Welded Wire Mesh Production Line Packing:

Roll Welded Wire Mesh Production Line Photos:
