Line Wire Manual Feed Electrodes Size 20*20*20mm Mesh Panel Welding Machine


Mesh Panel Welding Machine Introduction:

This is our new developed mesh panel welding machine DX-GWC-2500A. The welding speed can be up to maximum 75 times/min. It has advantage of easier machine maintenance, less machine problem, easY to learn and operate, save power and consumption, less welding spark etc.

Mesh Panel Welding Machine Features:

1. Pneumatic welding, each welding electrode is controlled by one SMC air cylinder. Electrodes 20*20*20mm, can be used 6 sides.

1. The control system adopts synchronous CNC technology,Mitsubishi PLC program and HMI.It is easy and convenient to operate with the touching screen.

2. Adjustable distance of the line wire that allows diffetent openning size between the line wire distance,

when input the distance of cross wire to computer ,any mesh opening can be reach.

3. The welding wire is accurate and the welding points are firm for the big pressure.

4. This mesh panel welding machine equips typical and efficient transformer ,which gearless adjusted, enlarging the welding range.

5. Mesh pulling system is controled by servo motor. Panasonic servo motor for pulling mesh, cross wire space can be adjusted by PLC. The pulling rack is J&T brand, more accurate, less noise.

6. Welding transformer:160KVA*6PCS(48 welding electrodes)---every 8 welding heads need a water cooling transformer.

7. Wire feeding method :The line wires and the cross wire should be pre-straightened and pre-cut.The cross wire system is ontrolled by mechanical hopper device.Send weft wires one by one automatically.The machine will stop working when the cross wire used up in the hopper.

8. Material suitable for low carbon ironwire,black annealed wire or galvanized (cold galvanized,hot galvanized)processing.

Mesh Panel Welding Machine Technical Parameters:

Mesh Panel Welding Machine Applications:

It can be used in the production of highway guardrail mesh, fence net, construction net, high-rise building net and other products.

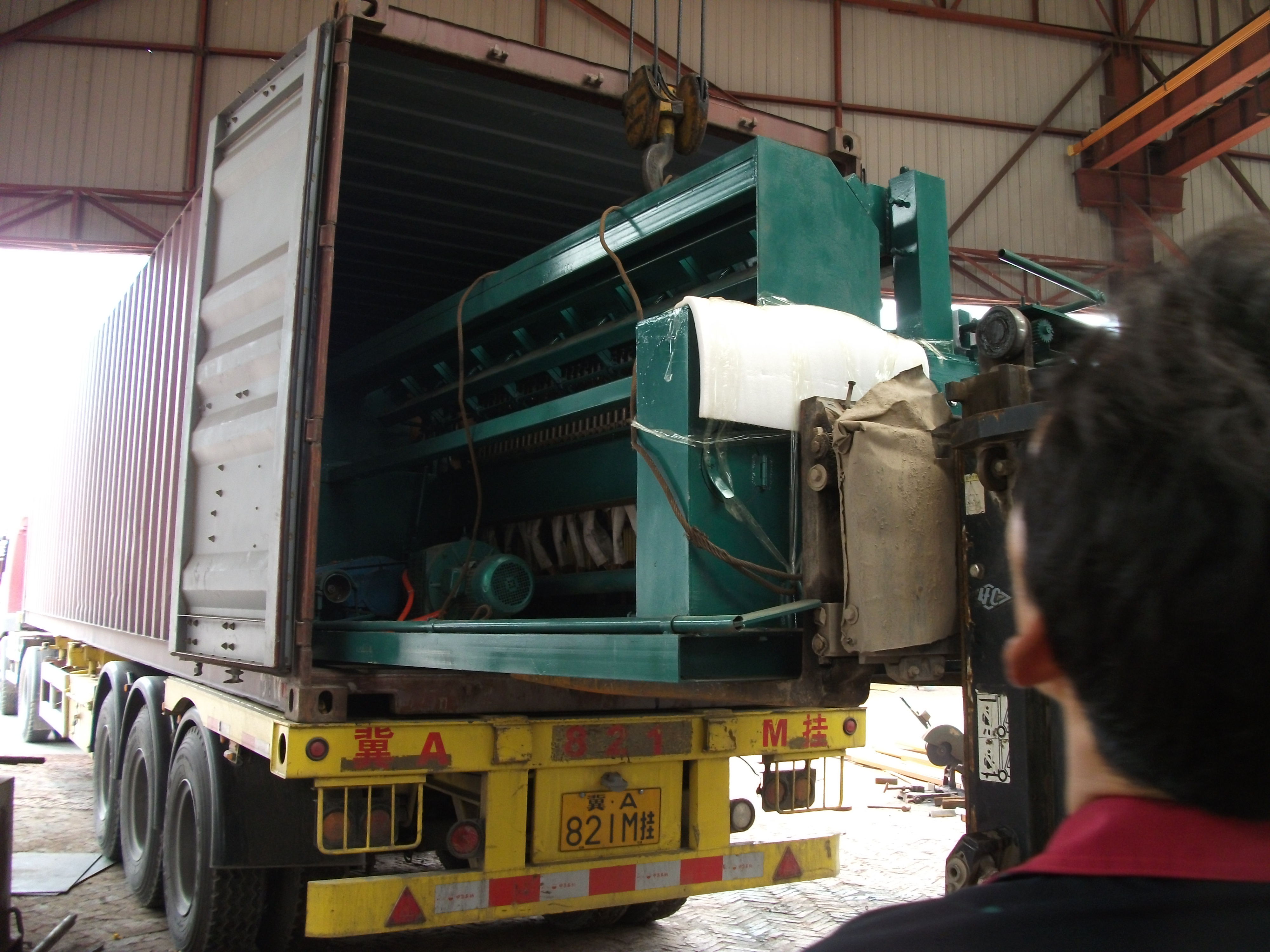

Mesh Panel Welding Machine Packing:



Mesh Panel Welding Machine Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
