    New Zealand 21 PCS 7.5KW Barbed Wire Fence Building Machine

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-LWJ-2400
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    New Zealand 21 PCS 7.5KW Barbed Wire Fence Building Machine

    Line Wire 21 PCS New Zealand Southern Standard Fixed Knot Fence Machine


    Fixed Knot Fence Machine Introduction:


    Fixed knot fence machine used to produce grassland fence and field fence. The performance of this kind of fixed knot fence is better than that of hinge joint fence.Because it is not easy to move the knot at the wire crossing.It is widely used in grassland, farm, animal husbandry and breeding.


    Fixed Knot Fence Machine Features:


    1. The machine is controlled by PLC cabinet, each part of the machine works with coordination and flexible to operate.

    2. Wire prevent backset system

    It can ensure the stable operation of the machine, and the mesh size is accurate and beautiful.
    3. Wire straightening system
    Both the cross wire and line wires are straight.This can make the wire knot position accurate and standard
    4. Wire pay system
    The pay off reel is produced by our factory, which contains the bearing design to make the reel rotate smoothly and reduce the resistance.
    5. Roll mesh collection system.
    The roll mesh max up to 200m per roll. Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to take away the roll mesh.
    6. The raw material can be galvanized wire-electric galvanized wire, hot dipped galvanized wire.

    Fixed Knot Fence Machine Technical Parameters:


    ModelDX-LWJ-1560DX-LWJ-1800DX-LWJ-2400
    Line wire space76mm 100mm,225mm76mm 100mm,225mm76mm 100mm,225mm
    Cross wire space76mm-450mm76mm-450mm76mm-450mm
    Edge wire diameter2.0-3.5mm2.0-3.5mm2.0-3.5mm
    Line wire diameter2.0-3.0mm2.0-3.0mm2.0-3.0mm
    Knot wire diameter2.0-2.5mm2.0-2.5mm2.0-2.5mm
    Production speed30 times per min30 times per min30 times per min
    Line wire testautomatic stop lack of wireautomatic stop lack of wireautomatic stop lack of wire
    Cross wrie testautomatic stop lack of wireautomatic stop lack of wireautomatic stop lack of wire
    Knot wire testautomatic stop lack of wireautomatic stop lack of wireautomatic stop lack of wire
    Control systemBy PLCBy PLCBy PLC
    Fence height1560mm1800mm2400mm
    Quantity of line wire14 PCS16 PCS21 PCS
    Roll mesh lengthMax. 200mmMax. 200mMax. 200mm
    Equipment dimension3900*6800*2250mm4450*6800*2250mm4800*6800*2250mm
    Equipment weight7.6 tons8.3 tons9.2 tons
    Wire materialIron wire,galvanized wireIron wire, galvanized wireIron wire, galvanized wire

    Fixed Knot Fence Machine Applications:


    It is suitable for agricultural and animal husbandry professional households to establish family aquaculture to establish border defense, farmland boundary fence, forest nursery, closed mountain forest, tourist areas and hunting areas, construction site isolation maintenance, etc.


    Fixed Knot Fence Machine Packing:

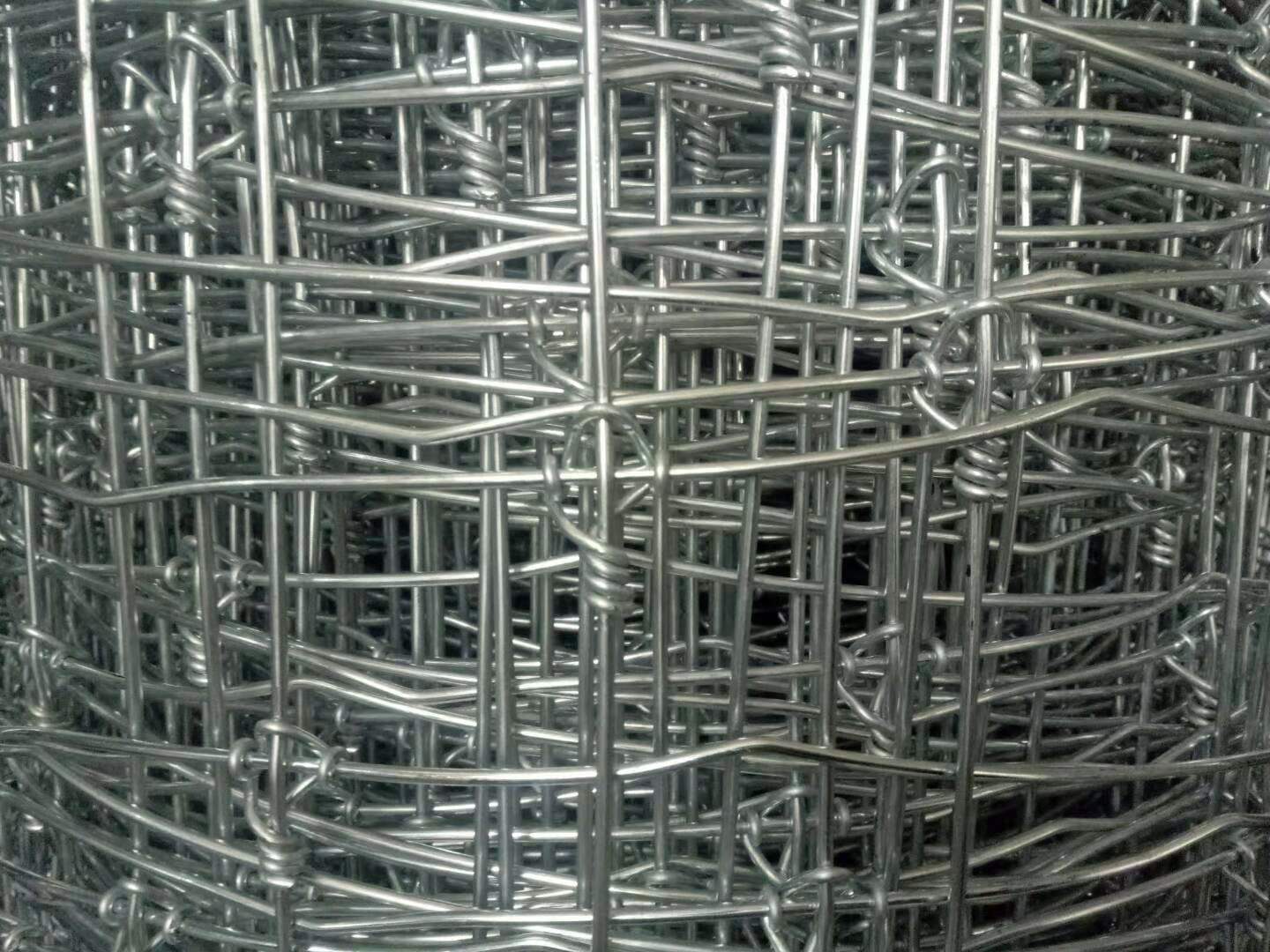

    Fixed Knot Fence Machine Photos:
