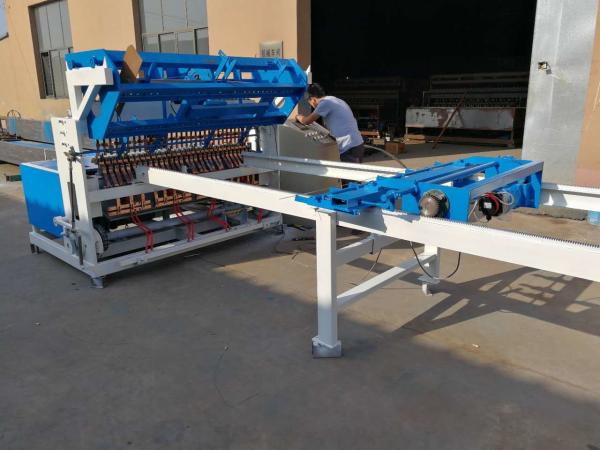

Panasonic PLC Welding Transformer 125KVA Mesh Width 2500mm Wire Mesh Welding Machine

Wire Mesh Welding Machine Introduction;

1.The wire mesh welding machine for making wire mesh fence adopts synchronous control technique. The center-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent.

2.The cross wire will be feed automatically with the help of a stepper motor. Falling wire automatically.

3. Adjustable longitude wire space and cross wire space.The line wire and the cross wire are pre-straightened and pre-cut. The greatest advantage is that you can adjust the distance of cross wire at random on the same one mesh panel. For example, 50x100, 50x150, 50x200, 50x250, 50x300 in one mesh panel.

4. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.

5. The welding transformer is working one by one. Not working together. Welding pressure Adjustable by springs.

6. The wire mesh welding machine adopts an integrated water-cooled transformer, whose voltage is 125 KVA.

7. The wire mesh welding machine equips with longitudinal wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by Panasonic servo motor.

8. The power transformer must be at least 160KVA, and the maximum distance between the power transformer and the machine must be 80 m.

9. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.

10. The distance between the power transformer and the machine must be less than 50 meters, 3 fire cables with a diameter ≥95 mm² of aluminum wire and 1 zero cable ≥4 mm² for copper cables.)

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Application:

The wire mesh fence is widely used in airport. highway,railway protection, industry, agriculture, construction, transportation, golf course, lawn, feeding, mining and other work.
