Switch Schneider Construction Mesh PLC Mitsubishi Wire Mesh Welding
Machine
Wire Mesh Welding Machine Introduction:
Wire mesh welding machine, also called automatic welded mesh
machine, welded wire mesh roll machine, used to make road mesh,
reinforcing mesh, construction mesh, The line wire is feed from
coil wire automatic. The cross wire is pre-cut. with the help of
the stepping motor to feed automatic.
Wire Mesh Welding Machine Features:
1. The Wire Mesh Welding Machine can make mesh panel and roll mesh.
This is one multifunctional production line.
2. Simple operation of the equipment: it only needs one automatic
operation button to complete the operation of a product.
3. Unique cross wire hopper device control scheme: if there is no
wire inside the cross wire device or cross wire falling is
abnormal, the Construction Mesh Welding Machine will stop working
until the cross wire hopper device works normally.
4. Welding stop function: the main motor stops running when welding
the iron wire, and continues to work after welding to ensure
welding quality.
5. Servo motor control: equipped with Delta VE high-end frequency
converter and PG card to make the 0-1500r/min acceleration and
deceleration time of the main motor 0.02 seconds. At zero speed, it
can run with 200% torque to ensure the quick response of the
equipment. The main motor is equipped with encoder.
6. Helical gear reducer: in order to ensure the high load operation
of the equipment, the K series helical gear reducer with large
torque bearing force is adopted, and the external installation
ensures the characteristics of convenient maintenance.
7. Mesh drawing system: equipped with Panasonic servo motor and
planetary reducer, to ensure the stability of the system. And the
standard of mesh product size.
8. our welding electrodes used 20mm diameter pure copper, durable;
9. the welding transformer use water cooling system, protect
machine can running well in a hot area or long time working;
10. The suitable material: galvanized wire,low carbon steel wire.
iron wire.
Wire Mesh Welding Machine Technical Parameters:
| Model | DX-GWCD-2000+ | DX-GWCD-2500+ |
| Wire diameter | 2.5-6.0mm | 2.5-6.0mm |
| Welding mesh width | Max. 2000mm | Max. 2500mm |
| Line wire space | 50-200mm | 50-200mm |
| Cross wire space | 50-300mm | 50-300mm |
| Mesh length | mesh panel 6m and roll mesh 80m | mesh panel 6m and roll mesh 80m |
| Line wire form | Coil wire | Coil wire |
| Cross wire form | Pre-cut | Pre-cut |
| Main motor | 5.5kw | 5.5kw |
| Welding speed | 45-65 times per min | 45-65 times per min |
| Material of welding electrode | Red copper | Red copper |
| Welding transformer | 160kva*5pcs water cooling system | 160kva*6pcs system |

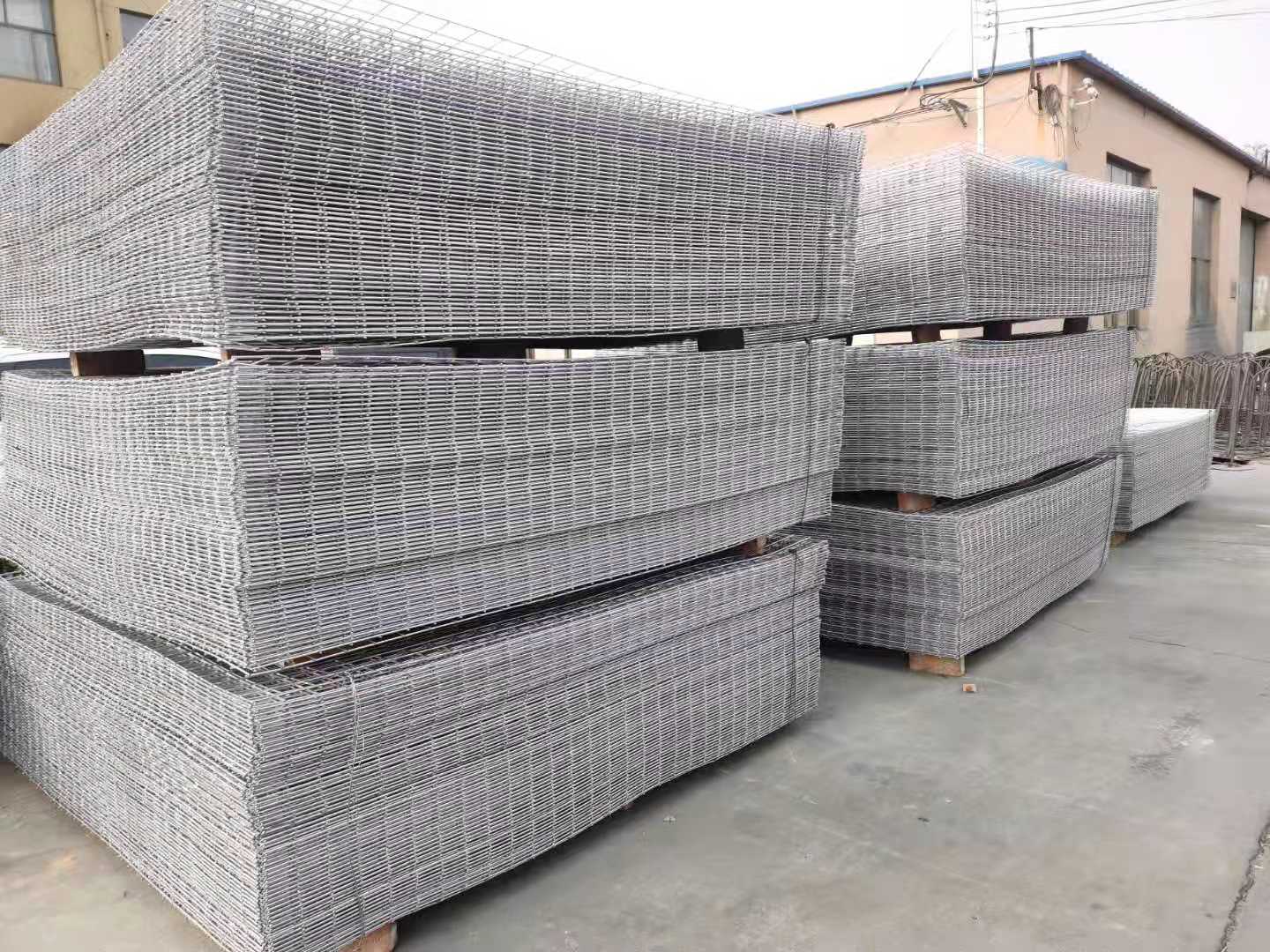

Wire Mesh Welding Machine Applications:
It is widely used in construction, decoration engineering,
protective net column, industry and agriculture, etc
Wire Mesh Welding Machine Packing:

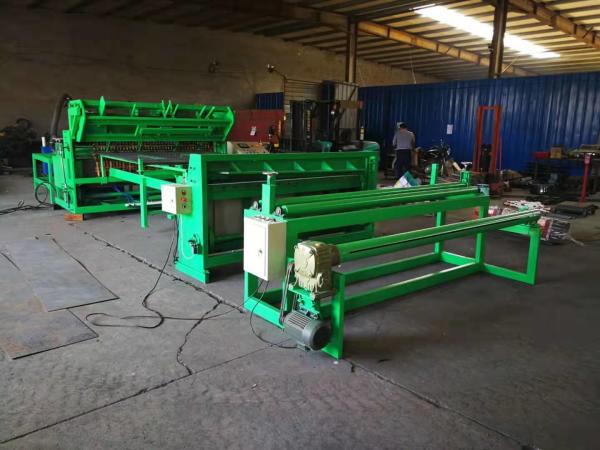

Wire Mesh Welding Machine Photos:
