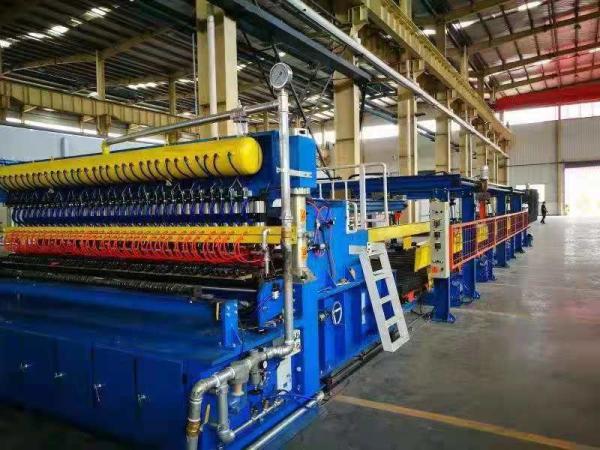

Wire Diameter 6-12mm Automatic Fall Mesh Reinforcing Panel Mesh Welding Machine

Reinforcing Panel Mesh Welding Machine Introduction:

The reinforcing panel mesh welding machine is our latest product to make reinforcing panel mesh. The machine is working by resistance welding working principle to achieve machine working. And the machine has automatic falling mesh device. By doing so. Save labor cost and increase production capacity. We have exported many machines to different countries. Clients are very satisfied with our machine.

Reinforcing Panel Mesh Welding Machine Features:

1. The control system of the reinforcing panel mesh welding machine adopts synchronous CNC technology, Mitsubishi or Panasonic PLC program and HMI. The machine operation is more intelligent and reasonable.

2. The control cabinet adopt touch screen and keyboard, you can change welding time and weft wire hole mesh size through touch screen. And has language in English.
3. The weft wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The weft wire store device has more capacity can load max 1.5 tons rebar.
4. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any mesh opening can be reach.
5. The main engine adopts imported and famous pneumatic components, making the service life long.
6. Mesh pulling system is controlled by Panasonic servo-motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

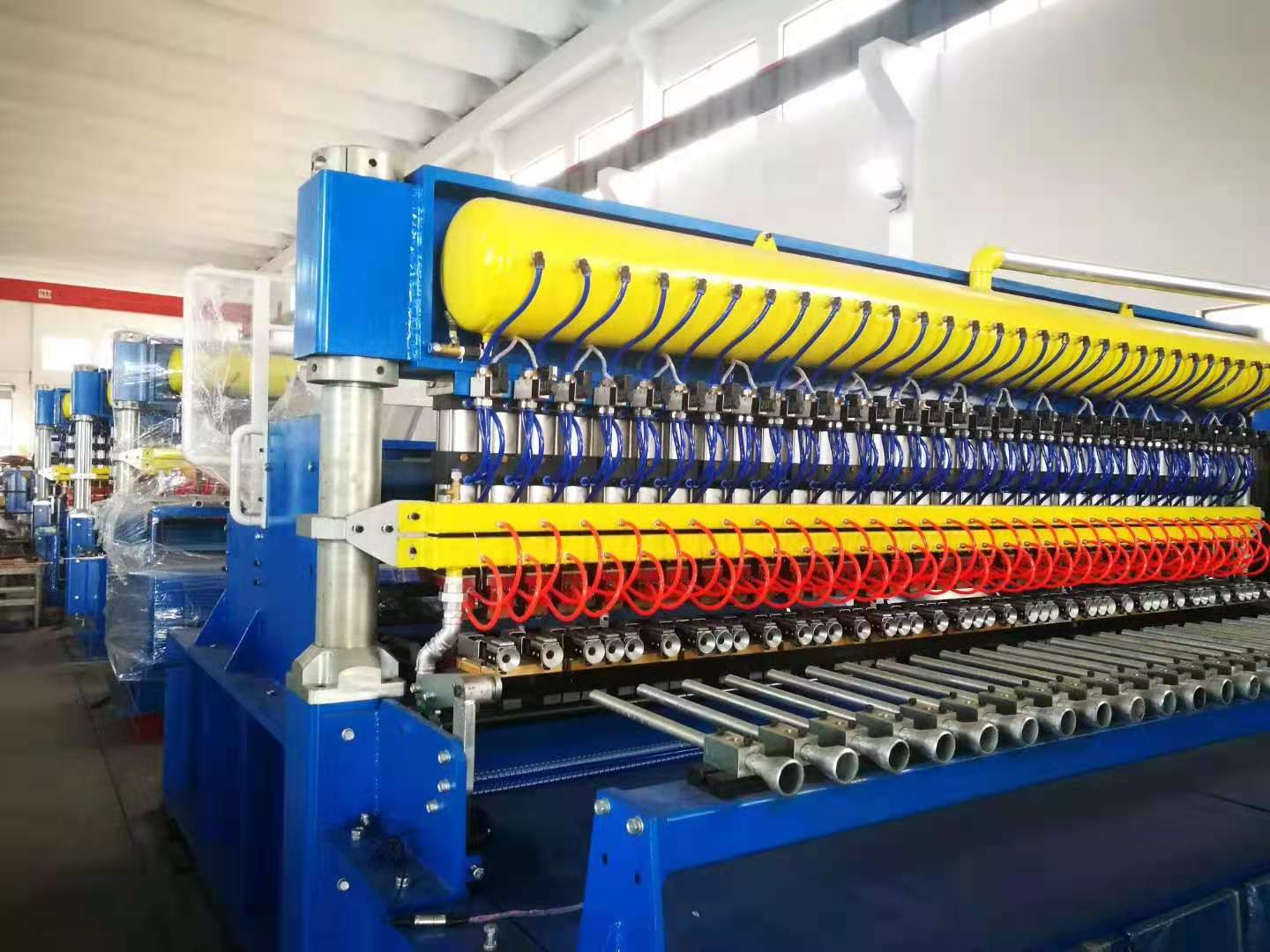

7. The reinforcing panel mesh welding machine equips with 13 pieces of typical and efficient water-cooling welding transformers, The capacity of welding transformer is 160KVA*13PCS (26 pcs of welding electrodes) ——every two welding electrodes need a water cooling welding transformer. The water-cooling welding transformer with epoxy resin are adopted, which is smaller in size and higher welding capacity in safety and reliability than traditional transformers.

8. Low-voltage electrical appliances adopt Schneider brand, well-known brands to ensure the efficient and stable operation of the equipment.

9. The reinforcing panel mesh welding machine will stop working automatically if there is no cross wires in hopper device.

10. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

11. The weft wire space adjustment adopts PLC micro-computer control, set on the touch screen. Very easy and convenient to operate.

12. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.
13. Wire feeding way:The longitudinal wires and weft wires should be pre-straightened and pre-cut. The longitudinal wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by Panasonic servo motor.

14. Automatic falling mesh device and mesh conveyor is adopted, so it save much labor to move the mesh panels.

Reinforcing Panel Mesh Welding Machine Technical Parameters:

Reinforcing Panel Mesh Welding Machine Applications:

The finished product reinforcing panel mesh have big demand in construction field. Coal mine roadway protection and reinforcement, expressway, bridge, tunnel, bridge deck pavement, airport runway, house floor, roof, wall, floor and various concrete buildings, etc.

Reinforcing panel mesh has been widely used in the construction industry, in addition to the production of precast reinforced concrete components, more is used in the cast-in-place concrete structural members: construction: multi-storey and high-rise industrial and civil housing construction (foundation, floor, floor, roof, wall, etc.);Transportation: concrete pavement of expressway, soft base section, bridge deck pavement, anti-crack of bridge pier surface, concrete ground of toll plaza, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf and port, etc.;Municipal construction: overhead overpass surface pavement, square concrete ground, concrete pipe, fence, slope protection, etc.Water conservancy and electric power coal: water conservancy facilities, electric dam foundation, protective net, etc.;Others: flood control facilities, slope reinforcement, collapse protection, breeding industry, animal husbandry, etc.
