Bridge Reinforcement Panel Size 2.5*6m Welded Steel Iron Mesh Welding Machine

Welded Steel Iron Mesh Welding Machine Introduction:

The Welded Steel Iron Mesh Welding Machine adopts mechanical eccentric wheel and spring pressure, servo motor and precision speed reduction device to do the movement on the rack pathway back and forth. With the low costs for maintenance, it was easy to operate and adjust the mesh size. Adopting large storage device, line wire feeding from coil automatically, The cross wire is pre-cut. feeding by through stepping motor. ensure the pulling mesh force is events. The biggest advantages is that the Welded Steel Iron Mesh Welding Machine can make mesh panel and roll mesh. This is one multifunctional machine.

Welded Steel Iron Mesh Welding Machine Features:

1. The Welded Steel Iron Mesh Welding Machine adopts humanized operation interface,very easy to operate and master, can set different mesh size and mesh length by touch screen input. Also can set different languages as per client requirement.

2. The Welded Steel Iron Mesh Welding Machine adopts line wire straighten system. special design structure ensure the straighteness of the line wires from 2 directions. The straightening wheels are made of alloy steel with long lifetime. It can straighten different materials. Such as: galvanized wire, cold-rolled ribbed wire, low carbon black wire.

3. The Welded Steel Iron Mesh Welding Machine adopts cross wire feeding with hopper with large storage.reduce the labor to input the wire material frequently.Wire blanking smoothly with the inspection device will alarm and machine stop working automatic if the cross wire is dropping improperly or cross wire disordered.

4. The Welded Steel Iron Mesh Welding Machine adopts runway of pull mesh. The guide adopts linear rails.accompany the servo control together.which improve the accurate of the mesh.The traction device is equipped with pneumatic clamping body. which can tight grip the cross wire when mesh traction. which effectively improve the accurate of the mesh.Traction device can work in back and forward. return qiuck and stable. Cross wire space can be designed freely in the operation interface and easy to operate and master.

5. The Welded Steel Iron Mesh Welding Machine adopts mesh falling deivce and transport system. Stacking the mesh automaticall. Save the labor cost especially for produce large mesh panel size.And the mesh length and quantity is adjustable.

6. The Wire Mesh Welding Machine adopts welding transformer and welding electrodes are water cooling. To reduce the heat and service life longer. The upper electrodes adopt the spring pressure with high strength.life time longer under rated load,compared to the pneumatic electrodes save the maintenance cost.

7. The mesh cutting machine set the cut mesh length in the control cabinet. Will cut the mesh automatically when the mesh size up to the set mesh length. After cutting the mesh panel. The falling mesh device will drop the mesh panel automatically.

Welded Steel Iron Mesh Welding Machine Technical Parameters:

Welded Steel Iron Mesh Welding Machine Application:

This product is widely used in industry, mining, commerce, transportation, construction (wall network, floor heating network), decoration, landscaping protection, civil, barriers of all industries.

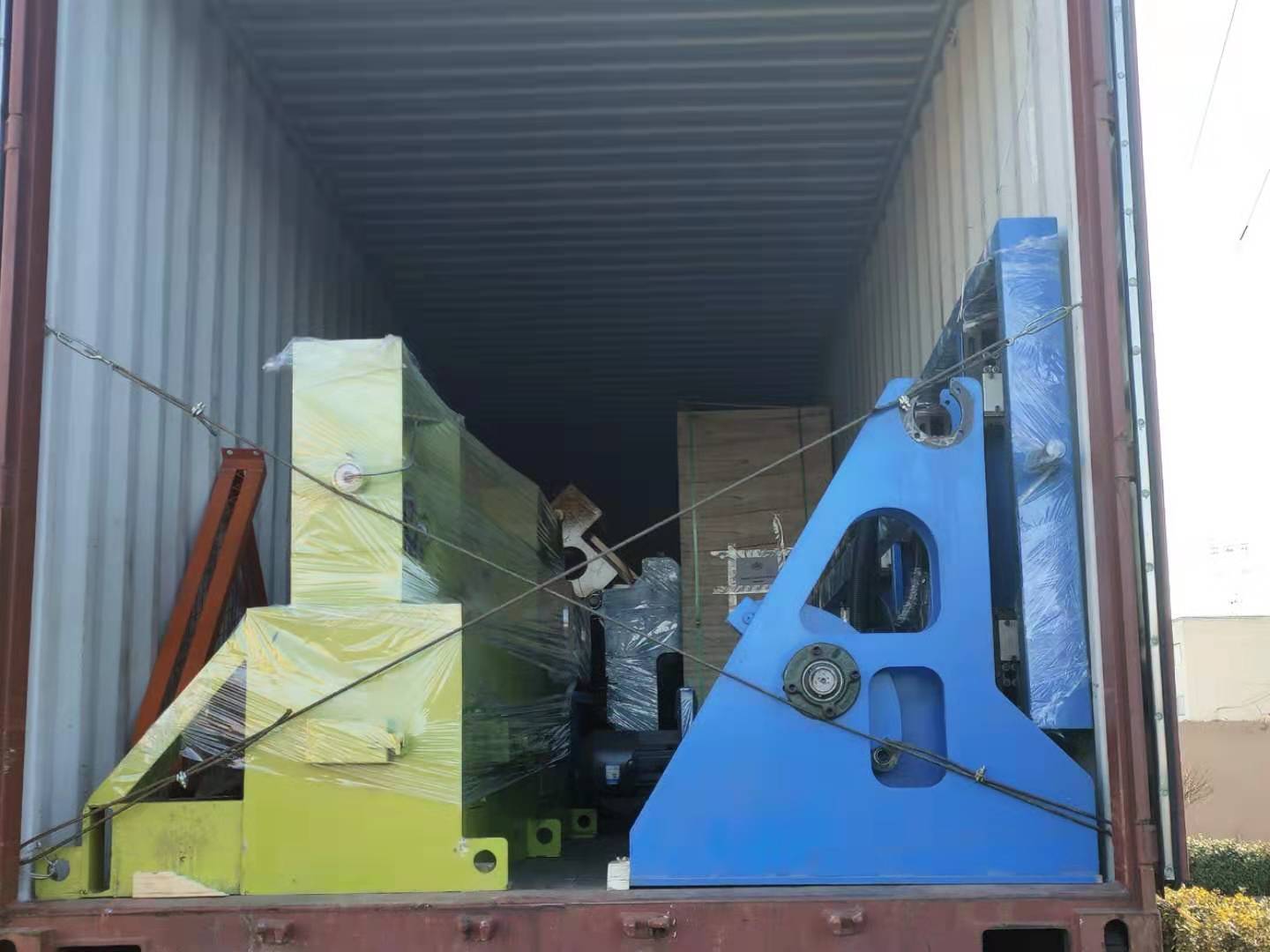

Welded Steel Iron Mesh Welding Machine Packing:

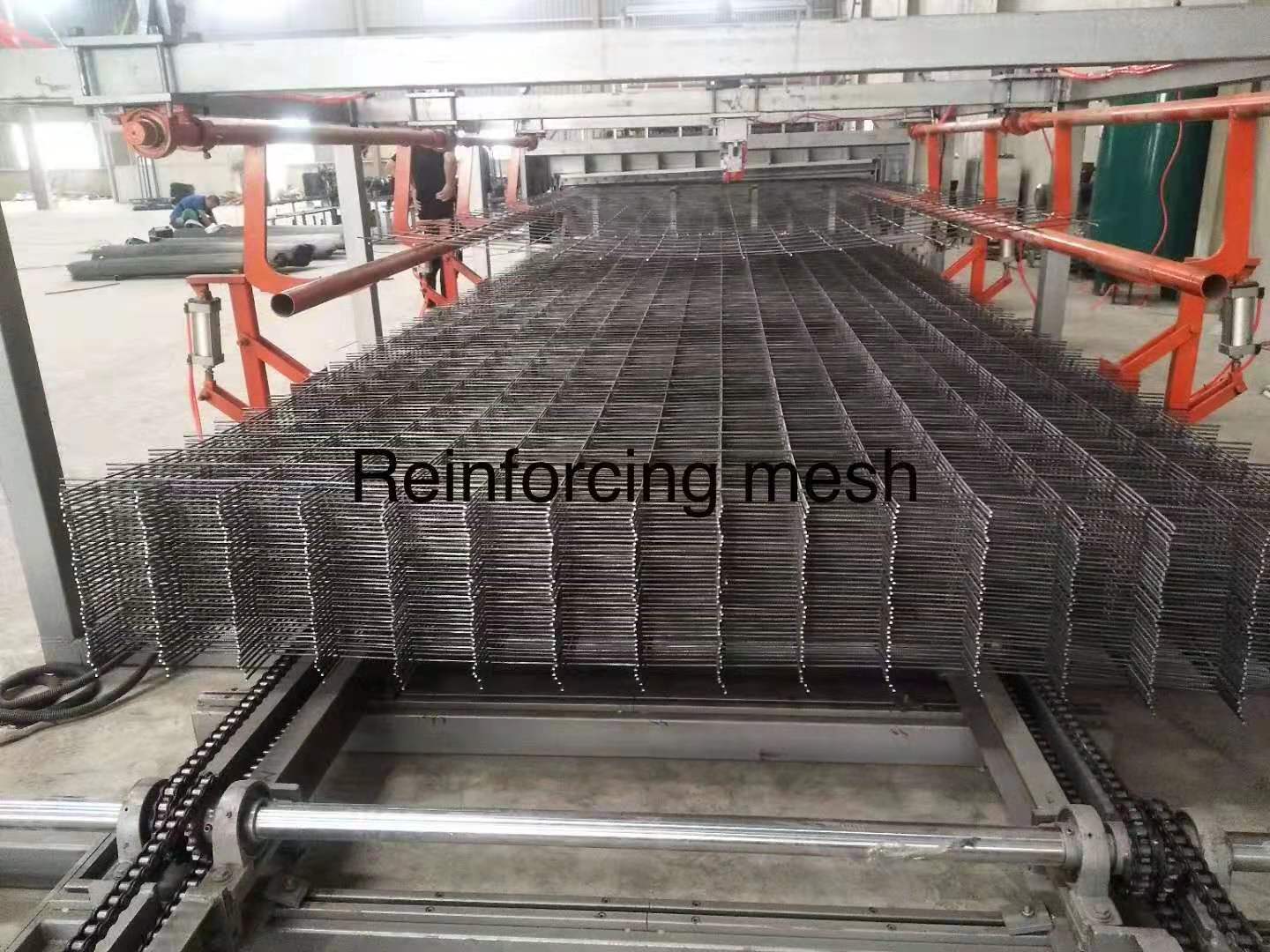

Welded Steel Iron Mesh Welding Machine Photos:
