    Steel Bar 12m 100mm Wire Mesh Welding Machines , Automatic Welded Wire Mesh Machine

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-GWC-2500D
    Certification : CE
    Payment Terms : L/C, T/T
    Supply Ability : 8 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Steel Bar 12m 100mm Wire Mesh Welding Machines , Automatic Welded Wire Mesh Machine

    Mesh Length 12m Hole Size 100*100mm Steel Bar Wire Mesh Welding Machine


    Steel Bar Wire Mesh Welding Machine Introduction:


    The Rebar Wire Mesh Welding Machine also called reinforcing mesh panel welding machine. The machine is used to produce reinforcing mesh panel. The max weld wire diameter 9mm. The minmium wire diameetr is 4mm. Welding mesh width from 1000mm to 3000mm. Max mesh length up to 12m. The wire mesh welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.


    Steel Bar Wire Mesh Welding Machine Features:


    1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)

    2. The line wires should be inserted into slot tunnels (cast iron material), suitable for different wire diameter.

    3. The cross wires are fed from cross wire feeder, controlled by step motor.

    4. Pure red copper (upper) and chromised bronze (lower), durable.

    5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

    6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

    7. Panasonic (Japan) servo motor+planetary reducer and air cylinders for pulling mesh.


    Steel Bar Wire Mesh Welding Machine Technical Parameters:


    ModelDX-GWC-2000DDX-GWC-2500DDX-GWC-3000D
    Wire diameter4-8mm4-8mm4-8mm
    Welding mesh width2000mm2500mm3000mm
    Line wire distance50--300mm50--300mm50--300mm
    Cross wire distance50-300mm50-300mm50-300mm
    Mesh lengthMax 12mMax 12mMax 12m
    Line wire feeding wayPre-straighten pre-cutPre-straighten pre-cutPre-straighten pre-cut
    Welding speed50-75 times per min50-75 times per min50-60 times per min
    Welding electrodes40PCS48PCS60PCS
    Welding transformer160KVA*7PCS160KVA*8PCS160KVA*10PCS
    Main motor7.5KW7.5KW11KW
    Pulling mesh systemBy servo motorBy servo motorBy servo motor
    Control systemPLC and touch screenPLC and touch screenPLC and touch screen

    Steel Bar Wire Mesh Welding Machine Applications:


    Used for all kinds of reinforced concrete structures such as Bridges, expressways, tunnel backs, high-rise floors, subway culverts, power plant projects, dam foundations, ports, docks, river embankment protection walls, airport runways.

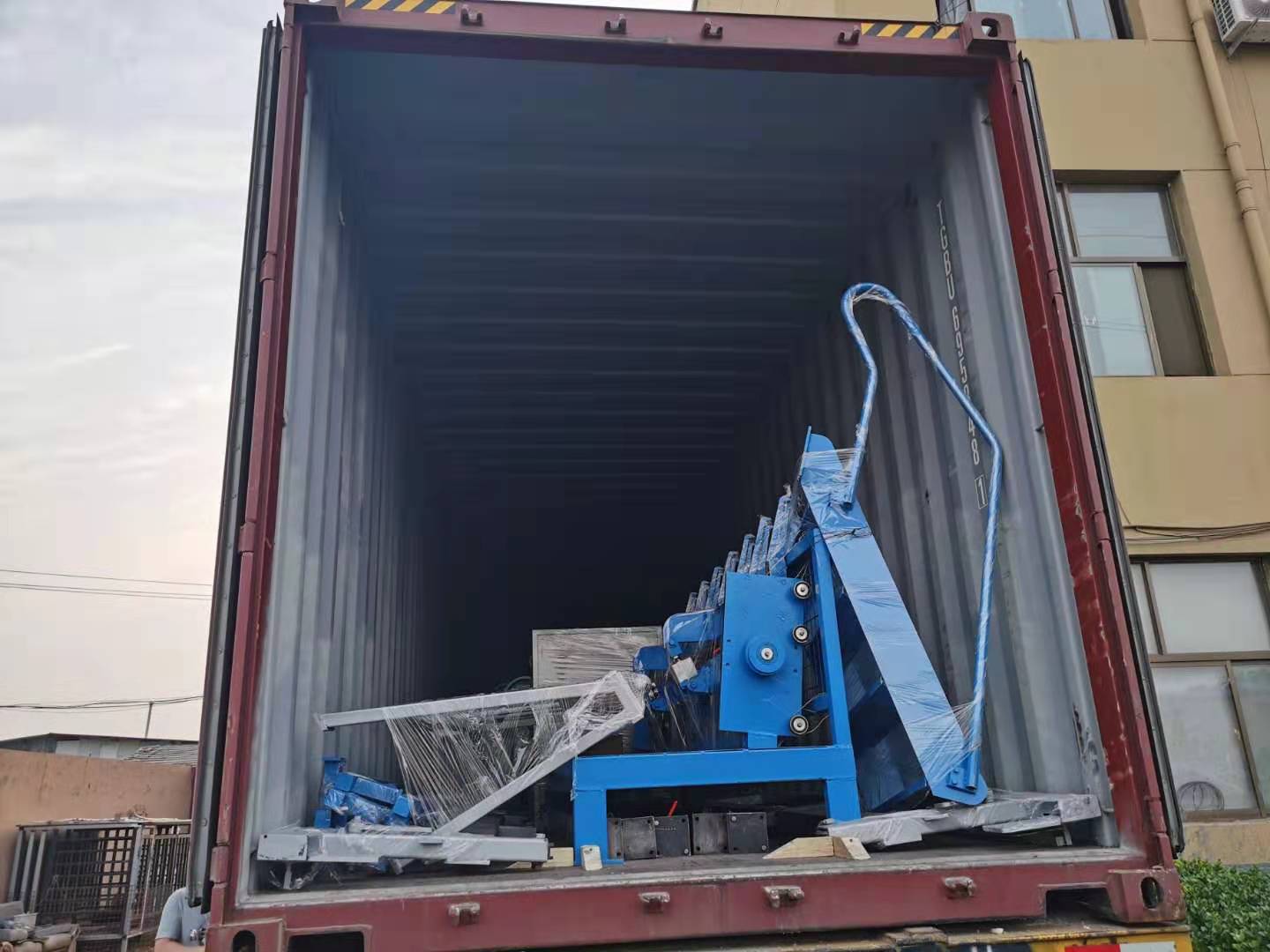

    Steel Bar Wire Mesh Welding Machine Packing:



    Steel Bar Wire Mesh Welding Machine Photos:
