Electrodes Water Cooling Mesh Width 2500mm Reinforcing Wire Mesh Welding Machine

Reinforcing Wire Mesh Welding Machine Introduction:

The wire mesh welding machine is a midium-sized type to make mesh panel. The max weld wire diameter up to 8mm. We also called it small type reinforcing mesh welding machine. The wire mesh welding machine adopt PLC control. Touch screen operation. Very easy and convenient to operate.

Reinforcing Wire Mesh Welding Machine Features:

1. The wire mesh welding machine is used to make reinforcing mesh with wire diameter 4-8mm. Mesh width: 2000mm,2500mm,3000mm. The mesh width can be customized as per your required. Mesh hole size; 50*50mm to 300*300mm. The mesh hole size is adjustable. Mesh length max up to 12m.

2. The suitable material: galvanized wire,low carbon steel wire, ribbed wire.

3. The line wire and cross wire pre-straighten and pre-cut.
4. PLC control, touch screen operation, human-machine interface, simple operation.
5. Two-person operation, fast welding speed, 45-75 times/min
6. Dragnet device, Mitsubishi servo motor dragnet, more ** than the stepper motor dragnet grid control, stable.
7. Weft wire hopper controlled by stepping motor, automatic blanking.
8. Brand configuration: Mitsubishi servo PLC, motor, driver, Schneider contactors, Delta inverter, Velan touch screen, etc.
9. Touch screen input parameters, one-button switch, fault display, easy maintenance.
10. All electrical parts of the equipment are customized according to customer requirements.

11. The main machine can be separate from the cross wire hopper device.in this way. Very convenient to adjust the welding electrodes.Save time.

Reinforcing Wire Mesh Welding Machine Technical Parameters:

Reinforcing Wire Mesh Welding Machine Applications:

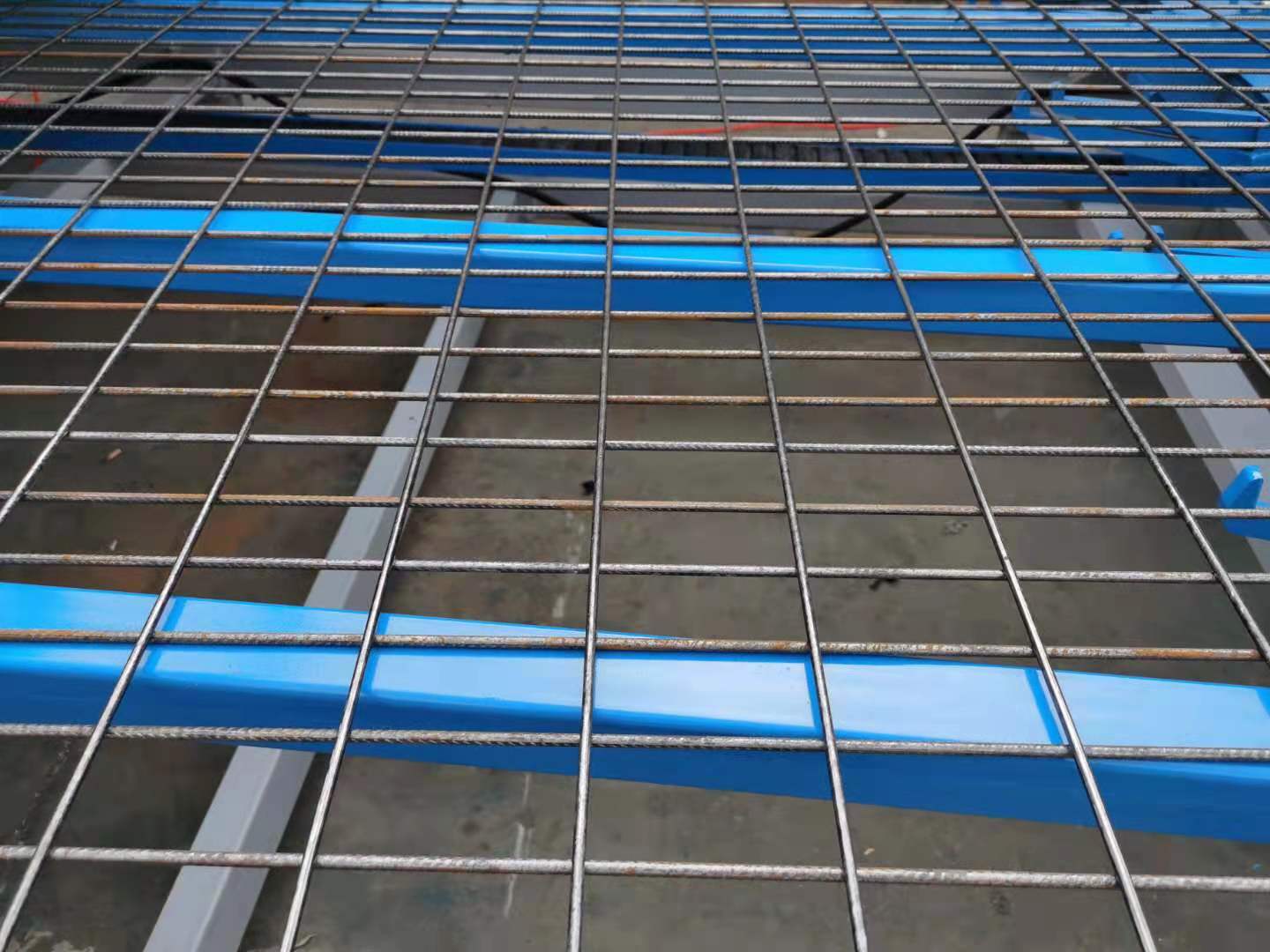

The reinforced welding mesh is mainly used in the protection and reinforcement of coal mine roadway, concrete pavement, bridge deck paving, airport runway, tunnel lining, building floor, roof, wall, floor, concrete pipe, pile and so on.

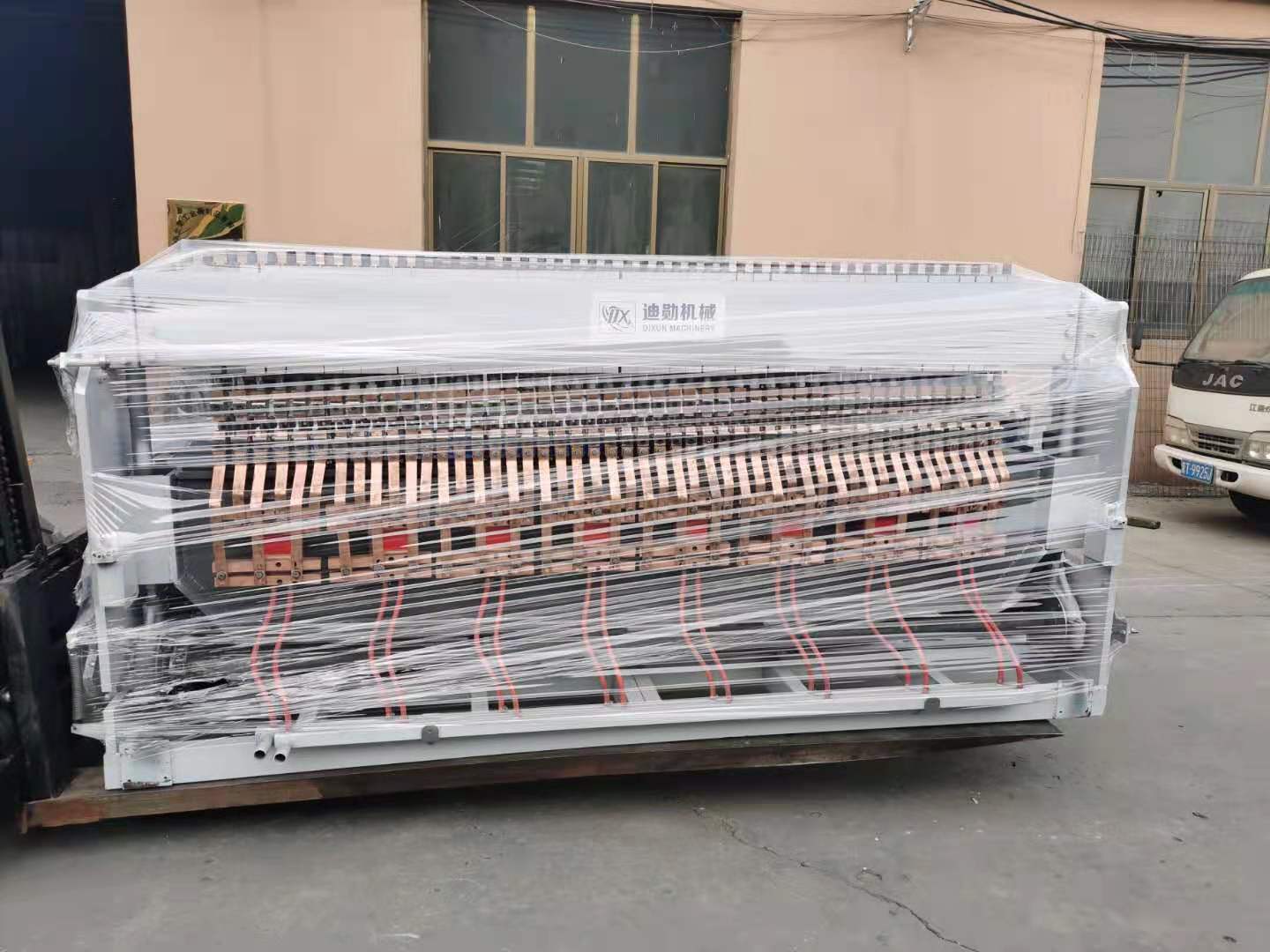

Reinforcing Wire Mesh Welding Machine Packing:

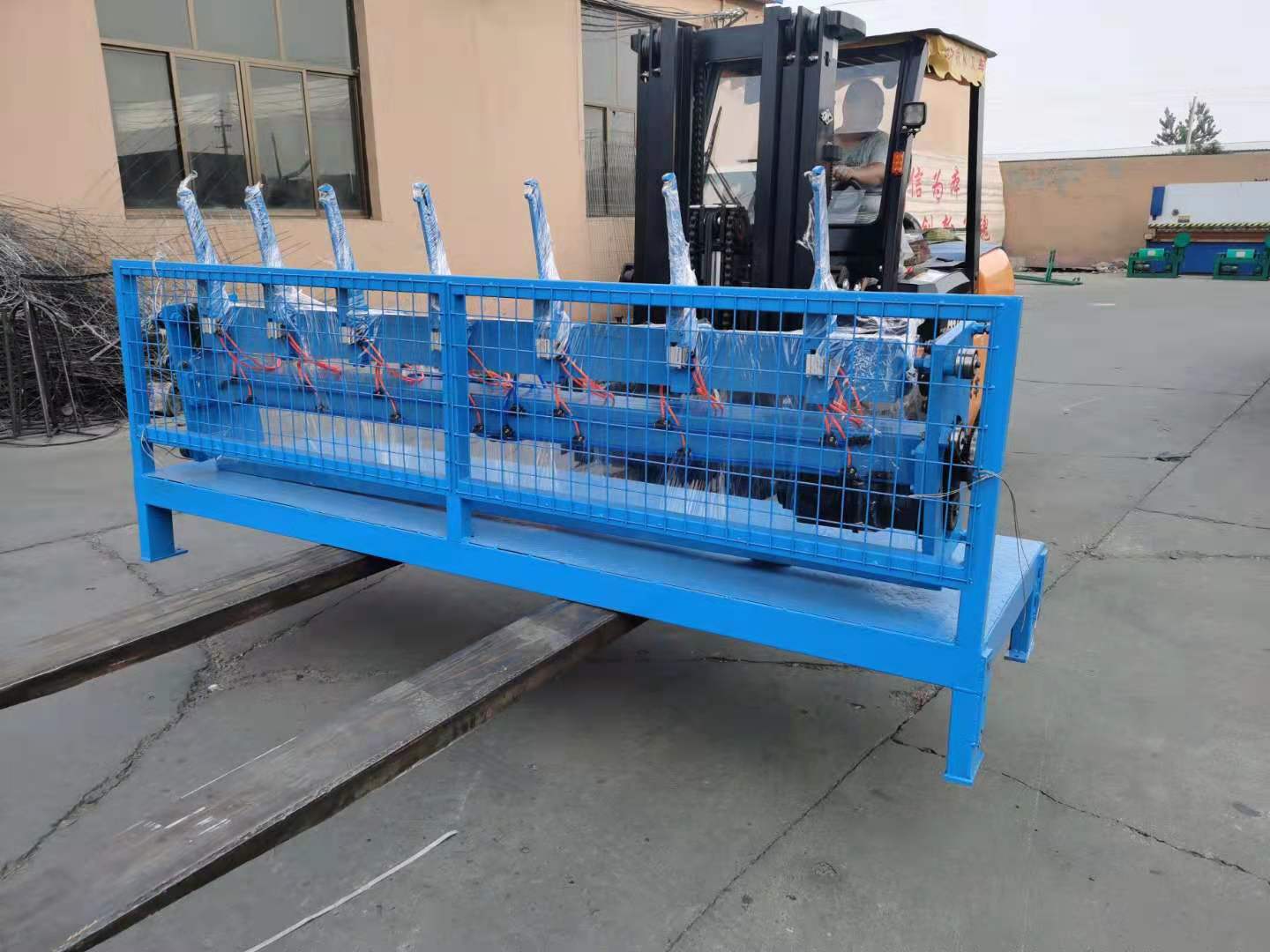

Reinforcing Wire Mesh Welding Machine Photos:
