Line Wire Space 75mm Mesh Width 2440mm Fixed Knot Fence Making
Machine
Fixed Knot Fence Making Machine Introduction:
The Fixed knot fence making machine also named as deer fence or
animal fence which can produce fixed knot fence which is widely
used for preventing environmental balance,preventing landslide and
used as livestock fence.
The fixed knot fence making machine can weave the weft and warp
wire automatically together to form the ranch fences. The end
products enjoy innovative structure, firm and precise weaving. The
machine offers reliable property. Hinge joint knot weaving field
fence machine can weave the weft and warp wire automatically
together to form the field fences.
Fixed Knot Fence Making Machine Features:
1. Panasonic PLC controller--High degree automation; Easy and safe
operation.
2. All the electric system adopt Schneider France.
3. The bearing adopts SKF from Sweden.
4. The pneumatic element adopt SMC from Japan.
5. The linear guideway adopt HIWIN
6. Sophisticated PLC control and manufacturing technique to ensure
machine smooth-running.
7. Speed-adjustable motor and servo motor to save energy and
increase capacity.
8. Flattening pole to make smooth surface of finished products.
9. Products with diverse specification.
10. The machine will unload the fixed knot fence automatically
after finished one roll fence mesh.
Fixed Knot Fence Making Machine Technical Parameters:
| Model | DX-LWJ-1500 | DX-LWJ-2100 | DX-LWJ-2440 |
| Maximum Fence Width | 1.524M | 2.082M | 2.438M |
| Maximum Number of Line Wires | 16line | 18line | 20line |
| Line wire spacings | Minimum 76mm (3'')can be increased by additional increments of
12.5mm(1/2'') or multiples of 12.5mm(1/2'') |
| Stay wire spacings | 150mm,300mm,and450mm(6'',12'',and18) |
| Line wire size | 2.0mm-2.8mm |
| Stay wire size | 2.0mm-2.8mm |
| Knot wire size | 2.0mm-2.4mm |
| Length of roll | Up to 220m(660ft) |
| Motion system | Controlled vector and servo drives(MIGE ISO9001-2008) |
| PLC control of machine functions | Panasonnic |
| Motion supply voltage | 3 phase 380V AC 50/60HZ |
| Control supply voltage | DC 24V |
| Speed | 22 stays/minute |
| Machine weight | 5900kg | 6500kg | 7800kg |
| Main body size | 3900*6800*2250 | 4450*6800*2250 | 4800*6800*2250 |
Fixed Knot Fence Making Machine Applications:
The fixed knot fence Is widely used in the zoo fence, construction
site fences, captive poultry, slope greening, landscaping, with a
net, wildlife park, grassland, pasture and other places of grazing
in captivity, especially applied in the pasture fence project, for
rotational grazing pastures, protection, can play an important
role, can also be used for rare flowers, growing forest park
isolation protection.

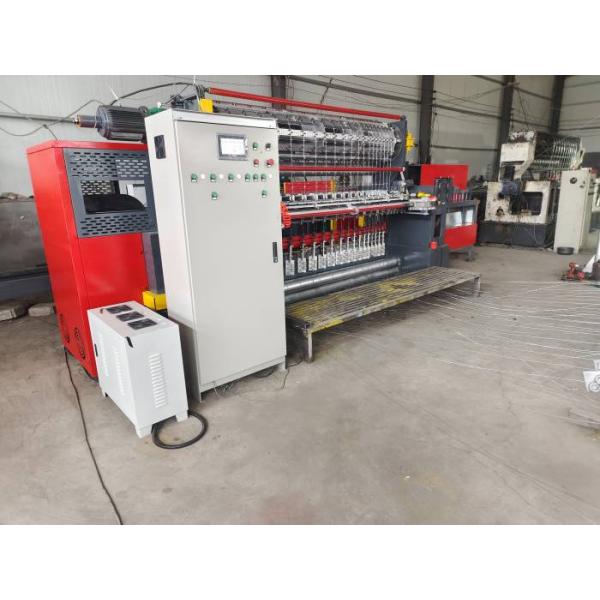

Photos of fixed knot fence making machine:
