Mesh Width 2.4m Roll Length 45m Roof Construction Wire Mesh Welding
Machine
Wire Mesh Welding Machine Introduction:
Main machine ( wire mesh welding machine)
1. The wire mesh welding machine is the device that will position
the longitudinal line and horizontal line with pressure and power
welding to form solder joints.The service life of the upper contact
pressure spring is more than 10000000 times under the rated load.
2. Main motor adopts 5.5KW frequency conversion brake motor to
ensure welding pressure and speed.
3. Equipped with horizontal line detection device to ensure the
accurate position of horizontal line.
4. The power of a single welding transformer is 160KVA, with
cooling water circulation and temperature control detection switch,
to prevent the transformer from burning out.
5. The electrode block adopts chromium zirconium copper with
hardness HRB≥78 and conductivity ≥50MS/m. The specification is
35×35×18, and the working face can be used interchangeably to
improve the utilization rate of the electrode block.
6. The electrode holder adopts T2 copper square with conductivity
≥56MS/m to increase the conductivity of copper and copper and
extend the electrode life.
7. The electrode wire is made of T2 red copper row and cold forming
process to ensure welding quality and increase service life.
Longitudinal wire device
The vertical line system consists of feeding detection, double row
straightening wheel and wire tray. Double row straightening device
by two rows of straightening device each other 90 degrees to ensure
the quality of straightening.
Cross wire hopper device
Horizontal wire hopper is a kind of feeding device which will
straighten and cut the fixed length steel bar and send it to the
welding electrode position of the host machine according to the
welding needs.
Recycle pull mesh device
The circular and reciprocating drawing net is to pull the welded
horizontal line out of the grid according to the parameters set by
the program, and automatically cut off according to the set length
of the mesh. Mesh hook to achieve pneumatic lifting, reduce working
noise and damage to the mesh.
Control system
1. Main control cabinet operating platform (optional electrical
configuration according to customer requirements).
2. Adopt PLC programmable control system, touch screen operation
interface.
3. Each functional structure is equipped with fault detection
device, automatic alarm stop function.
4. Screen specifications and operating parameters of each mechanism
are set through the touch screen interface.
5. The welding current and time are set by the touch screen on the
main control cabinet.
Wire Mesh Welding Machine Technical Parameters:
| Item | Basic Parameters |
| Mesh width | 2.4m |
| Mesh length | 45m in roll mesh |
| Longitudinal wire diameter | 3-6mm |
| Horizontal wire diameter | 3-6mm |
| Longitudinal wire space | 50-250mm |
| Horizontal wire space | 25-300mm |
| Number of welding electrode | 48PCS |
| Main motor power | 7.5kw |
| Raw material | Galvanized wire,black wire. |
| Welding speed | 40-60 times/minute |
| Welding transformer | 160kva*6pcs |
| Longitudinal wire feeding method | Coil wire feeding automatically |
| Horizontal wire feeding method | Pre-cut feeding automatically |
| Welding press | By spring press |
| Adjust longitudinal wire space | By manual to move the welding electrode |
| Adjust horizontal wire space | By touch screen |
| Pulling mesh method | By servo motor to pull mesh |
| Welding capacity | 1. Wire diameter 3-4mm, each transformer with 8 welding electrodes,
Minimum mesh size 50*50mm
2. Wire diameter 4-5mm, each transformer with 6 welding electrodes,
minimum mesh size 75*75mm
3. Wire diameter 5-6mm, each transformer with 4 welding electrodes,
minimum mesh size100*100mm |
Wire Mesh Welding Machine Applications:
It is widely used in airport runways, highways, tunnels,
multi-storey high-rise buildings, water conservancy dam foundation,
sewage treatment ponds and so on.

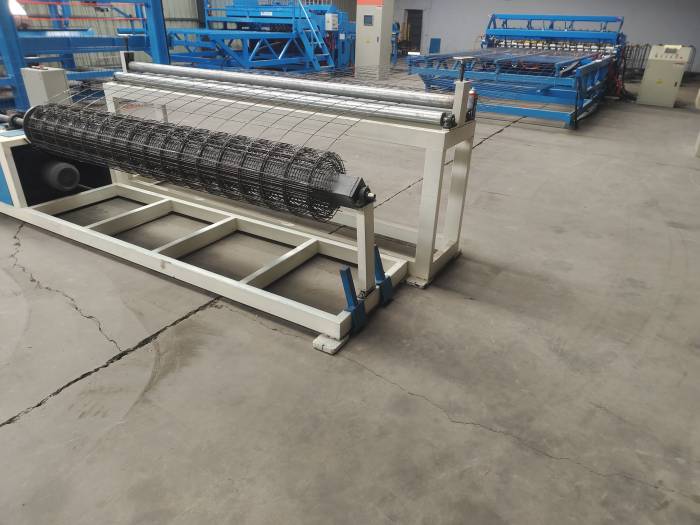

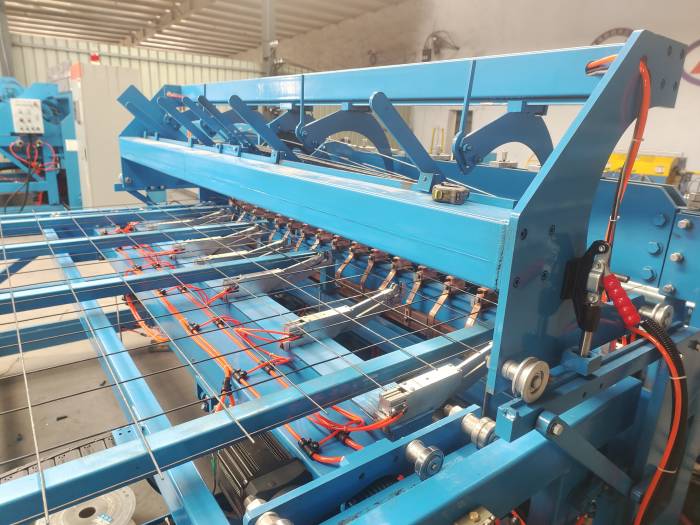

Wire Mesh Welding Machine Photos:
