Mesh Size Adjustable Length 12m Rebar Mesh Panel Production Line

Rebar Mesh Panel Production Line Introduction:

DX-GWC-2500 rebar mesh panel production line is a special equipment for making reinforcing mesh. The rebar mesh panel production line makes use of the principle of multi-electrode resistance spot welding to weld the longitudinal and transverse bars of the steel bar into a firm mesh according to the set requirements.

Rebar Mesh Panel Production Line Features:

1. The cross wire is pre-cut wire , cross wire by rotary automatic feeding.

2. Servo motor is used in the pulling mesh system to ensure the accuracy of mesh.

3. The cross wire of wire mesh welding machine feeding from the multi hopper which capacity is more over two times than the traditional hopper.

4. The rebar mesh panel production line add the bear wire mesh and carry equipment that makes the working more convenience .

5. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.

6. The rebar mesh panel production line adopts synchronous control technique. The cent control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.

Name: Connecting wire system:
Welding transformer and electrode are connected directly. The material used is copper plate, which greatly improves the welding efficiency.

Name: Cross wire feeding system
The cross wire of rebar mesh panel production line feeding from the multi hopper which capacity is more over two times than the traditional hopper.

Name: Reinforcing steel mesh stacker
Reinforcing steel mesh is designed with roller, and it can be placed neatly automatically.We can produce turnover Flip type steel mesh stacker.

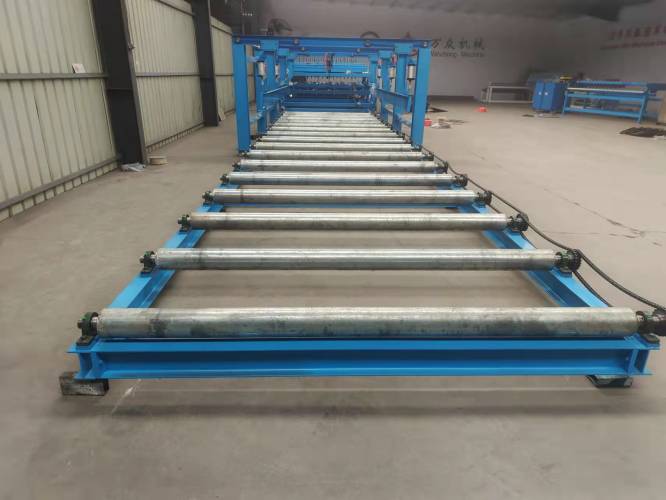

Name: Mesh Pull Out System

It consists of blanking plate,gantry,chain link mesh netting machine and convey car(or roller guide),the flipper(stacker-turner)is optional part.

Max length of mesh panel:12m.If the length of the reinforcing steel mesh is 12 meters or longer, it needs to be customized.

Name: CNC Mesh Position Unit

Mesh position unit usage is feed forward the welding mesh,at the same time ensure the line wire spacing in need,which adjust cross line spacing according to the automatic setting. CNC mesh position system can adjust the cross wire spacing automatically,and can save the data in the system, it is easy convenient and accuracy to adjust the cross wire spacing.

Rebar Mesh Panel Production Line Technical Parameters:

Rebar Mesh Panel Production Line Photos:
