Welding Speed 60 Times / Min Motor 18KW CNC Wire Mesh Welding Machine


Wire Mesh Welding Machine Introduction:

DX-GWC-2500 CNC wire mesh welding machine is a special equipment for making reinforcing mesh. The wire mesh welding machine makes use of the principle of multi-electrode resistance spot welding to weld the longitudinal and transverse bars of the steel bar into a firm mesh according to the set requirements. This wire mesh welding machine can be used for cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar.

The wire mesh welding machine is composed of welding mechanism, longitudinal reinforcement, transverse reinforcement feeding mechanism, mesh stepping mechanism, mesh and conveying mechanism, pneumatic system, electrical control system, cooling system and other components.

Wire Mesh Welding Machine Features:

1. Welding mesh machine system (including welding system, pneumatic system, water circulation system)
1. The maximum width of mesh panel can be 2.5m, Welding electrode: 24PCS.
2. Multiple adjustment of longitudinal bar spacing of 100mm, 150mm, 200mm, 300mm or more.
3. The welding transformer adopts the latest technology vacuum epoxy casting, which is different from the general welding transformer.
4. The welding transformer adopts forced water cooling technology to ensure long-term continuous use. Theoretically, as long as the cooling water is continuous, the service life can be as long as the equipment.
5. The welding transformer is controlled by coarse and computer fine adjustment, which can automatically lock the welded steel bar of each specification, especially the hot rolled ribbed steel bar.
6. The current of the welding transformer is targeted accurately, which makes the welding of cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar have small spark and firm welding.
7. The diameter of welded steel bar is φ 6~ φ 12mm, and the welding speed is 45-65 times per minute.

2. Transverse reinforcement storage mechanism and CNC pull mesh system:
1. The transverse bar storage mechanism consists of transverse bar storage and automatic blanking.
2. The maximum amount of transverse rib storage material is about 1 ton.
3. Automatic blanking adopts automatic sorting system, accurate and in place.
4. Automatic induction of reinforcement quantity.
5. Automatic induction of steel bar number, and automatic step.
6. Automatic induction of steel reinforcement, forced automatic step.

3. CNC pulling mesh system:
1. CNC pulling mesh system adopts international advanced servo drive control mode.
2. Adopt Japanese famous brand full digital servo motor and servo controller, the spacing of transverse bars can be adjusted arbitrarily, and the size is accurate.

4. Automatic pulling mesh mechanism and automatic mesh out system:
1. After welding, the automatic manipulator will pull out all the mesh pieces. (No need to manually pull the net)
2. When the pulled mesh is detected in place on the flip plate, the flip plate will automatically turn down and the mesh will automatically fall off
To conveyor raceway.
3. In the racetrack mesh can be rolled out individually, but also according to customer requirements set more than one roll out, do not stop the network, continuous production, save labor and time, greatly improve production efficiency.
4. When there are more than one mesh on the raceway, it can automatically push the mesh together and put out the mesh in piles.
5. Raceway configuration is 12 meters, the longest mesh finished product is 6 meters. (Special requirements can be customized)
5. Computer control system:
1. CNC servo system adopts panasonic servo control system imported from Japan.
2. The numerical control operating system adopts industrial LCD screen with keyboard and mouse, which is easy to operate and cheap to use.
3. All security protection functions to maximize the safety of operators and equipment.
4. Through accurate calculation to control two reinforcement welding network machine with a welding transformer, so as to achieve the most economic power consumption for users.
5. Control welding current through scientific calculation, so as to achieve the lowest power consumption of the company's equipment under the same conditions.

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Applications:

The application of steel mesh in industrial and civil housing beam column floor, roof, wall, concrete pavement, bridge pavement, airport runway, tunnel lining and other fields.

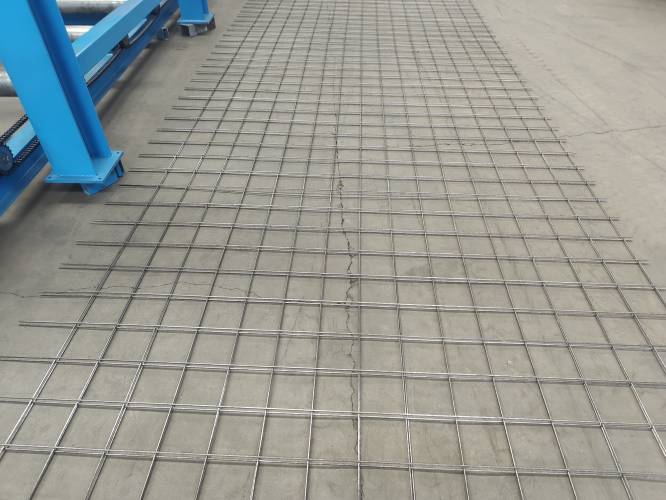

Wire Mesh Welding Machine Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
