Mesh Size 100*100mm Motor 18KW Reinforcing Mesh Welding Production Line

Reinforcing Mesh Welding Production Line Introduction:

Reinforced mesh welding Production Line adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.

Reinforcing Mesh Welding Production Line Features:

1. The control cabinet adopt touch screen and keyboard, you can change welding time and cross wire hole mesh size through touch screen. And has language in English.

2. The cross wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The store device has more capacity can load max 1.5tons rebar.

3. Adjustable distance of longitudinal wire that allows different opening size between the longitudinal wire, when input the distance of cross wire to computer, any mesh opening can be reach. Welding mesh hole size can adjust randomly within range.

4. Mesh pulling system is controlled by Panasonic servo-motor that adopts elastic tension and opening positioning mesh, which improves precision of mesh opening size.

5. The reinforcing mesh welding production line equips with 12 pieces of typical and efficient water-cooling welding transformers, 150KVA*12PCS (24 pcs of water cooling electrodes) ——every two welding electrodes need a water cooling welding transformer.

6. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

7. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

8. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

9. Wire feeding way:The longitudinal wires and cross wires should be pre-straightened and pre-cut. The longitudinal wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by Panasonic servo motor.

10. can be welded cold rolled ribbed steel bar, hot rolled ribbed steel bar, hot rolled disk steel bar, cold rolled light circle and other materials, wide adaptability.

11. Welding transformer, SCR, upper and lower electrode welding system adopts forced water cooling and flow protection device, the unit can reliably work continuously.

12. According to the user's capacity, the use of one or two welding, flexibility.

13. Blanking device adopts mechanical transmission, reduce labor intensity, improve production efficiency.

14. Automatic positioning of the length of the network cutting mechanism, accurate cutting of the network.

15. Longitudinal reinforcement design with wire splitter, flexible and convenient mesh change, to ensure the accuracy of finished mesh.

16. Unique lifting mechanism, lift off the electrode when the mesh is dragged, to ensure the service life of the electrode

17. Longitudinal reinforcement with storage mechanism, can ensure the quality of continuous feeding

18. Longitudinal and horizontal straightening mechanism is adopted to ensure the straightness of the wire and the beauty of the net.

19. The unit can be separated structure, convenient specification adjustment and maintenance.

Reinforcing Mesh Welding Production Line Technical Parameters:

Reinforcing Mesh Welding Production Line Applications:

Reinforcing mesh has a wide range of applications, and is widely used in highway construction, bridge construction, tunnel construction and other aspects of the construction.

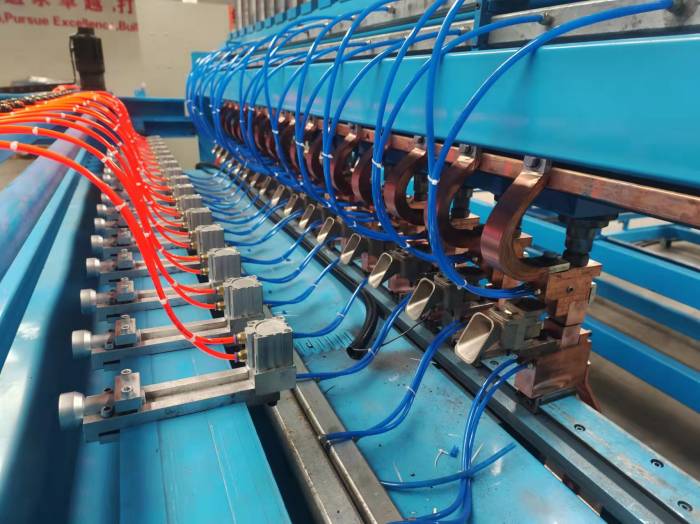

Reinforcing Mesh Welding Production Line Photos:
