Hole Size 1/4 Inch Main Motor 4.0kw Electric Welded Wire Mesh
Machine
Electric Welded Wire Mesh Machine Introduction:
Electric welded wire mesh machines is used for making roll type
welded wire mesh, usually use thinner wire.this kind of roll wire
mesh is characterized by flat mesh surface, uniform mesh, firm
welding joints, good local machining performance, stability and
good corrosion resistance the commonly used wires are galvanized
wire, hot-dip galvanized wire, black iron wire, etc.Our electric
welded wire mesh machine can be customized as customer required
different specification.
Electric Welded Wire Mesh Machine Features:
1. Both line wire and cross wires are fully automatic wire feeding
through the wire reel.
2. The mesh roll length can be set by the control panel.
3. You can produce two rolled wire mesh at the same time, just
adjust the cutter position.
4. We can easily adjust the welding current when we need to weld
different wire diameters.
5. Machinery can be equipped with flat mesh system if you need to
produce flat wire mesh.
6. We can set the output on the counter, and the machine will stop
automatically after production.
Electric Welded Wire Mesh Machine Technical Parameters:
Model | DX-DHW-1200 | DX-DHW-1500 | DX-DHW-1800 | DX-DHW-2100 |
Mesh width | Max.1200 mm | Max.1500 mm | Max.1800 mm | Max.2100 mm |
Mesh hole size | 1/2" (12.7 mm) 3/4" (19.05 mm)
1" (25.4 mm)
2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm)
1" (25.4 mm)
2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm)
1" (25.4 mm)
2" (50.8 mm) | 1/2" (12.7 mm) 3/4" (19.05 mm)
1" (25.4 mm)
2" (50.8 mm) |
Wire diameter | 0.4 mm~0.7 mm 0.7 mm~1.3 mm
1.1 m~2.0 mm | 0.6 mm~1.0 mm 1.0 mm~1.4 mm
1.4 mm~2.0 mm | 0.7 mm~1.2 mm 1.2 mm~-1.4 mm
1.4 mm~2.0 mm | 0.7 mm~1.2 mm 1.2 mm~1.5 mm
1.5 mm~2.0 mm |
Welding speed | 60-150 Times/min | 60-120 Times/min | 60-100 Times/min | 60-100 Times/min |
Transformer | | | | |
Dimensions | 2.8 X 1.6 X 1.65 m | 3.2 X 1.6 X 1.65 m | 3.5 X 1.6 X 1.65 m | 3.8 X 1.6 X 1.65 m |
Weight | 3400 KG | 3700 KG | 4000 KG | 4500 KG |
Electric Welded Wire Mesh Machine Applications:
It is widely used in industry, mining, agriculture, construction,
transportation, such as the animal fence, window guard, channel
fences and decorations.

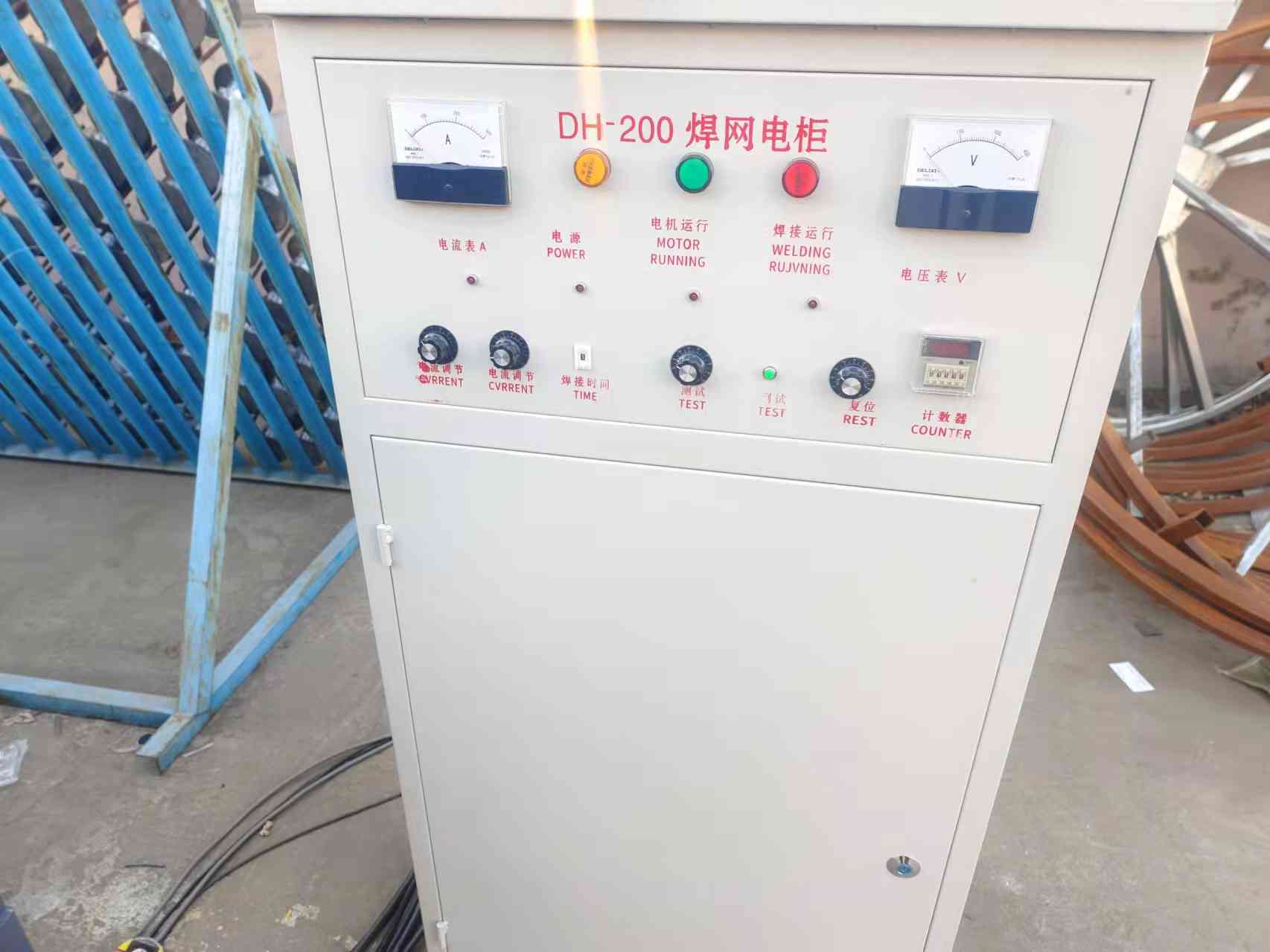

Electric Welded Wire Mesh Machine Photos:
