Reinforcing mesh welding line, also called BRC mesh welding
machine, Construction mesh welding machine.
The reinforcing mesh welding machine is used to make steel rebar
mesh, road mesh, building construction mesh, etc. With more than
20years experience in design and manufacture, our reinforcing mesh
welding machine is featured by high capacity, easy operation, and
precise control.
Reinforcing Mesh Welding Machine Features:
1. The main frame of reinforcing mesh welding machine is welded
with thick steel plate and section bar, making the main structure
more solid and compact for high production china supplier full
automatic brick force rebar mesh making welding machine good price.
2. Longitudinal wire loop and balance system to ensure wire mesh
accuracy.
3. The reinforcing mesh welding machine welding adopts latemodel
efficient welding transformer. The voltage adjusting range is big
which enlarge the range of wire diameter size. It is adjusted
through the electricity current button on the front panel.
4.This reinforcing mesh welding machine adopts synchronous control
technique.
5.The mesh pulling system is controlled by servo motor, which makes
the pulling mesh aperture morestandard and accurate.
6.This reinforcing mesh welding machine is used for fence 4~8mm. It
is an automatic welding equipment designed and manufactured by
ourselves absorbing advanced resistance welding technology from
home and abroad.
7. The control system adopts Japan Panasonic PLC,Input front-panel
is Weinview touch screen very easy to operate.
8. The cross wire feeding hopper device has more capacity can load
100kg rebars. And the cross wire hopper device is controlled by
stepping motor.
9. The upper and down welding electrode is square size. Has 6
sides. Can be used for at least 6 months. And the welding
electrodes are water cooling. The service life longer.
Reinforcing Mesh Welding Machine Technical Parameters:
| Model | DX-GWC-2000D | DX-GWC-2500D |
| Width of mesh | Max.2000mm | Max.2500mm |
| Wire diameter | 4-8mm | 4-8mm |
| Length of mesh | 3-12m | 3-12m |
| Longitudinal wire space | 100-250mm | 100-250mm |
| Cross wire space | 50-300mm | 50-300mm |
| Number of welding electrode | 20PCS | 26PCS |
| Welding transformer | 160KVAX5PCS | 160KVAX6PCS |
| Welding speed | 40-70 times per min | 40-70 times per min |
| Main motor power | 7.5KW | 7.5KW |
| Labor required | 2 workers | 2 workers |
| Machine weight | 4.8T | 5.5T |
| Machine dimension | 7500*2700*1700mm | 7500*3300*1700mm |
| Pulling mesh system | By servo motor | By servo motor |
| Size of machine workshop | 20m*7m | 20m*7m |
Reinforcing Mesh Welding Machine Applications:
make steel rebar mesh, fence mesh, road mesh, building mesh, etc.

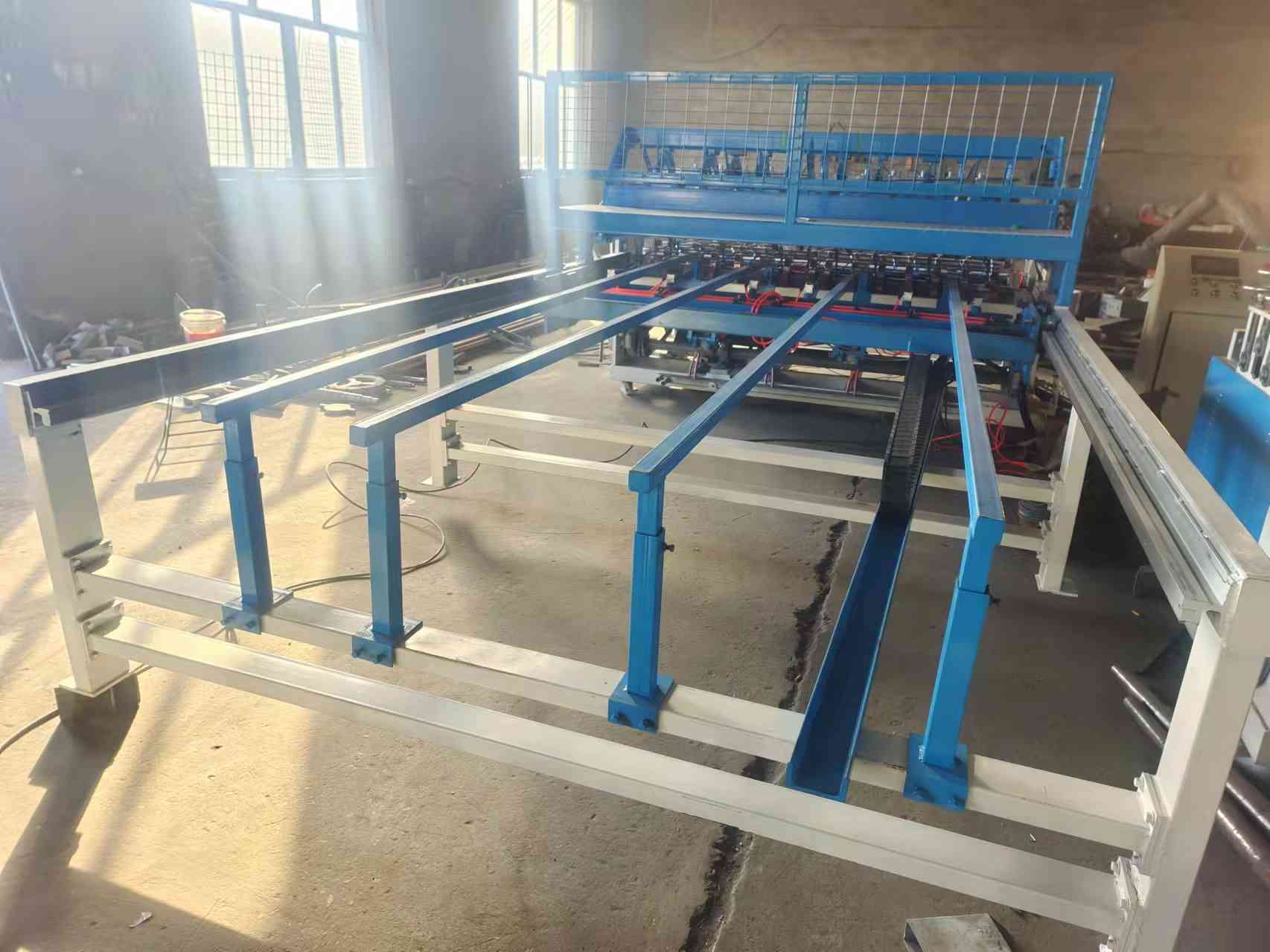

Reinforcing Mesh Welding Machine Photos:
