Wire Diameter 3-6mm Hole Size:50-200mm Fence Mesh Welding
Production Line
Fence Mesh Welding Production Line Intorudction:
Modern manufacturing processes call for innovative machinery,which
are able to operate in a highly efficient and very reliable manner,
in order to meet the high standard of economic operation, The
full-automatic fence mesh welding production line is a new research
and development project.
Fence Mesh Welding Production Line Features:
1. Main welding machine is a device, which to weld the mesh based
the longitudinal wire and cross wire through voltage.
welding portal with upper and lower beam to accommodate the welding
cylinders and lower electrode holder in dovetail guides-adjustment
the cylinders and electrodes holders according to longitudinal wire
spacing.
2. The fence mesh welding production line will stop in case of
missing wires or incorrect insertion.
Welding transformer power 160KVA with water cooling system , in
case of burning the power under high temperature running .
Height adjustment of the upper and lower beam for setting the
optimum electrodes stroke and for optimum use the electrodes
Easy infinitely positioning of the welding cylinders by opened
welding portal by hexagonal screws. Adjustable magnets for
positioning the ejected cross wires- electronic monitoring of the
cross wire before each welding.
3. The fence mesh welding production line works with pre-cut line
wire feeding, Short changeover times ensure maximum flexibility in
day -to -day production. Additional advantages of the mesh welding
machine result from the high degree of user-friendly maintenance
and low maintenance costs. Adopt 2 sets line wire place device for auto falling the line wires,Left design instead the right falling wire device, based the client
feedback that the line wire feeding not smoothly ,we design the
wire row falling mode instead the turn plate carrying wire. push the line wire into the welding position when line wire
located.
4 .Cross wire feeding device with hopper
The cross wire need pre-cut by wire straightening and cutting
machine. This cross wire hopper, mounted on wheels to be moved from portal,
for automatic sorting out, separating ,positioning and ejecting of
the straightened wire materials. will adopt servo motor control the wire falling ,more accuracy
control the falling time. the storage device could load roughly 1 ton wire material, will
auto full fill the storage wire into the auto falling hopper
5. Mesh bending device
Set the cut value or location on the control box, the bending
machine will bending the mesh as sheet when up to the set value .
--- with mesh press device, reduce mesh shaking during bending.
---curve shape control by mold.
---automatic curve according the requirement.
---adopt big tonnage against quick bending speed.
---Particularly design the mesh output device instead the mesh
collect car, which transfer the mesh from the left or right when up
to the set mesh sheet quantity.
Fence Mesh Welding Production Line Technical Parameters:
| Model | DX-GWC-2000A | DX-GWC-2500A |
| Wire diameter | 3-6mm | 3-6mm |
| Width of fence mesh | 2000mm | 2500mm |
| Length of fence mesh | Max 3000mm | Max 3000mm |
| Welding speed | 75-85 times per min | 75-85 times per min |
| Longitudinal wire space | 50-200mm | 50-200mm |
| Cross wire space | 50-200mm | 50-200mm |
| Pulling mesh system | By servo motor | By servo motor |
| Bending fence width | 2000mm | 2500mm |
| Bending pressure | 100 tons | 100 tons |
| Total weight | 7.8T | 8.5T |
| Overall dimension | 15*3*2.2m | 15*4*2.2m |
Fence Mesh Welding Production Line Applications:
Fence mesh welding production line is used to make fence mesh, road
mesh, reinforcing mesh, shelf, explosion-proof wall etc.

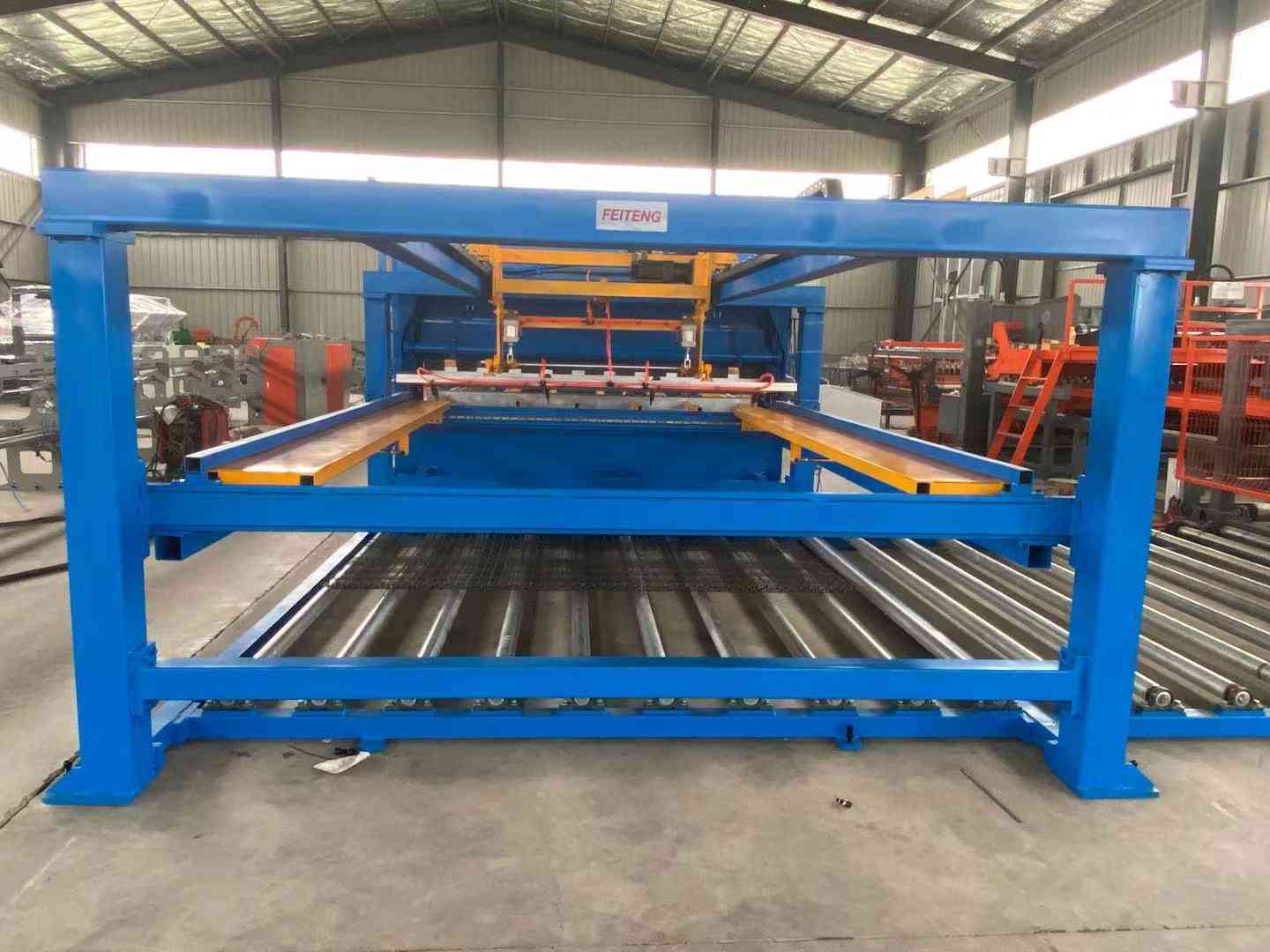

Fence Mesh Welding Production Line Photos:
