Construction Mesh Cross Wire Space 50-200mm Wire Mesh Welding Machine

Wire Mesh Welding Machine Introduction:

Wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate. Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable. The biggest advantage of this system is more than 30 different mesh sizes can appear on same sheet. New and high efficient welding transformer expands welding scope of wire diameter. Easy operation, high flexibility and output achieve a perfect welding machine.

Wire diameter: 3-6mm

Welding width: 2500mm/customize
Line wire space: 50-300mm

Cross wire space: 50-300mm

Mesh product: mesh sheet/panel

Wire Mesh Welding Machine Features:

1. Control system: Panasonic (Japan) PLC program and HMI. Input front-panel is Weinview touch screen, very easy to operate.

2. Holding wire platform: One pc holding wire platform.used for putting the line wire for materials. The platform distance can be adjusted

3. Cross wire feeding: Hopper device for cross wires, has more capacity and is controlled by step motor, it works automatic.

4. Slot tunnel for longitudinal wire: Slot tunnel device for line wires, can be adjusted for different wire diameters. the mesh aperture is very accurate.

5. Mesh pulling system: It is controlled by Panasonic (Japan) servo motor.Pulling position is accurate.

6. Welding electrode: Welding electrodes are made of pure red copper and chromised bronze, durable, can be used at least 3-6 months

7. Adjustment plug: Adjustment plug is used to adjust distance of welding spot and make different mesh opening.

8. Welding transformer: The wire mesh welding machine has 6 pcs welding transformers. Each welding transformer capacity is 160KVA. Which is enough capacity to weld 3-6mm steel wire.

9. Each welding transformer is controlled by seperate microcomputer. Once press with multiple welding. Over 30 different mesh sizes can appear on same sheet.

10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

11. Longitudinal wires feed automaticly and fastly. Feeding position is accurate.

12. Cross wires feed automaticly. Feeding position is accurate.

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Applications:

The wire mesh is used for coal mine roof protection, tunnel, bridge construction, subgrade mesh bars, highway fence, railway fence, construction site construction materials.

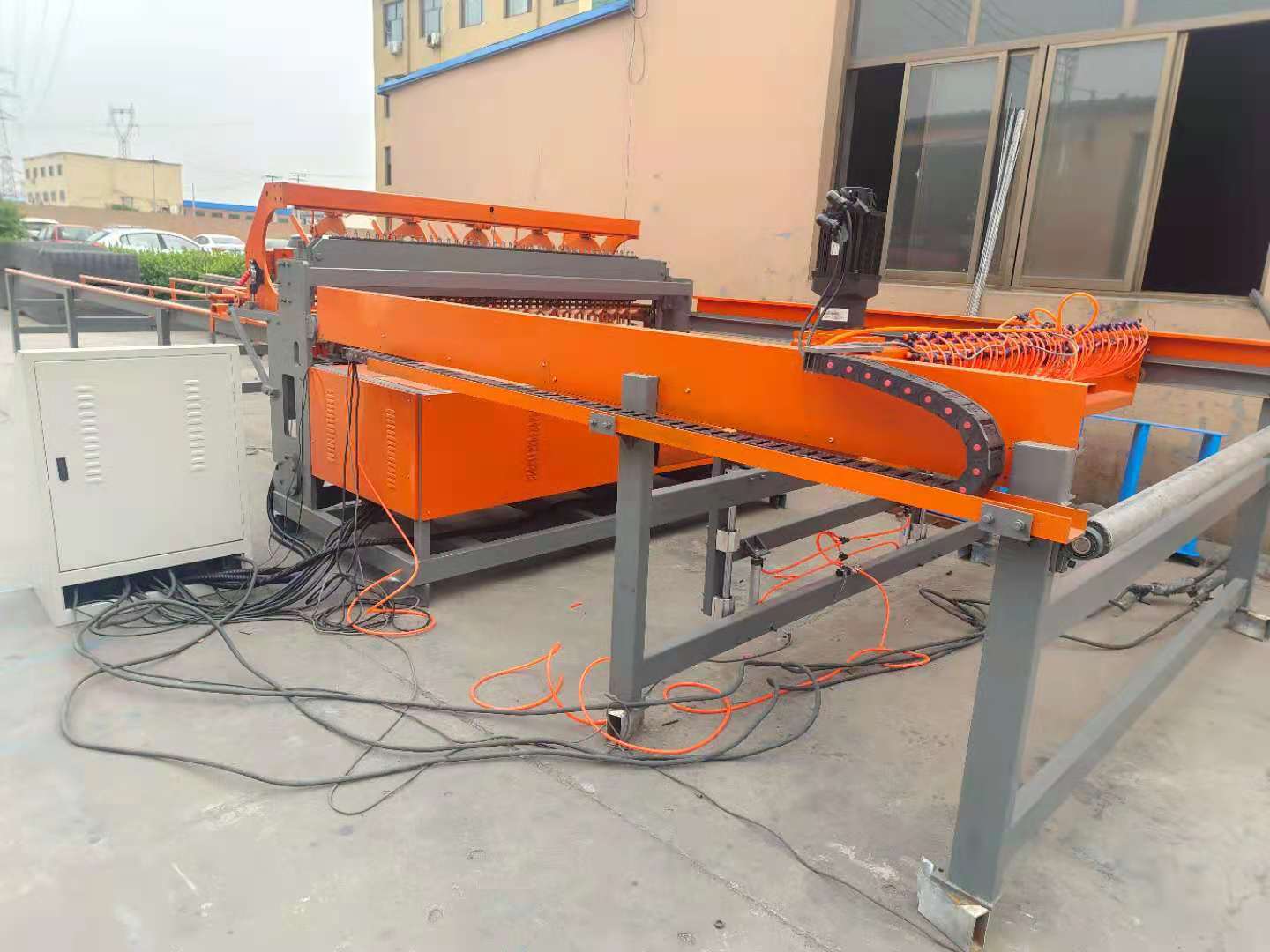

Wire Mesh Welding Machine Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
