6-12mm Construction PLC Concrete Reinforcing Wire Mesh Welding Machine

Introduction of Concrete Reinforcing Wire Mesh Welding Machine:

1. Welding power

Welding pressure are provided by pneumatic pressure system, uniform pressure and stable performance.

2. Feeding and Welding System

Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one.

3. Line wire feeding:

Line wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.

4. Water cooling system

The Concrete Reinforcing Wire Mesh Welding Machine adopts water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.

5. Mesh pulling system

The Concrete Reinforcing Wire Mesh Welding Machine adopts servo motor to pull the mesh panel repeat to achieve more precision mesh aperture.

6.Controlling system

The Concrete Reinforcing Wire Mesh Welding Machine Control cabinet adopt PLC control system though touch screen operate system, you can change welding time, or electricity , mesh opening size by print numbers through touch screen.

Technical Parameters of Concrete Reinforcing Wire Mesh Welding Machine:

Applications of Concrete Reinforcing Wire Mesh Welding Machine:

Suitable materials: Stainless steel wire, low-carbon steel wire, galvanized wire, iron wire, rebar

The mesh application: Mesh for building huge factory, bridge, road, highway, subway.

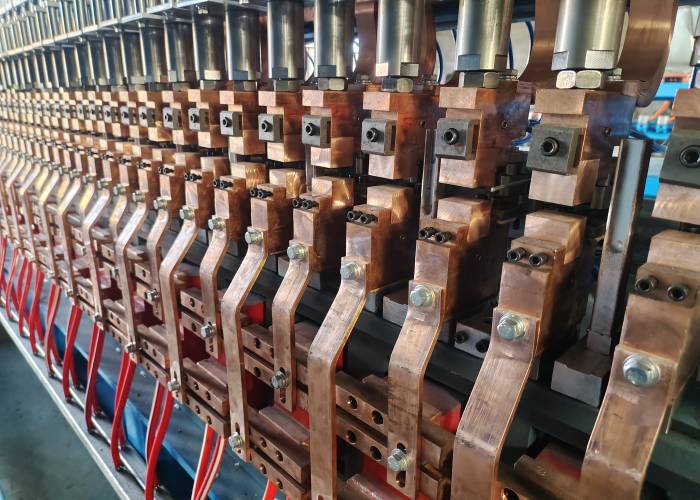

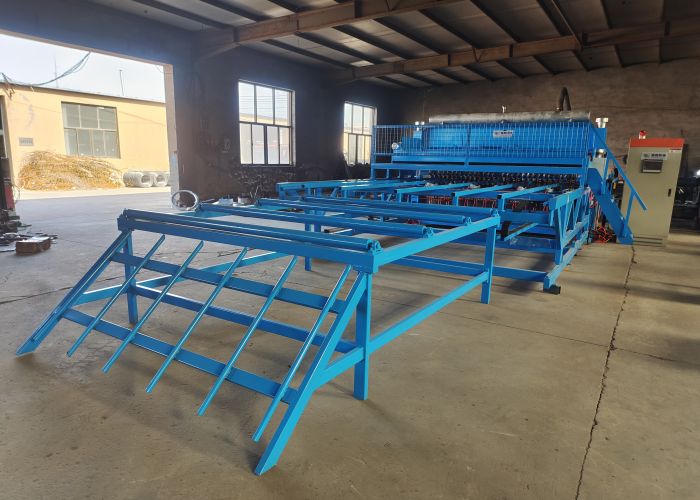

Photos of Concrete Reinforcing Wire Mesh Welding Machine:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
