Transformer 200KVA PLC Reinforced Steel Bar Mesh Panel Welding
Machine
Introduction of Reinforced Steel Bar Mesh Panel Welding Machine:
This is our new developed pneumatic reinforcing steel bar mesh
panel welding machine . The welding speed can be up to maximum 80
times/min.It has advantage of easier machine maintenance, less
machine problem, easier to learn and operate, save power and
consumption, less welding spark etc.
1.This line adopt special welding process ,Efficient water cooling
system and precision welding control system and high quality copper
alloy electrodes with unique appearance.
2.The line wire and the weft wire of wire mesh welding machine are
pre-straight and pre-cut.
3.The line wire is feeding by the servo motor ,pulling the wire net
by the servo motor auto.
4.The reinforced steel bar mesh panel welding machine welding power
comes from the air cylinders. It's easy to control the welding
pressure .
5.The weft wire of wire mesh welding machine feeding from the multi
hopper which capacity is more over ten times than the traditional
hopper.
6.The reinforced steel bar mesh panel welding machine added the
bear wire net and carry equipment that makes the working more
convenience .
7.The welding part of wire mesh welding machine is used the
springiness input wire trunking that makes the welding copper use
for long time.
8.This reinforced steel bar mesh panel welding machine adopts
synchronous control technique. The cent-control and welding time
are composed of PLC program system. The input front-panel is touch
screen , the operate is more intelligent and reasonable.
Features of Reinforced Steel Bar Mesh Panel Welding Machine:
1. Welding cylinder.
The welding cylinder is specially customized, with fast and stable
action. The most important thing is to prolong the service life to
a great extent.
2. Machine parts.
All mechanical parts, pipes, bolts, fixtures and connecting devices
are standard parts. We can easily provide mechanical accessories.
3. Adjust the mesh
The welding wire diameter range of the device is 6-12 mm, the mesh
size is 100-300 mm, step-less adjustable. The maximum width of the
welding wire mesh is 3000 mm (also according to customer
requirements).
4. Alarm device
There is an alarm device on the welding host that can improve the
safety level and reduce the failure rate. The greatest degree of
assurance of the equipment running smoothly.
5. Servo motor
Welding system uses servo motor control, works accurately and use
process does not produce sludge, has little effect on the
environment. All key components are well-known brands, and the
quality of the procurement system is in full accordance with
ISO9001 standards. And comply with EU safety certification
standards.
6. Smart Operation
System equipment can and desktop computers or notebook computers or
workstations are connected. Easy operation. The greatest degree of
raw material savings for customers. Improve production efficiency,
and intelligent management.
Technical Parameters of Reinforced Steel Bar Mesh Panel Welding
Machine:
| Model | DX-GWC3000B |
| Wire diameter | 6-12mm |
| Max.Weld wire diameter | 12+12mm |
| Mesh size | from 100*100mm to 250*250mm |
| Length of mesh panel | 3-12m |
| Number of welding electrode | 30 pcs |
| Welding transformer | 200KVA*30pcs |
| Pulling mesh way | By servo motor |
| Line wire type | Pre-cut |
| Cross wire type | Pre-cut |
| Control system | PLC and touch screen |
| Machine weight | 10T |
| Floor space | 25*6m |
| Power transformer | 300KVA |
| Production capacity | 35 tons at 10 hours |
Applications of Reinforced Steel Bar Mesh Panel Welding Machine:
The reinforcing mesh used in Bridges and highway to strengthen
building strength and prevent engineering cracking.

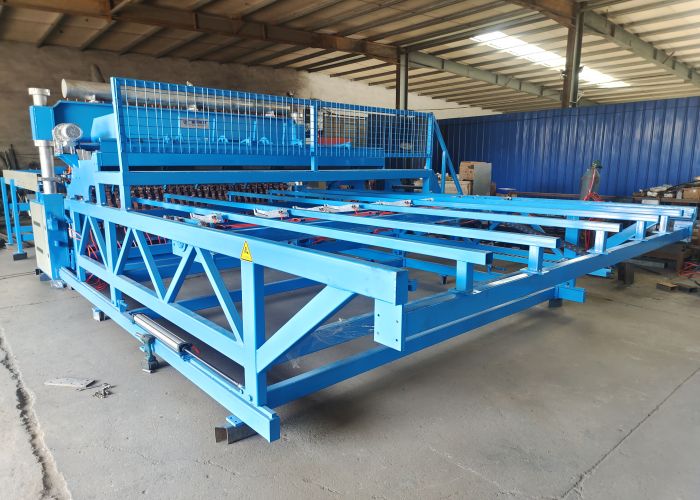

Photos of Reinforced Steel Bar Mesh Panel Welding Machine:
