Mesh length 6m Turn Over Mesh Siemens PLC Wire Mesh Welding Machine

Introduction of Wire Mesh Welding Machine:

1. This wire mesh welding machine is a kind of automatic special welding machine which can automatically process and weld round steel plate into steel mesh.

2. The mesh stepping mechanism is controlled by CNC servo motor, with high accuracy and easy adjustment.

3. Automatic measuring cutting mechanism, fast speed, high precision, good quality.

4. Welding electrode height adjustable, long service life.

5. The weft wire is tested in place to avoid missing welding and ensure the quality of the mesh.

Features of Wire Mesh Welding Machine:

1. Longitudinal wire and weft wire can automatic feeding, automatic straightening, automatic feeding, automatic welding, automatic pulling out, automatic cutting, automatic turn over mesh, automatic push together, automatic roll out.

2. The whole machine adopts computer and programmable controller control, high degree of automation.

3. Imported automatic digital servo motor system to ensure accurate mesh size.

4. The wire mesh welding machine can weld galvanized wire,low carbon wire.

5. The welding system of transformer, thyristor, upper and lower electrode adopts forced water cooling and is equipped with flow protection device. The unit can work continuously and reliably.

6. According to the user's power capacity, the use of one or multiple welding, flexibility.

7. The blanking device adopts mechanical transmission to reduce labor intensity and improve production efficiency.

8. Automatic positioning network long shear mechanism, accurate cut off the mesh.

9. The longitudinal bar is designed with line divider, and the changing mesh is flexible and convenient to ensure the accuracy of the finished mesh.

10. Unique lifting mechanism, mesh drag to lift away from the electrode, to ensure the electrode life

11. The longitudinal bar has a material storage mechanism, can ensure the quality of continuous material supply.

12. Longitudinal line using longitudinal and transverse straightening mechanism, to ensure the straightness of the wire, ensure the beauty of the mesh.

13. The unit adopts separable structure, convenient specification adjustment and maintenance.

Advantages of Wire Mesh Welding Machine:

The wire mesh welding machine adopts Siemens servo motor control and Siemens PLC touch screen control, to ensure the smooth and accurate working process, so that human-computer interaction is easier. This machine conforms to Chinese ISO90001 standard and European Union safety certification standard.

Technical Parameters of Wire Mesh Welding Machine:

Applications of Wire Mesh Welding Machine:

Wire Mesh is mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, building floor, roof, wall, floor, concrete pipe, ground pile and other aspects.

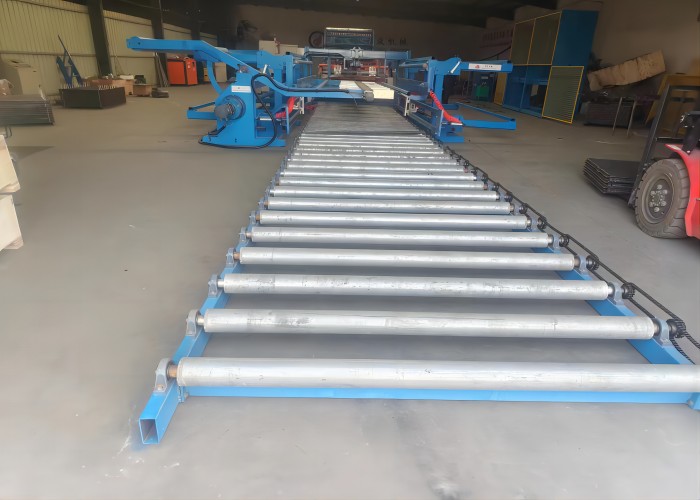

Photos of Wire Mesh Welding Machine:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
