Welding Speed 65 Times / Min Width 2m Wire Mesh Welding Production Line

Introduction of Wire Mesh Welding Production Line:

The wire mesh welding production line adopts synchronous control technology, welding time and controlled welding are composed of PLC digital system, input panel for touch screen or key two, more intelligent operation, rationalization. The controller has the advantages of single compaction and multiple welding. The biggest advantage of the controller is that different sizes of holes between weft and weft can appear in the same network. Welding adopts a new high-efficiency welding transformer, which can be divided into eight levels to expand the range of welding wire diameter. Easy to operate, high flexibility, is artificial spot welding machine several times the output.

Advantages of Wire Mesh Welding Production Line:

1. Feeding wire way: the longitudinal wire adopts rotary plate blanking, the blanking position is accurate, and the filling wire falling detection device can detect whether the filling wire falls in place. If it does not fall, the machine will stop automatically to prevent wire leakage.

2 Wire feeding mode: using disk material mode, to ensure the continuous production of the welding machine, high output and labor saving.

3. Net drawing mode: servo motor is used to pull the net round-trip, and hooks are used to tighten the weft wire to ensure the accurate position of the net drawing.

4 mesh cutting mode: The use of high-precision shearing machine, and the overall operation of the welding machine is closely combined to ensure the accuracy of mesh cutting.

Features of Wire Mesh Welding Production Line:

1. The control system adopts synchronous CNC technology, PLC program. It is easy and convenient to operate with the touching screen.
2. The cross wire is controlled by stepping motor to drop wire automatic, the cross wire hopper device can load 150kg wires. Save labor strength.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any mesh size can be reach. Such as: you want to make mesh size 100*100mm. Length of mesh panel 3m. Input the mesh size and quantity of mesh size into the computer. The cutting mesh machine will cut the mesh panel every 3m. As the cutting mesh machine is controlled by the control cabinet.
4. Mesh pulling system is controlled by servo motor and air cylinder, Pull mesh size is more accurate.
5. The machine adopts an integrated water-cooling transformer, whose voltage is 160 KVA. The welding transformer is water-cooling.

Welding transformer:160KVA*6 PCS (26 welding electrodes) ——every 4 welding electrodes need a water cooling transformer.

6. The machine uses a copper sheet to connect the welding head and the transformer. Has a long service life.
7. Wire feeding way:The longitudinal wires are feeding from coil wire automatic.The longitudinal wire through straightening line wire device to make wire straighten. And cross wires should be pre-straightened and pre-cut by wire straightening cutting machine. The worker put the cross wire into the hopper device. Cross wire drop wire automatic.

8. The power transformer must be at least 120KVA to supply machine running and the distance between the power transformer and the machine within 100m.

9. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

10. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

11. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

Technical Parameters of Wire Mesh Welding Production Line:

Applications of Wire Mesh Welding Production Line:

The wire mesh welding production line is widely used in the welding of railway fence mesh, highway fence mesh and bridges.

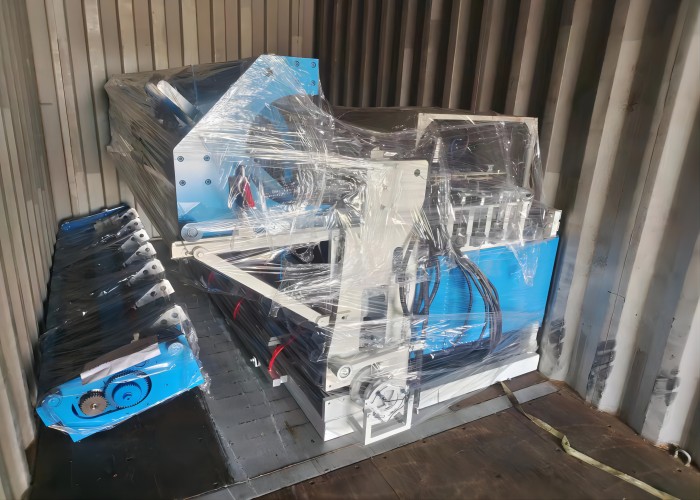

Loading Photos of Wire Mesh Welding Production Line:

Photos of Wire Mesh Welding Production Line:
