Road Construction Hole Size 150*150mm Wire Mesh Welding Machine

Introduction of Wire Mesh Welding Machine:

The wire mesh welding machine adopts synchronous control technology, welding time and controlled welding are composed of PLC digital system, input panel for touch screen or key two, more intelligent operation, rationalization. The controller has the advantages of single compaction and multiple welding. The biggest advantage of the controller is that different sizes of holes between weft and weft can appear in the same network. Welding adopts a new high-efficiency welding transformer, which can be divided into eight levels to expand the range of welding wire diameter. Easy to operate, high flexibility, is artificial spot welding machine several times the output.

Advantages of Wire Mesh Welding Machine:

1. Feeding wire way: the longitudinal wire adopts rotary plate blanking, the blanking position is accurate, and the filling wire falling detection device can detect whether the filling wire falls in place. If it does not fall, the machine will stop automatically to prevent wire leakage.

2 Wire feeding mode: using disk material mode, to ensure the continuous production of the welding machine, high output and labor saving.

3. Net drawing mode: servo motor is used to pull the net round-trip, and hooks are used to tighten the weft wire to ensure the accurate position of the net drawing.

Features of Wire Mesh Welding Machine:

1. The control system adopts synchronous CNC technology, PLC program. It is easy and convenient to operate with the touching screen.
2. The cross wire is controlled by stepping motor to drop wire automatic, the cross wire hopper device can load 150kg wires. Save labor strength.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any mesh size can be reach. Such as: you want to make mesh size 100*100mm. Length of mesh panel 3m. Input the mesh size and quantity of mesh size into the computer. The cutting mesh machine will cut the mesh panel every 3m. As the cutting mesh machine is controlled by the control cabinet.
4. Mesh pulling system is controlled by servo motor and air cylinder, Pull mesh size is more accurate.
5. The machine adopts an integrated water-cooling transformer, whose voltage is 160 KVA. The welding transformer is water-cooling.

Welding transformer:160KVA*6 PCS (26 welding electrodes) ——every 4 welding electrodes need a water cooling transformer.

6. The machine uses a copper sheet to connect the welding head and the transformer. Has a long service life.

Technical Parameters of Wire Mesh Welding Machine:

Applications of Wire Mesh Welding Machine:

The wire mesh welding production line is widely used in the welding of railway fence mesh, highway fence mesh and bridges.

Loading Photos of Wire Mesh Welding Machine:

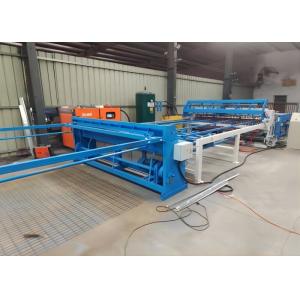

Photos of Wire Mesh Welding Machine:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
