Servo Motor Pull Mesh PLC Road Mesh Width 2.5m Wire Mesh Welding Machine

Introduction of Wire Mesh Welding Machine:

This wire mesh welding machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.after the mesh roll is bundled.

Features of Wire Mesh Welding Machine:

1. The mesh size is directly set on the touch screen, which is convenient and simple.

2. Vibration device is added to the cross wire feeding system to prevent wire winding.

3. The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.

4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5. The mesh roll length can be set by the control panel.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. We can set the output and stop the machine automatically after the mesh production finished.
8. The finished product roll mesh is smooth and the error of opposite angle line is small.

Advantages of Wire Mesh Welding Machine:

Pull mesh system.

The mesh pulling system adopts servo motor, which can improve the accuracy of mesh size and make the mechanical operation more smooth.

Anti reverse device.

Each line wire is equipped with a device to prevent the line wire from backing up, so as to ensure that the grid is neat and beautiful when the machine stops.

Electrode and copper base.

The electrode and copper base are all made of high chromium copper, which is a special alloy material with wear resistance and high temperature resistance. Increase the service life of the electrode.

Connecting copper block.

The connection between transformer and electrode uses copper block instead of soft copper leaf, which has better quality and conductive effect.

Longitudinal wire straightening wheel.

Each line wire will pass through the straightening wheel, which can make the mesh more flat and beautiful.

Cross wire feeding system moving device.

The engineer specially added a mobile device to the cross wire feeding system, which can facilitate the customer to adjust the mesh size and move the welding electrode.

Technical Parameters of Wire Mesh Welding Machine:

Model	DX-2000B	DX-2500B
Wire diameter	2.5-6.0mm	2.5-6.0mm
Width of mesh	2000mm	2500mm
Length of mesh	25m	25m
Finished product type	Roll mesh	Roll mesh
Longitudinal wire type	Coil wire	Coil wire
Cross wire type	Pre-cut	Pre-cut
Longitudinal wire distance	50-200mm(adjustable)	50-200mm(adjustable)
Number of welding electrode	40pcs	50pcs
Welding transformer	160KVAx5pcs	160KVAX6pcs
Machine weight	4000kg	4500kg
Machine dimension	9500*2700*1600mm	9500*3200*1600mm
Power supply	120KVA	120KVA
Welding speed	60-75 times per min	60-75 times per min
Method of roll mesh	Automatic	Automatic

Applications of Wire Mesh Welding Machine:

Wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries.

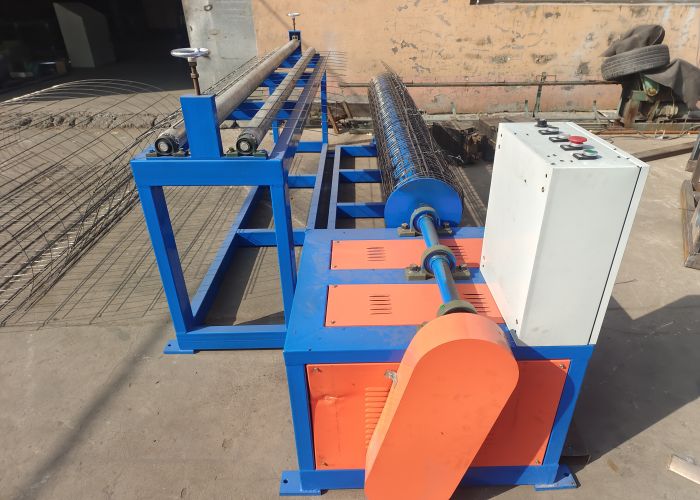

Photos of Wire Mesh Welding Machine:
