    PLC Wire Mesh Welder Width Of Mesh 2.1m Hole Size 1/2 Inch

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-DHW-5
    Certification : CE
    Supply Ability : 10 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    PLC Wire Mesh Welder Width Of Mesh 2.1m Hole Size 1/2 Inch

    Width Of Mesh 2.1m Hole Size 1/2 Inch Welded Wire Mesh Machine


    Introduction of Welded Wire Mesh Machine:


    Automatic wire feeding, suitable for low carbon steel wire,the commonly used wires are galvanized wire, hot-dip galvanized wire, black iron wire.The machine box body has reasonable design, low noise, easy operation and adjustment of welding times.The welding mesh is characterized by flat mesh surface, uniform mesh, firm welding joints,stability and good corrosion resistance.


    Features of Welded Wire Mesh Machine:


    1. Both the longitude wire and cross wire is fed from wire coils automatically.

    2. The raw material is suitable for low-carbon steel wire (black wire) and galvanized wire.

    3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at the same time.

    4. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

    5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.

    6. The mesh roll length can be set by a counter switch on the control panel. (For example, if 25m mesh length, 25mm cross wire space, the number should set 1001.)

    7. The mesh roll length can be set by the control panel.
    8. The width and mesh size can be adjusted, and the dimensional accuracy is high, and can be arbitrarily adjusted within the specified range.
    9. You can produce two rolls or three wire mesh at the same time, just adjust the cutter position.


    Auxiliary Equipment


    1. Mesh repairing table

    2. Mesh repairing machine

    Usage: re-weld the points who was miss machine and to hold the re-weld mesh with misoperation situatiowelding

    3. Bobbin stand-off, 1 set

    4. Wire rolling machine, 1 set


    Technical Parameters of Welded Wire Mesh Machine:


    TypeDX-DHW-1DX-DHW-2DX-DHW-3
    Wire diameter0.4-0.65mm0.65-1.8mm/0.8-2mm1.0-2.2mm/1.2-2.5mm
    Aperture/pitch1/4", 1/2"
    6.25, 12.5mm
    1/2", 1", 2", 3", 4"
    12.5, 25, 50mm
    1", 2", 3", 4"
    25, 50, 75, 100mm
    Mesh widthMax.1m, 1.2mMax.1.2m,1.5m, 2mMax.1.2m, 1.5m, 2m, 2.5m
    Motor2.2kw2.2kw; 4kw4kw; 5.5kw
    Welding speedMax.75 rows/minMax.120-180 rows/minMax.80-120 rows/min
    Transformer50kva*360kva*4;60kva*5, 60kva*770kva/80kva*5/6/7/8
    Weight1.5T2T, 2.5T2T, 2.5T, 3T, 3.5T

    Applications of Welded Wire Mesh Machine:


    Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine protective cover, animal and livestock fence, flower and tree fence, window guard fence, passage fence, poultry cage, home office food basket, paper basket and decoration.

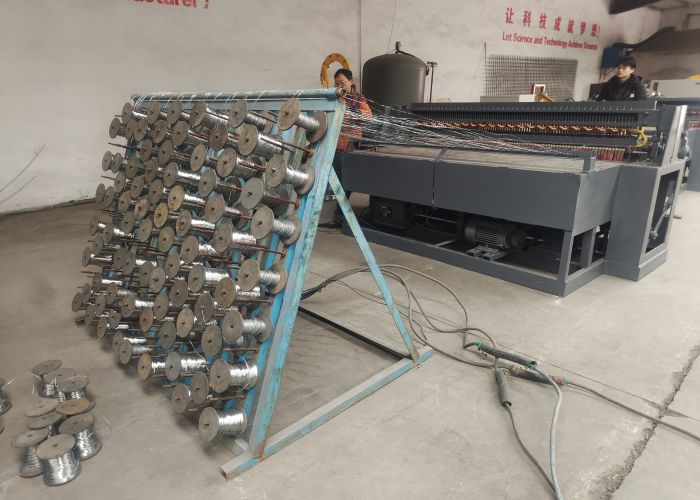

    Photos of Welded Wire Mesh Machine:


    Quality PLC Wire Mesh Welder Width Of Mesh 2.1m Hole Size 1/2 Inch for sale
