Transformer 160kva Mesh Length 45m Wire Mesh Welding Machine In
Roll
Introduction of Wire Mesh Welding Machine In Roll:
1. The wire mesh welding machine,the line wire feeding from coil
automatically,which is more convenient and save labor;
2. The welding transformers is our new model and installed with
water cooling system,which prolong the service life;
3. Our welding pressure adopts mechanical spring,easy to
adjust,which save the cost and maintenance cost is lower than other
pneumatic model;
4. The cross wires are fed from pre-cut,which adopts step motor
driven from the special hopper one by one;
5. Every welding transformer is controlled by single microcomputer
control ,cent-control welding one time pressure ,which is more
intelligentialized.The controller will connect with the touch
screen , and we can set the welding current and welding time on the
touch screen ,which is very convenient .
6. The cross wire testing devices are equipped . When the cross
wire can't suitably fall down or no cross wire, the machine will
stop automatically,greatly avoid the occurrence of unqualified
meshes.
Advantages of Wire Mesh Welding Machine In Roll:
1. Welding electrodes are made of pure copper, durable.
2. Brake motor & planetary reducer connect the principal axis
directly, high stability.
3. Cast water-cooling transformers, high efficiency. Welding degree
is adjusted by PLC.
4. SMC Japan air cylinders & pneumatic parts, machine working more
stable.
5. Panasonic servo motor&planetary reducer for pulling mesh,
more precise.
6.The cable carrier is Igus brand, imported from Germany, very good
quality, not hung down.
Detailed Introduction of Wire Mesh Welding Machine In Roll:

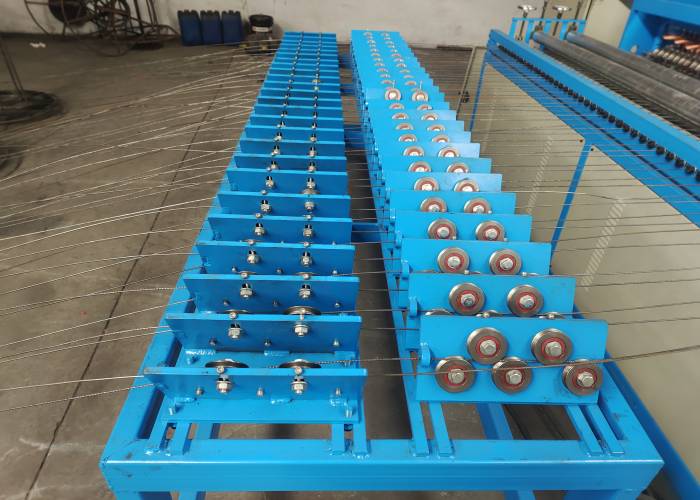

Line wire straightening wheel
Each line wire will pass through the straightening wheel, which can
make the mesh more flat and beautiful.
Connecting copper block
The connection between transformer and electrode uses copper block
instead of soft copper leaf, which has better quality and
conductive effect.
Electrode and copper base
The electrode and copper base are all made of high chromium copper,
which is a special alloy material with wear resistance and high
temperature resistance. Increase the service life of the electrode.
Technical Parameters of Wire Mesh Welding Machine In Roll:
| No. | Item | Specification |
| 1 | Welding Wire Diameter Range | Φ3.0-6.0(mm) |
| 2 | Cross Wire Space | 100-300mm(adjustable) |
| 3 | Line Wire Space | 100-300mm(adjustable) |
| 4 | Mesh Length | 500-30000mm(automatic cutting mesh according to the practical
needs) |
| 5 | Max Mesh Width | 2500mm adjustable |
| 6 | Number of Electrodes | 24/adjustable |
| 7 | Welding Speed | 0-80times/min |
| 8 | Rated Voltage | 380 ±5% 50HZ Three phase or customized |
| 9 | Rated Power | 160KVA*4(Water cooling system) |
| 10 | Main Motor | 4.0KW (Electromagnetic Brake Motor) |
| 11 | Welding Time | 10ms-100ms |
| 12 | Control Way | PLC+Touch Screen |
| 13 | Welding Way | By Control Silicon Control Electric Resistance Weld |
| 14 | Pressure Mode | Adjustable Spring Pressure |
| 15 | Weight | About 3.5T |
| 16 | Overall Dimension | 5100*3200*1700mm |
| 17 | External Power Supply | 380V±5% 50Hz,Three Phase,<=100m from the control cabinet. or
customized |
| 18 | Single-phase Load Area of Power Wire | (Copper Wire)120mm2 |
| 19 | External Power Transformer by Three Times Welding | 150KVA |
| 20 | Cooling System | Clean,neutral to slightly alkaline(ph:7~8)water,flow rate
5.12m3/h,import temperature 25~30ºC. |
Applications of Wire Mesh Welding Machine In Roll:
The wire mesh in roll is widely used in grassland protection,roof
construction, road hardening etc.
