    Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine

    Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine


    Introduction of Reinforced Mesh Welding Machine:

    Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.

    System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. The greatest degree of raw material savings for customers. Improve production efficiency,intelligent management. Welding part can easily to replace, which greatly improves the service life of machinery, maximum reduce the cost.


    Detailed Introduction of Reinforced Mesh Welding Machine:

    1. Longitudinal wire feeding system.
    Wire feeding system can send the steel bars to the welding machine automatically.When the main machine is being welded, the material of the next reinforcing mesh can be placed at the same time.Improved productivity.
    2. Cross wire conveyor system.
    The cross wire conveyor system adopts the invention patent, It can make the cross wire fall in the specified position relatively parallel.
    3. Cross wire feeder.
    The reinforced mesh welding machine is equipped with a cross wire feeder, which can carry 2000 kg of wire at the same time, saving time and increasing production efficiency.
    4. Welding cylinder.
    The welding cylinder is specially customized, with fast and stable action. The most important thing is to prolong the service life to a great extent.
    5. Welding electrode.
    1. The welding electrode is connected to the transformer by single wire connection. The conductive effect is better, the electric energy is used more fully, and the electric energy and cost are saved.
    2. All connecting wires are solid copper plates.
    3. Welding electrodes are made of pure red copper and chromised bronze ,durable,can bu used at least 3-6 months.
    6. Mesh pulling system
    1. The reinforcing mesh conveying system is divided into 6meter and 12meter.
    2. It contains a roller conveyor,which is easy to pack reinforcing mesh and convenient to load truck.
    3. We can design the conveying system length according to the customer's requirements.
    4. It is controlled by servo motor (2kw)&planetary reducer and air cylinders,advanced
    Technical Parameters of Reinforced Mesh Welding Machine:
    Wire diameter6--12mmLongitudinal wire formPre-cut wire
    Weft wire space

    100--300mm

    (adjustable)

    Weft wire formpre-cut wire
    Longitudinal wire space

    100--250mm

    (adjustable)

    Rated voltageCustomized
    Mesh widthMax 2500mmWelding Transformer160KVA X 15PCS
    Welding speed50-- 70 times/minMachine dimension26X 3.7X 2.2m(L*W*H)
    Welding electrodes30 PCSMax. mesh length6m or 12m
    Total weight13.5TPower transformer200KVA
    Production Capacity25-30 tons at 10 hoursManpower3 workers
    Workshop space40mx10m(L*W)Cable240mm2*3pcs(Aluminium cable)
    Electrical brake630APower consumption20KW/Hour
    Distance from power transformer to machine150mTool kitOne

    Applications of Reinforced Mesh Welding Machine:

    Reinforced rebar panel mesh welding machine, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, bridge construction mesh,road mesh, building construction mesh etc.

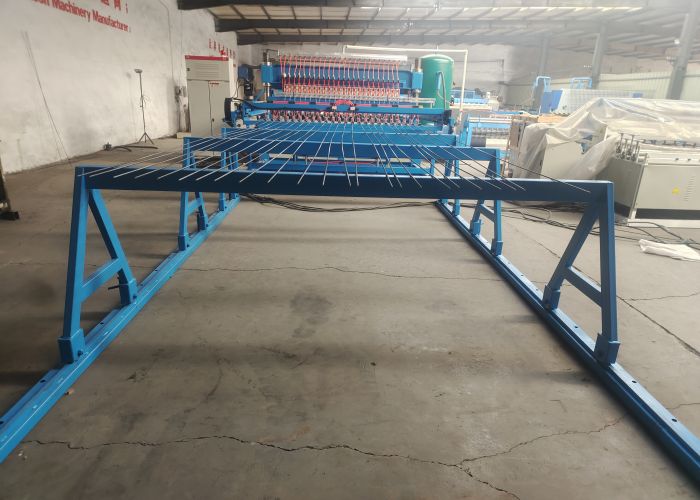

    Photos of Reinforced Mesh Welding Machine:

    Quality Mesh Width 3m Mesh Width 6m Highway PLC Reinforcing Mesh Welding Machine for sale
