Capacity 30T Hole Size 150mm Reinforcement Steel Bar Mesh Welding
Machine
Introduction of Reinforcement Steel Bar Mesh Welding Machine:
The reinforcement steel bar mesh welding machine adopts CNC
synchronous control technology, welding time and sub-control
welding time are composed of PLC digital programming system, input
panel for touch screen or keyboard two, the operation is more
intelligent and rational. The reinforcement steel bar mesh welding
machine adopts a pressing, divided welding, the biggest advantage
of the control is that more than 30 different sizes of mesh between
the warp and the weft can appear on the same mesh surface. The
welding adopts a new high-efficiency water-cooled welding
transformer to expand the range of welding wire diameters.The
reinforcement steel bar mesh welding machine has a high degree of
automation, reduces a lot of manual operation, and can be efficient
and automatic welding mesh.
Features of Reinforcement Steel Bar Mesh Welding Machine:
1. The reinforcement steel bar mesh welding machine each group of
transformers are controlled by a separate microcomputer, a pressure
multiple welding, the biggest advantage of the control is: can
appear on the same mesh between latitude and latitude more than 30
different sizes of holes.
2. The welding electrode head of the welding machine is made of
high-quality chromium pick copper material, long service life,
reduce production costs.
3 The wire feeding method of the welding machine: the diameter wire
adopts artificial threading, automatic wire feeding function.
Accurate position, saving welding waiting time.
4. The reinforcement steel bar mesh welding machine feeding mode:
automatic feeding feed yarn hopper, accurate feeding position.
5. The pulling mesh system of reinforcement steel bar mesh welding
machine: the use of servo motor reciprocating mesh, pneumatic
tightening weft wire, to ensure the accurate position of the mesh.
6. The automatic stacker of reinforcement steel bar mesh welding
mesh machine : automatic mesh conveying mechanism, automatic
stacking, mesh stacker neatly, convenient transportation. Reduce
manpower and material resources.
Line Wire Frame
The straightened wires can be put on the frame. so that wires can
be gripped easily for workers.
Line Wire Feeding Mechanism
The wires will be gripped by gripper and sent to the mesh welding
machine.There is some space between feeding pulley and welder, so
it can realize continuous welding.
Mesh Welding Machine:
30 independent welding units, line wire spacing can be adjusted
infinitely, mesh specification change is more simple and
convenient.
Stacking Mechanism
The meshes are pulled to stacking mechanism, the support beams in
both sides will be opened and meshes fall on the rollers for
transportation.
Transportation Mechanism
The stacked meshes will be conveyed out of the stacking mechanism
for packing and transportation.
Technical Parameters of Reinforcement Steel Bar Mesh Welding
Machine:
| Model | DX-GWC-3000C |
| Line wire space | 100-300mm |
| Cross wire space | 100-300mm |
| Line wire diameter | 5-12mm |
| Cross wire diameter | 5-12mm |
| Max. weld wire diameter | 12+12mm |
| Welding speed | 40-65 times per min |
| Welding pressure | Air cylinder |
| Width of mesh | 3000mm |
| Control system | By PLC |
| Pulling mesh system | By servo motor |
| Machine weight | 15 tons |
Applications of Reinforcement Steel Bar Mesh Welding Machine:
Reinforcement steel bar mesh is a new and energy-saving building
material at present.
Widely used in highways, tunnels, multi-storey and high-rise
buildings, water conservancy dam foundation, sewage treatment ponds
and so on. In the concrete structure, it has the advantages of
improving structural strength, saving steel, saving labor,
convenient transportation, convenient construction, high precision
grid layout, easy specialization, large-scale production, and high
comprehensive cost efficiency.

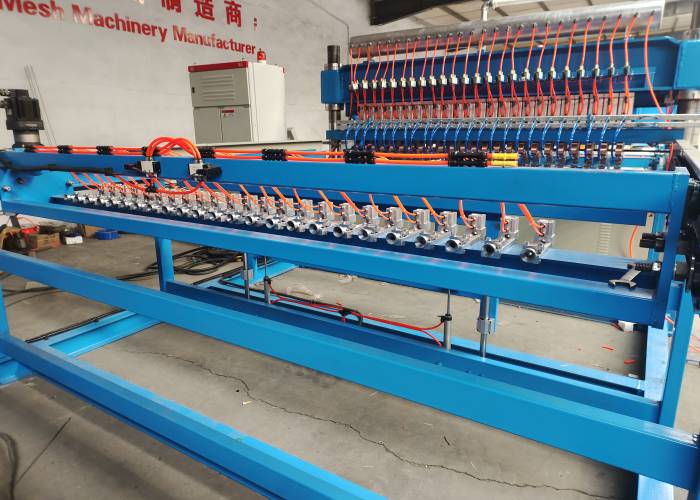

Photos of Reinforcement Steel Bar Mesh Welding Machine:
