Railway Protection Mesh Size 50*200mm 3d Fence Mesh Welding Machine

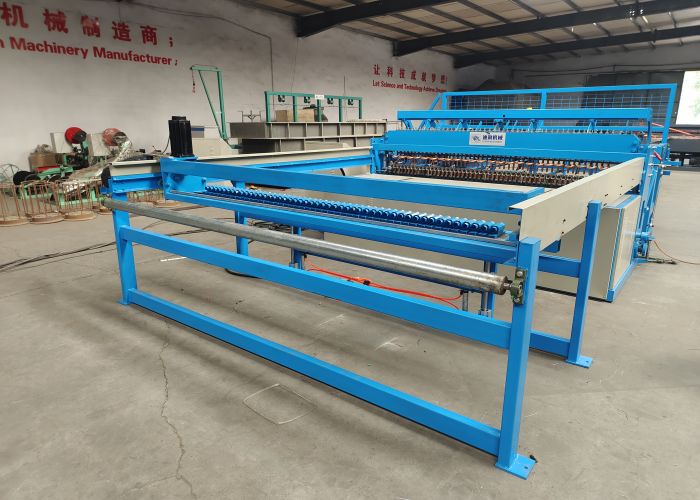

Introduction of Fence Mesh Welding Machine:

Weft wire straightening cut off automatic feed wire by stepping motor, automatic feeding, Warp straightening cut artificial placement, warp with automatic push wire, save time, improve efficiency, pull the net using servo motor and reducer, runway using imported linear guide rail combined with rack, can make the mesh more, diagonal error control within ±2mm. The machine is composed of 3 parts, which are divided into the main machine, the pulling track and the automatic pushing mechanism. Control using PLC programming, touch screen, one-click operation, more intelligent, rationalization.

Feature of Fence Mesh Welding Machine:

Fence mesh welding machine is an advanced mechatronic welding equipment. The biggest advantage is that the diameter of the wire can be adjusted, the mesh size of the weft wire input touch screen can reach the hole distance you achieve, in the welding mesh if you want to make the welding hole distance change, you put the hole distance input computer can reach the hole distance you want, the hole distance can be adjusted at will.

Fence mesh welding machine welded mesh flat, diagonal error is small.

1. The maximum width of the mesh welded by the fence mesh welding machine is 2.5 meters
2. Welding wire diameter is 2.5mm-6mm
3. Welding transformer air self-cooling
4. The welding form is once pressed, divided control welding, diameter wire tray wire feed, or straight bar feed
5. Fence mesh welding machine adopts cycle fine-tuning during welding to reduce welding pollution
6. Welding pressure is adjustable
7. Wire diameter size can be adjusted
8. Weft wire hole distance input computer hole distance automatically change
9. Fence mesh is widely used in railway, highway, bridge high-rise building, stadium, stadium, airport, workshop isolation and other mesh welding, can be customized according to customer needs.

Advantages of Fence mesh welding machine:

1. The line wire is fed in coils.This reduce the material feeding frequency.
