    Transformer 160kva Fence Mesh Welding Machine For Mesh Width 2.5m

    Ask Lasest Price
    Brand Name : DIXUN
    Model Number : DX-GWCD-2500
    Certification : CE
    Supply Ability : 5 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Transformer 160kva Fence Mesh Welding Machine For Mesh Width 2.5m

    Welding Transformer 160KVA Width Of Mesh 2.5m Fence Mesh Welding Machine


    Introduction of Fence Mesh Welding Machine:


    Fence mesh welding machine belongs to automatic CNC wire mesh making machine. The machine is equipped with servo motor and PLC control.This can ensure stable operation of the machine, accurate size, flat mesh surface and more beautiful.It is automatic welding and automatic cutting.It can make mesh in panel.


    Feature of Fence Mesh Welding Machine:


    Control cabinet
    You can adjust the welding speed and welding current of the machine through the function of the control cabinet. The visual touch screen is easy for the worker to operate the machine.
    Wire hopper
    Put bundles of cross wire into the wire hopper, and the cross wire will automatically fall to the welding position.
    Welding transformer
    New energy-saving welding transformer. Fully enclosed, pure copper core. Ensure that each welding point is firmly welded,not easy to enter welding slag, and has a long service life.
    Welding electrode
    The welding electrode is made of high-quality copper. Wear resistance, long service life. Reduce the replacement cost of wearing parts.
    Copper bar
    The connecting wire between the lower electrode and the transformer adopts copper bar instead of copper wire, which has good conductivity.Copper bar is more durable and easy to adjust.
    Advantages of Fence mesh welding machine:

    1. The line wire is fed in coils.This reduce the material feeding frequency.

    2. The cross wire is precut and falls automatically in the wire hopper.
    3. Adopt new energy-saving welding transformer. Fully enclosed, pure copper core. Ensure that each welding point is firmly welded, not easy to enter welding slag, and has a long service life.
    4. The machine adopts servo motor to push the mesh finished welding.The pushing speed is even to ensure the diagonal symmetry of the mesh panel.
    5. The control cabinet is equipped with visual touch screen. Easy for operation.
    Technical Parameters of Fence Mesh Welding Machine:
    ModelDX-GWCD-2500
    Wire diameter2.5-6.0mm
    Welding speed75 times per min
    Line wire space50-200mm
    Cross wire space50-200mm
    Length of mesh1-4m
    Line wire typePre-cut wire
    Cross wire typePre-cut wire
    Pulling meshBy servo motor
    Loading capacity of cross wire hopper100kg
    Applications of Fence Mesh Welding Machine:

    Fence is widely used in municipal engineering, roads, factories, development zones, stadiums, garden squares and other places of security protection and decoration. Its product shape is beautiful, and it is firmly installed, corrosion resistance is good, is a good choice to beautify the urban environment.

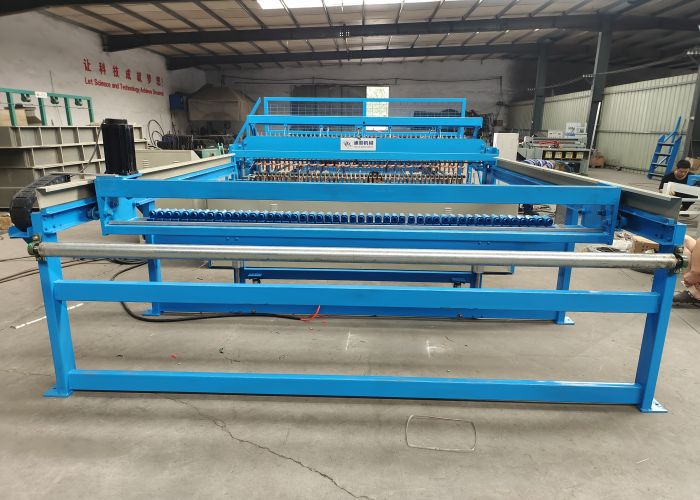

    Photos of Fence Mesh Welding Machine:


    Quality Transformer 160kva Fence Mesh Welding Machine For Mesh Width 2.5m for sale
